Features

Repairing Your Car: The CV Puller is a driveshaft puller and CV joint remover that allows you to crimp clamps on the driveshaft axle boots and rebuild the front half shaft.

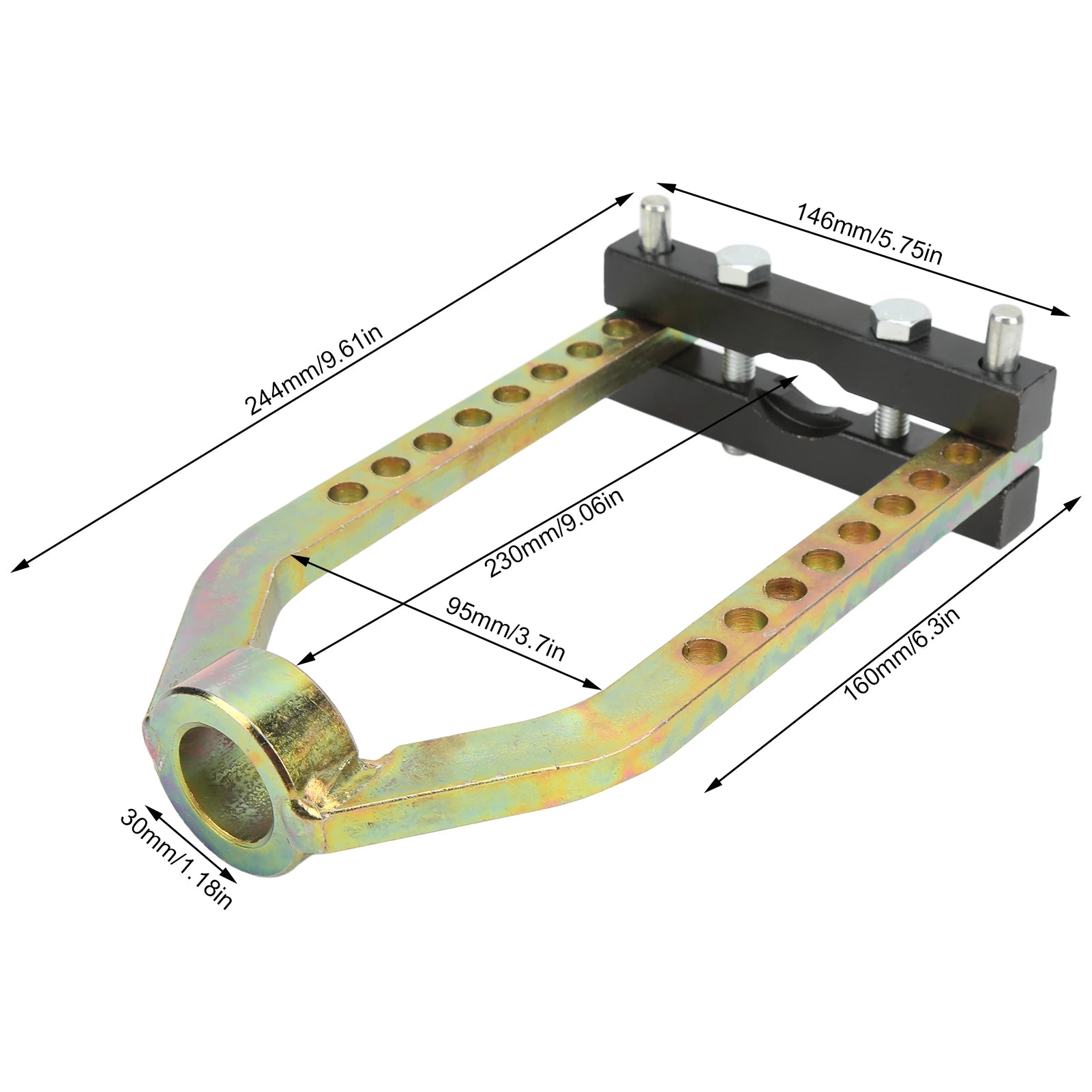

CVJ Axle Remover Dimensions: The overall dimension of propshaft separator tool is 9.61in x 5.75in (24.4cm x 14.6cm) and the maximum CV joint diameter is 3.8in (95mm).

Fits Most Vehicles: Includes 9 holes for full adjustment to fit different length joint assemblies on most cars, fits most vehicles equipped with constant velocity U‑joints.

Adjustment Diameter: 0.7in (17mm) clamp rod minimum shaft diameter, for CV joint shafts with 0.7in (17mm) groove diameter or larger, where the rubber boot is clamped to the shaft.

Recommendation: We recommend a minimum shaft diameter of 18mm/0.71in or 19mm/0.75in to ensure a good bite on the shaft (requires retaining ring, not available for smooth shafts).

Safe to Use: Hands free operation allows you to easily release retaining circlips, reducing the risk of damage to joints, transmission or other components, collar opening to accommodate shaft and allow it to pass through(measure your application to ensure precise fit).

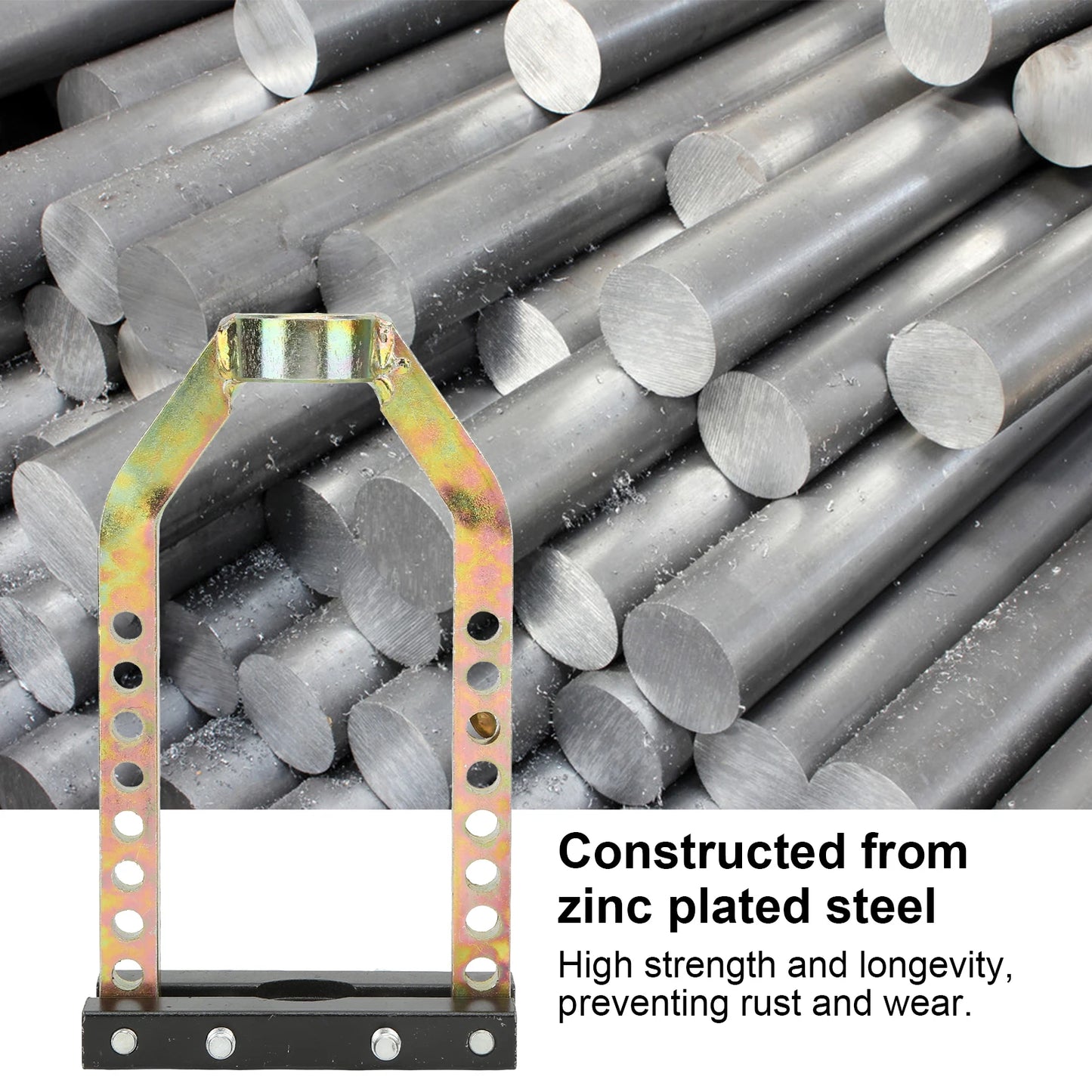

Durable Material: The body is made of zinc plated steel and the bars are made of black oxide coated steel for maximum strength and longevity, preventing rust and wear.

Specification

Item Type: CV Joint Puller Tool

Material: Zinc Plated Steel

Application: Quickly remove the constant velocity joint from the drive shaft without damaging the joint, and free both hands to release the retaining circlip. Save labor time

Maximum CVJ Diameter: Approx. 95mm/3.7in

Application: Suitable for most vehicles

About the CV Joint Removal Tool:

CV joints (CVJ) ensure that the wheels on your vehicle turn at a constant velocity, but a worn CVJ produces a clicking noise when the car turns and can make conditions worse.

Instead of wailing on the CV joint in efforts to remove it, the CVJ Universal Puller is a specialty tool that allows for simple removal.Quickly removes the CV joint from the drive shaft without damaging the joint and keeps hands free for releasing retaining circlip

FITS YOUR VEHICLE

It has a 0.7-inch (17mm) clamping bar minimum shaft diameter and includes 9 clamp holes to allow full adjustment that suits most vehicles with constant velocity U-joints.

EASY TO USE

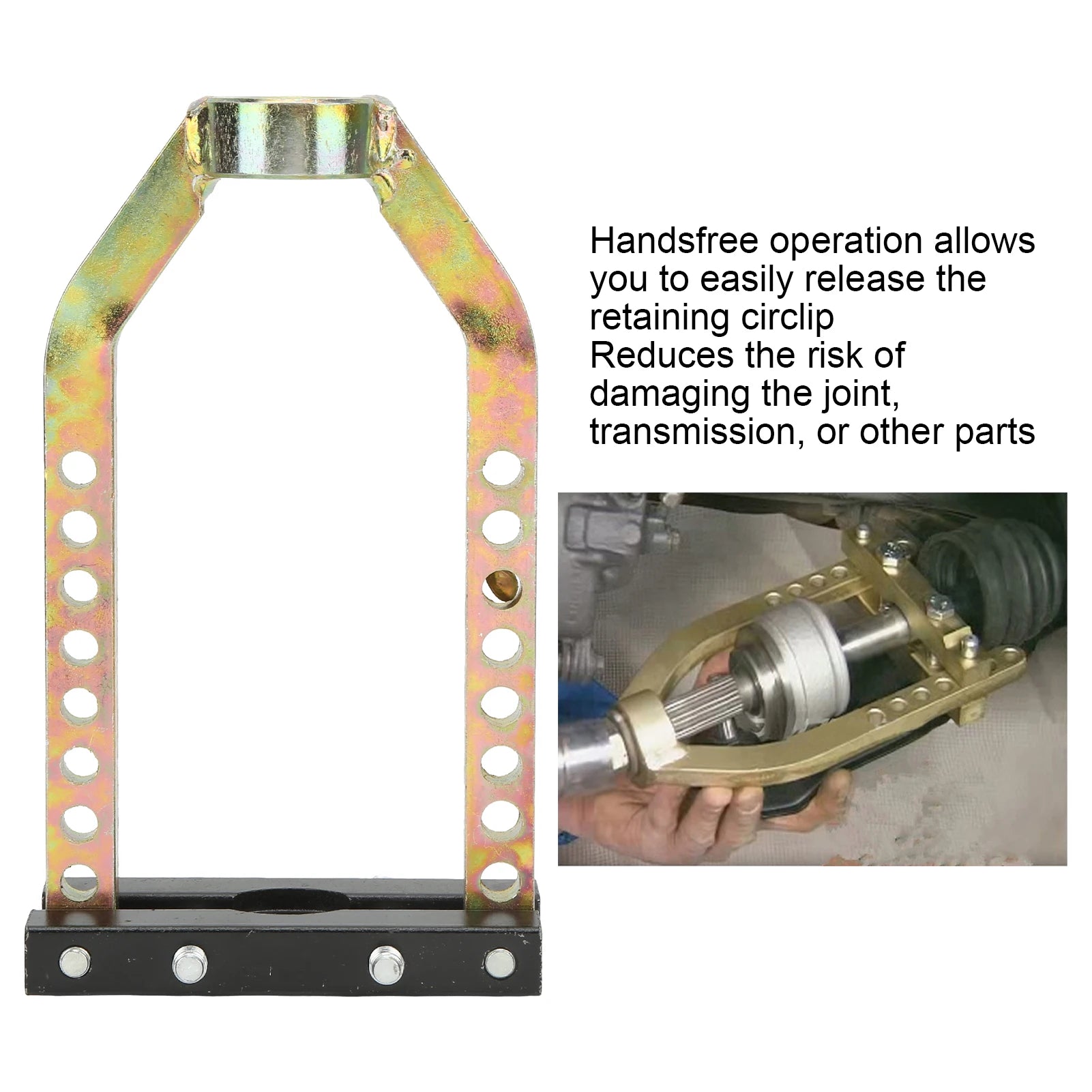

This tool allows for handsfree operation, so you can easily release the retaining circlip.CV joint puller reduces the risk of damaging the joint, transmission, or other parts

BUILT TO LAST

The body of this unit is made of zinc-plated steel while the bar is made of black-oxide steel for strength and longevity. It also reduces the risk of damaging the joint, transmission, and other parts.

Package List

1 x Propshaft Separator Tool
