SPECIFICATIONS

Brand Name: MUCAR

Certification: RoHS,FCC,CE

Communication Interface: OBD-II,Bluetooth

Display Resolution: 1280*800

Electronic: Yes

External Testing Certification: ce

Hardware Version: 2025

Hign-concerned Chemical: None

Is Batteries Included: Yes

Item Type: Engine Analyzer

Item Weight: 1.7

Material: abs metal

Model Name: MUCAR 892BT

OEM NO.: OTHER

Origin: Mainland China

Software Update: Yes

Software Version: NEW

Special Features: Bluetooth,Wifi

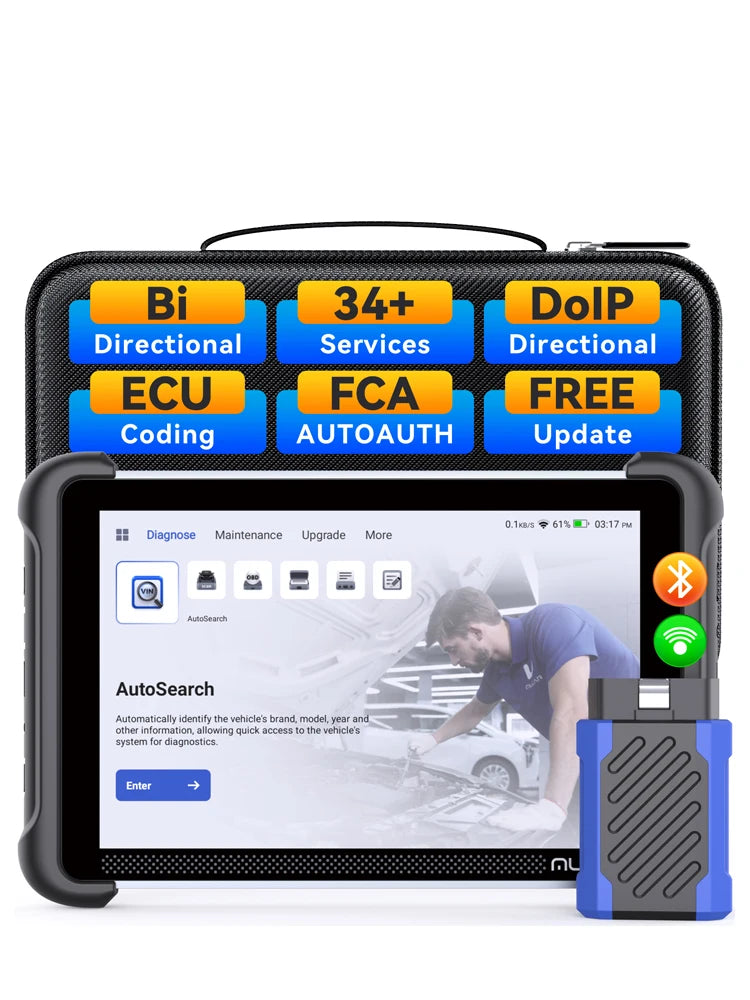

🚙MUCAR Newest Professional OBD2 Car Diagnostic Tool --- MUCAR 892BT

28 Language & 150+ Car Brand VEHICLE COVERAGE

English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese Traditional, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Swedish, Danish, Persian, Serbian, Vietnamese, Bulgarian

35 MAINTENANCE SERVICES

Performs 34 comprehensive service functions including oil reset, EPB, SAS, DPF, Throttle, BMS, ABS Bleed, injector coding, key programming, Windows Calibration, Seats Calibration, GearBox Learn, Coolant Bleed, Language Change, Stop/Start Reset, A/F Reset, etc.

SUPPORT CAN FD/DOIP PROTOCOLS

Access new communication protocols of CANFD (cover for GM 2021-2024) and DOIP (for 2018-2024 chrysler/Dodge Ram/F,iat/Alfa Romeo/Je.ep).

FCA AUTOAUTH FUNCTION

MUCAR 892BT Automotive Diagnostic Scanner supports access to the Security Gateway Module on 2018-2024 chrysler/Dodge Ram/F,iat/Alfa Romeo/Je.ep vehicles so that diagnostic tools can clear codes, run bi-directional active tests, drive, relearn and even IMMO passwords Key programming (PIN extraction and writing), ECU encoding, initialization, ADAS calibration assistance, etc.

Note: FCA account registration is required.

MUAI

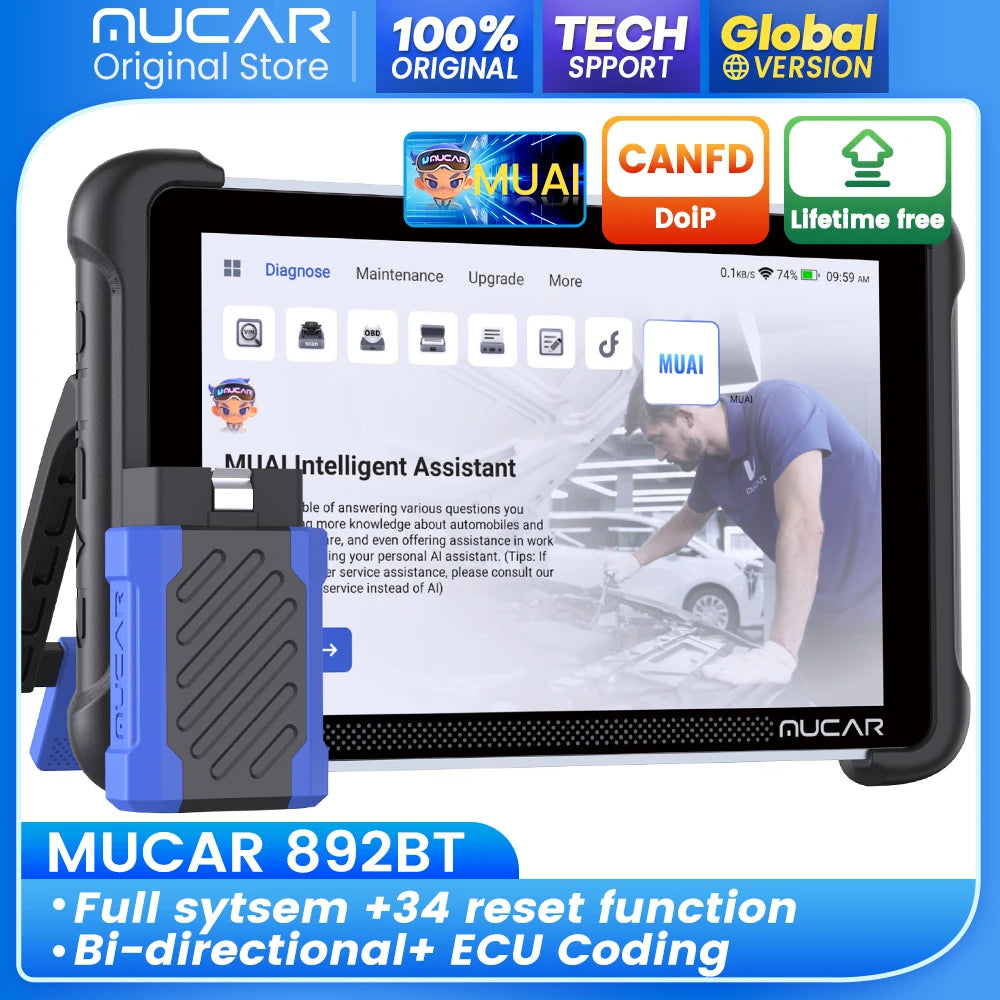

MUAl is a new generation of artificial intelligence system built with the advanced DeepSeek big model as the core engine. MUAI is not only a general question answering AI, but also an intelligent technology platform that deeply integrates vertical domain expertise, providing users with multi-dimensional, high-precision, industrial grade technical support services. It is deeply rooted in the field of automotive diagnosis and maintenance and demonstrates strong technical depth and engineering capabilities.

Intelligent report generation:

① Automated diagnostic report analysis and generation: Understand and extract the core data of diagnostic instrument reports provided by users, conduct intelligent analysis and induction, and output comprehensive diagnostic analysis reports with clear structure and rigorous technology, greatly improving information processing efficiency and decision-making basis quality

Full System Diagnostic Lifetime free

"With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

* Examinate your car like a professional mechanical technician

*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;

*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;

*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;

*The active test used to access vehicle-specific subsystem and component tests."

35 Reset Function Lifetime free update

*Not all vehicles support all reset functions. Please send vehicle model and year to customer service for inquiry.

1.Oil Reset

If the oil maintenance light is on, the car needs to be maintained. After the maintenance, the driving time and other data should be reset to zero, so that the maintenance light will be turned off, and the car system will enable a new maintenance cycle.

2.Brake Reset

1. When the brake is used to a certain thickness, the brake sensor line will be worn, and the brake pad sensor line will send a signal to the car computer to prompt the replacement of the brake pad. After replacing the brake pads, the brake needs to be reset, otherwise the car will still alarm.

2. Need to do the reset situation:

a. replace the brake pad and brake pad wear induction line;

b. brake pad indicator light on;

c. brake pad sensor line short-circuit repair;

d. After replacing the servomotor

3.BMS battery reset

For a vehicle with the battery management function, if the battery status is detected as faulty (aging or damaged), the fault code will saved in the ECU. After replacing the battery and running "BMS Reset", it can delete the fault code and re-match, based on the relevant information of the existing battery as the standard, let the monitoring unit monitor. Avoid false positives from instrument error messages

4.DPF(Diesel Particulate Filter) Regeneration

Diesel Particulate Filter in the working process, particles will accumulate in the filter, when it reaches a certain value, it will lead to engine power and economic performance decline, must be removed in time to ensure that DPF continues to work normally.

5.SAS Steering Angel Reset

After the vehicle is disassembled or replaced with parts related to the steering function, the steering Angle learning function needs to be performed.

6.TPMS Tire Pressure Reset

only applicable to vehicles without a tire pressure sensors.

if the tire pressure is too low or air leaking, replacing or installing tire pressure monitoring equipment, replacing tires, tire pressure sensor damage, and cars with tire pressure monitoring function in the case of tire transposition etc,.Tire pressure reset is required after vehicle maintenance and turn off the tire pressure fault indicator light.

7.IMMO Key matching

When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.

8.ABS Bleeding

In the case of replacement of ABS system, ABS pump, brake pump, brake line and brake fluid, it is necessary to bleeding the ABS system through the ABS bleeding function.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

When the body height sensor or control module in the air suspension system is replaced, or the car level is wrong, the vehicle needs to perform this function to adjust the body height sensor for level calibration

11.Gearbox (Transmission )Reset

When the transmission parts wear and aging become serious, the adaptive learning of the control unit does not work, and the parts need to be repaired and replaced, then the automatic transmission control unit needs to be forced to learn.

12.AFS Headlamp Reset

This function can initialize the adaptive headlight system. The adaptive headlight system can decide whether to automatically turn on the headlights according to the ambient light intensity, and monitor the vehicle's driving speed, body attitude, etc., and timely adjust the lighting Angle of the headlights. When replacing a new headlight, headlight automatic motor, or there is a fault code that is not set by the headlight, it is necessary to perform headlight matching features.

13.Injector Coding

After replacing the ECU or injector, each cylinder injector needs to be coded to confirm or recode. So that the cylinder can better identify each cylinder injector, accurate control of fuel injection.

14.ETS Learning(throttle matching)

Need to perform throttle matching: Replace the electronic control unit, power off the electronic control unit, replace the electronic throttle assembly, replace or disassemble the intake port, clean the throttle.

15.Gear Learning

Gear learning is required when replacing the engine ECU, crankshaft position sensor, crankshaft flywheel, and fault code that the gear has not learned,it is necessary to gear learning.

16.EGR Self-Learning

If the EGR fails, the engine/EPC fault indicator light of the vehicle instrument will light up, and the EGR self-learning function can turn off the fault indicator light after cleaning or replacing the EGR valve.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car adblue) is replaced or filled up, Turn off the adblue fault indicator light by adblue reset.

19.Airbag Reset

this function is only available for some models, please consult the seller

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before bleeding the coolant system. Electronic water pumping systems are commonly found in BMW models.

21.Tyre modification

Tire size parameter setting after tire modification or replacement.

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

24.odometer read

This function is only used to read the actual mileage and does not support mileage modification or zeroing.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

29.ECU Reset

After performing the ECU coding, some ECUs may not display the new code and will need to run this function to display the correct code.

30.Clutch Matching

This function is used to learn the engagement point of the clutch at which the engine torque is transmitted to the gearbox. To be carried out after replacing the control unit, replacing/removing the gearbox or replacing the clutch.

31.Rainfall Light Sensor

The rain sensor is used to adjust the wiping frequency and the light sensor adjusts the light intensity of the automatic headlights depending on the ambient light and darkness.After replacing the windscreen or the sensor, the rain/driving light sensor must be initialised. With this service function,initialisation performs an adjustment of the rain/driving light sensor.

32.FRM Matching

This function resets the FRM control unit (installed in BMW and MINI vehicles). The reset clears fixed faults in the footwell module related to a short circult of the lights.

33.Turbocharging Matching

For learning after replacement of turbocharger system components or resetting the turbocharger learning value.

34.Gateway Module Data Calibration

After replacing the gateway control unit, there may be a VIN inconsistency, so the VIN needs to be changed.

35.OBD Check

By reading the mileage data of various systems of the vehicle, the vehicle's driving mileage can be comprehensively determined.

Support ECU Coding :

The Coding function is used to re-flash the vehicle control modules.It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts;Provide solutions for the issues of Drivability,Fuel Efficiency,Power Loss,Fault Codes,Durability of Mechanical Parts etc.;Brake the limitations and restrictions;make full use of the car hidden features,like change the chimes on car,set how many times the one-touch signal flickers for one touch,remember settings for Start/Stop systems,and more.

Support Active Test(BI-Directional Control) :

MUCAR 892BT is a bi-directional scan tool with ECU codding ,allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle's controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That’s helpful for DIY mechanics, speeding up the troubleshooting process when it’s time to make repairs.Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle's related actuators

If the actuator is normal,without using the vehicle's controls,to get a significant boost in effectiveness:

[Turn on the radiator fan|Modulate the throttle|Open/close windows|Operate mirrors|Turn on/off the lights|Turn on/off the sound horn|Test door lock …]

>>Support CANFD protocol

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

GM: CANFD models

[2021][Chevrolet][Onix] CANFD6&14

[2021][Chevrolet][Tracker] CANFD6&14

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] CANFD6&14

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

[2021][Chevrolet][Onix] All systems

[2021][Chevrolet][Tracker] All systems

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] All systems

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

>>Support DoIP

With Diagnostics over DoIP, Diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes MUCAR 892BT save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications.

>>Support FCA

Visit THINKCAR official site Register you shop & techsFull access to FCA SGW

MUCAR 892BT

Compatile with 2018-2024 chrysler/Dodge Ram/F,iat/Alfa Romeo/Je.ep

>>COVER 99% MODELS WORLDWIDE

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

4 IN 1 Scientific Data Management:

1.Live Data Stream Graph&Record Data&Diagnosis Record Playback&Print Report

2.The professional vehicle scanner tool can scientific graph data,record data,play back data,freeze frame,and print reports.

3.In the real-time diagnosis process,important diagnosis information can be instantly stored in the memory,including reading of fault codes and frozen frames and real-time data streams.

4.After real-time diagnosis is completed,Diagnosis function record playback,the diagnosis information and process previously saved in the memory can be replayed to facilitate the analysis of various data information.

5.One-click generation of a diagnosis report after diagnosis will help users quickly solve problems,avoid blind maintenance, and save money/time.
