T-MOTOR AS2814 2-4S KV900 KV1050 KV1200 KV2000 Long Shaft 3D F3A Airplane Power
T-MOTOR AS2814 2-4S KV900 KV1050 KV1200 KV2000 Long Shaft 3D F3A Airplane Power
SPECIFICATIONS
Brand Name: T-MOTOR
For Vehicle Type: Airplanes
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Origin: Mainland China
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Test Item |
Long Shaft KV900 |
Weight (Incl. Cable) |
110g |

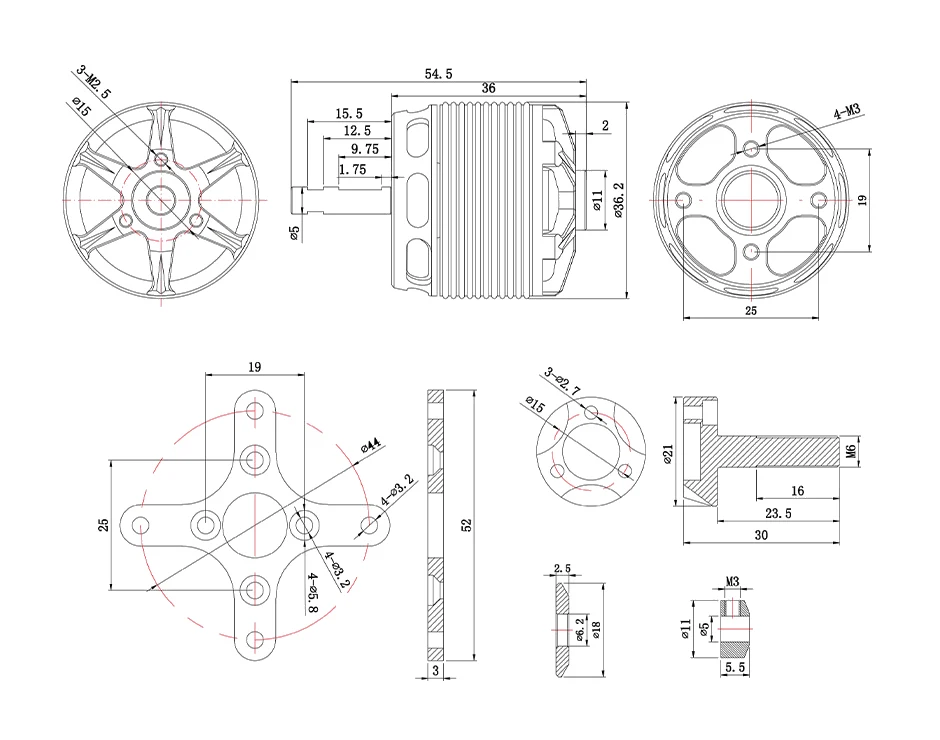

Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
43.5mΩ |
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
Idle Current(10V) |
1.35A |
Peak Current(180s) |
37A |
Max. Power(180s) |
553W |
Recommendation |
/ |
Test Item |
Long Shaft KV1050 |
Weight (Incl. Cable) |
112g |
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
34.6mΩ |
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
Idle Current(10V) |
1.35A |
Peak Current(180s) |
49A |
Max. Power(180s) |
718W |
Recommendation |
/ |
Test Item |
Long Shaft KV1200 |
Weight (Incl. Cable) |
112g |
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
25.2mΩ |
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
Idle Current(10V) |
2.21A |
Peak Current(180s) |
61A |
Max. Power(180s) |
885W |
Recommendation |
/ |
Test Item |
Long Shaft KV2000 |
Weight (Incl. Cable) |
116g |
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
11mΩ |
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
2-3S |
Idle Current(10V) |
4.5A |
Peak Current(180s) |
42A |
Max. Power(180s) |
441W |
Recommendation |
/ |
