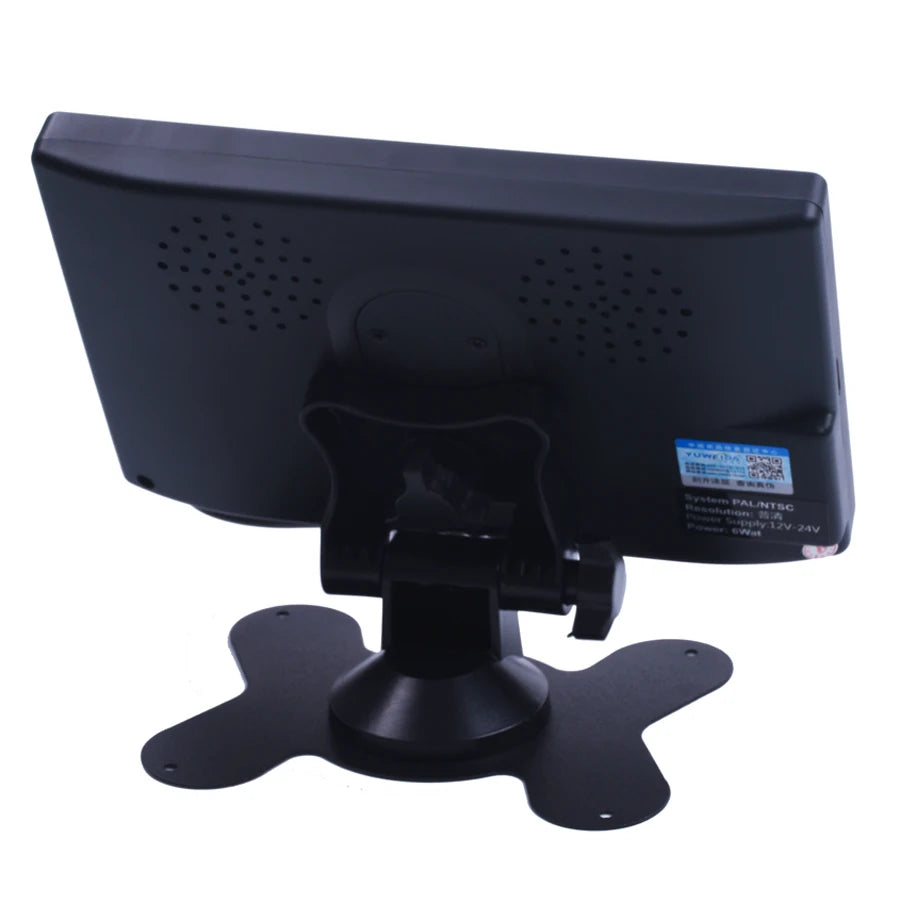

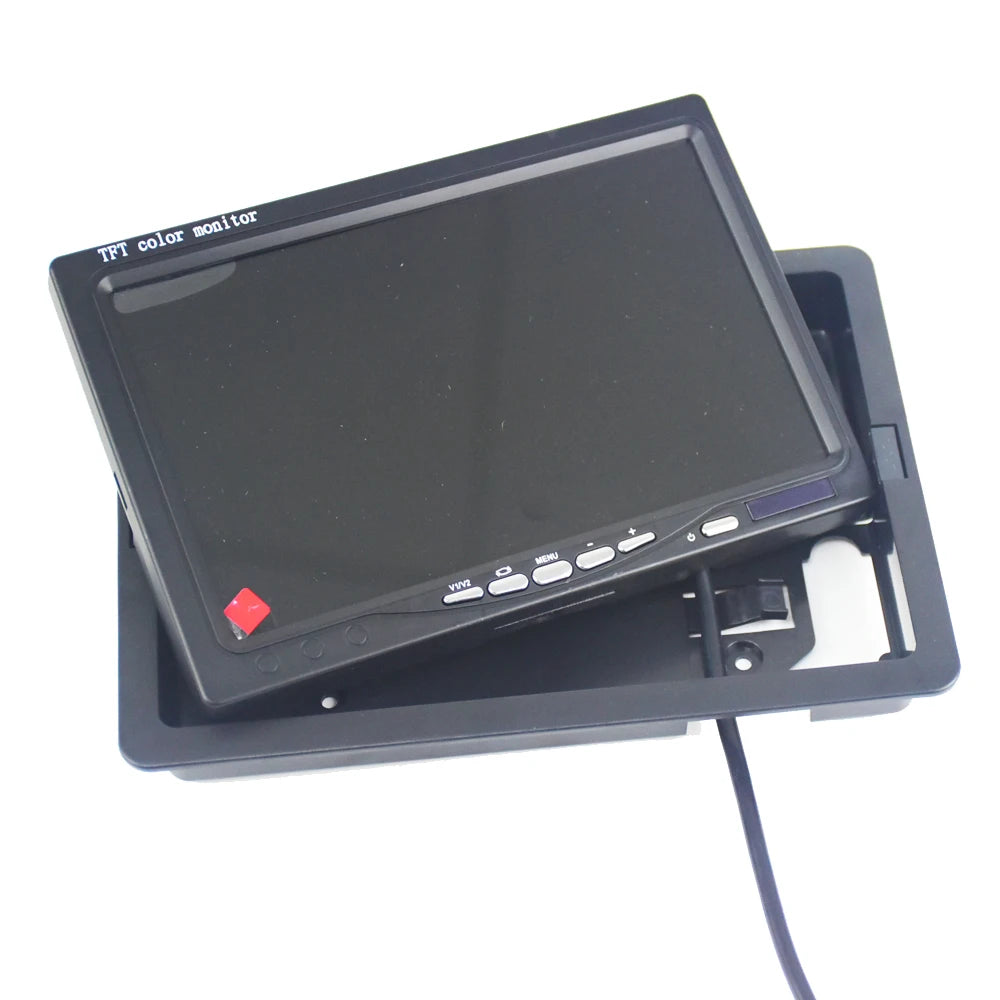

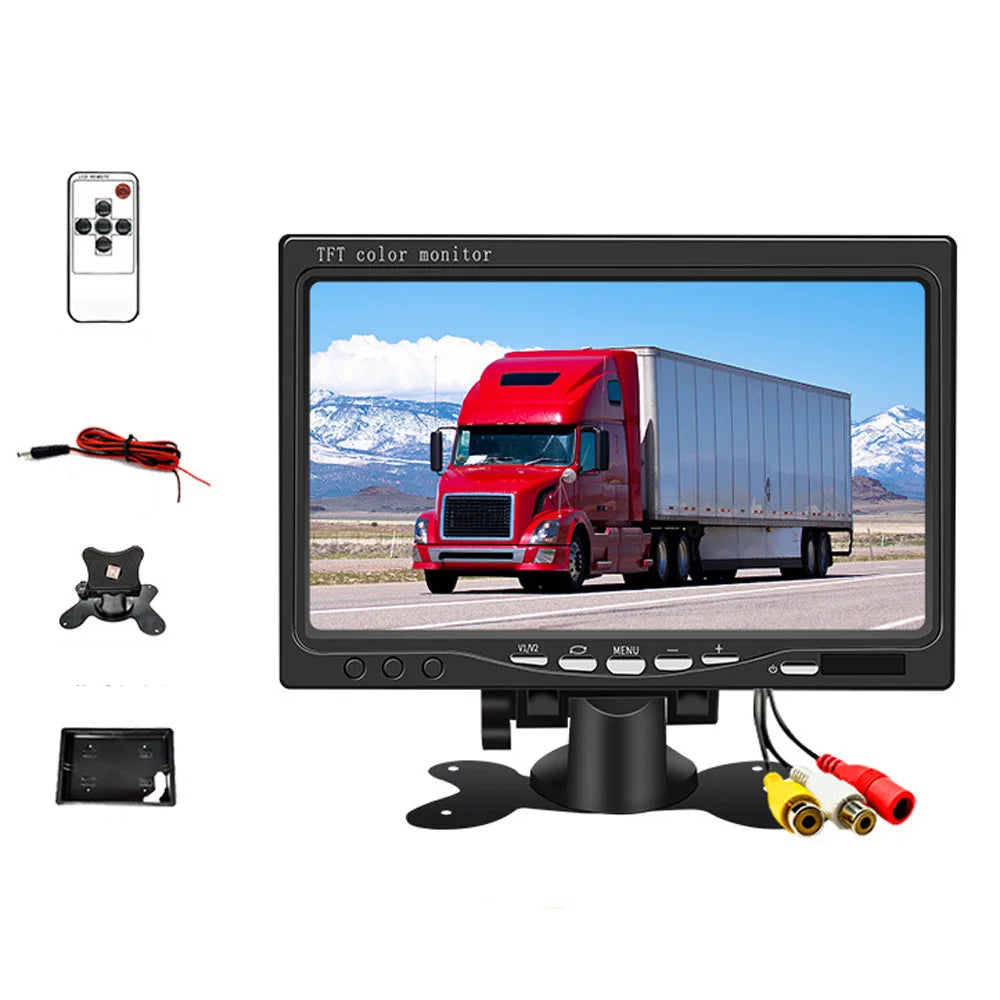

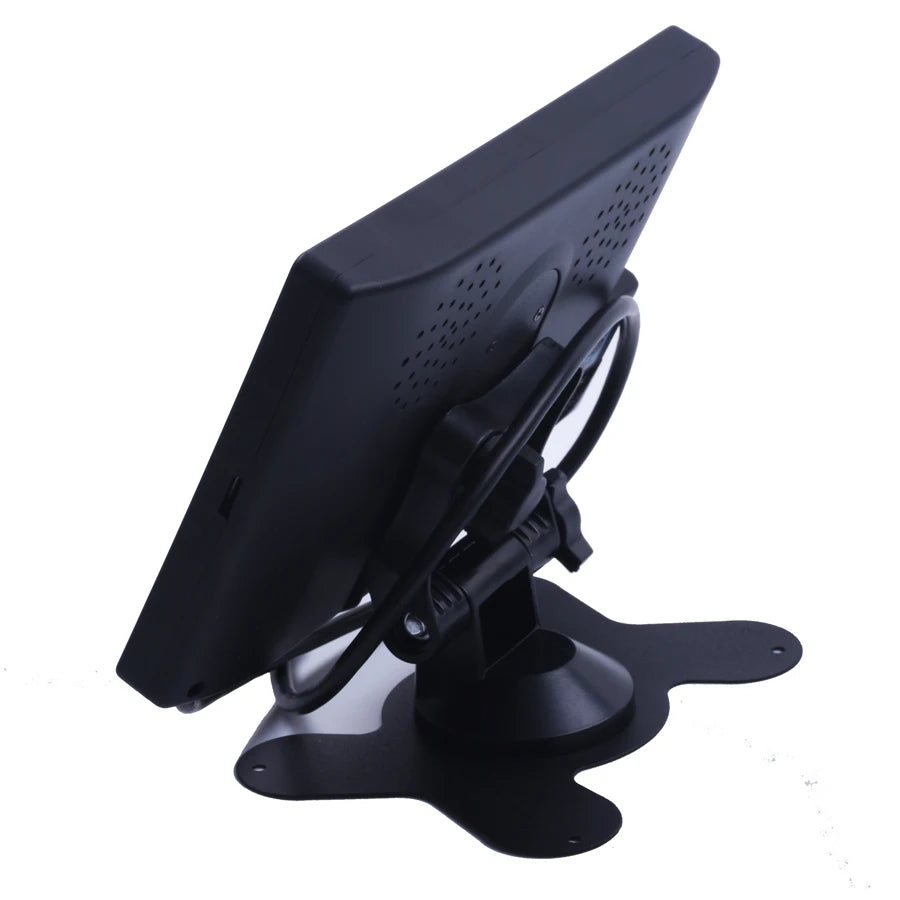

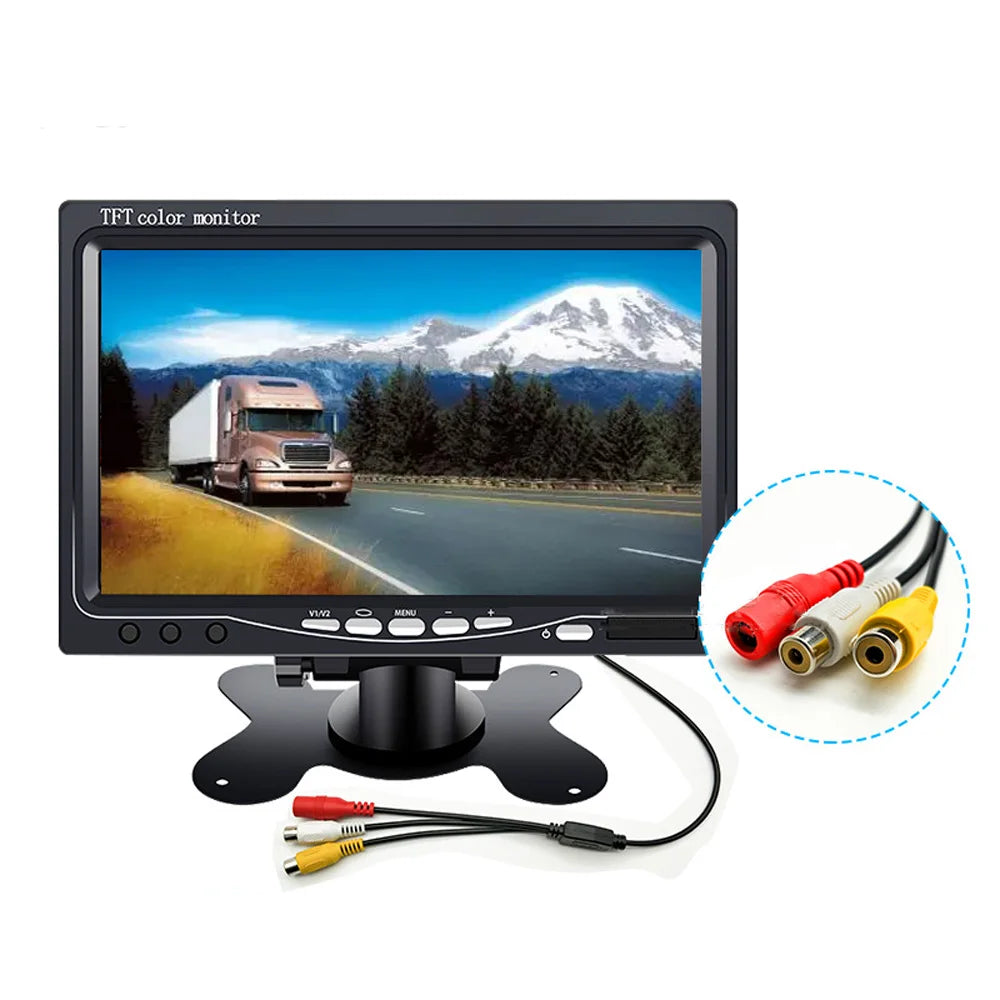

7 Inch Color TFT LCD DC 12V Car Monitor Rear View Headrest Display With 2 Channels Video Input For DVD VCD Reversing Camera

$40.50 USD

~~$81.00 USD~~ $40.50 USD

Sale Sold out

Default Title Default Title

SPECIFICATIONS

Brand Name: Auto-Partner

Display Size: 7"

Hign-concerned Chemical: None

Item Size: 180.00*118.00*15.00mm

Item Type: Car Monitors

Item Weight: 244

Material: ABS

Model Name: 98476

Origin: Mainland China

Placement: In-Dash

Resolution: 800x480

Features:

1. 7 inch LCD screen, 800 x 480 pixel, vivid color

2. Save reversing time, stable system and working performance

3. DC 12V input, easy installation, widely used for various vehicles

4. Suitable for cold vehicle whose power supply voltage is not stable

5. Strong anti-interference, built in overheating over-current protection function

6. Reversing priority & automatic wake-up function, automatically switches to reverse picture at any state and back to the original state after reversing is completed

7. 2 channels video input(AV1:DVD/camera video signal, AV2: the reversing signal)

8. Can manually choose get off / reverse picture on the display screen

Function of keys:

- "V1/V2":AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture

- "MENU":Press the key can circularly open menu

- "-": Select the down regulating parameters in the menu

- "+": Select the up regulating parameters in the menu

- "POWER": On / Off

Specifications:

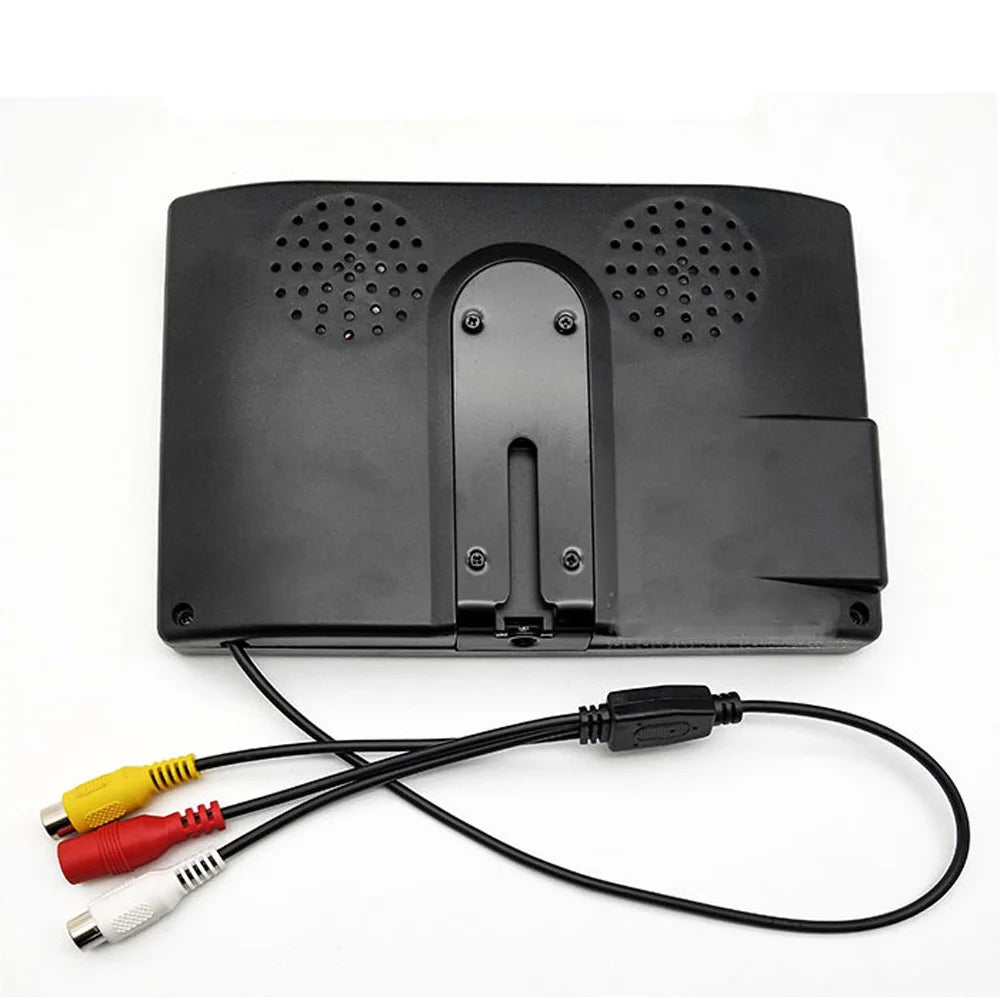

Connection Method: Red wire is connected to the +12V DC, black wire to the -12(GND), blue wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)

Screen Size: 7 inches

Display Component: Color TFT LCD

Screen Ratio: 16:9 4:3 adjustable

Pixel: 800 x 480

System: PAL / NTSC system(auto switch)

Contrast Ratio: 350:1

Housing Material: ABS

Power Supply: DC 12V /24V

Power: 6W

Color: Black

Product Size: 180mm x 118mm x 15mm

Net Weight: 244g
