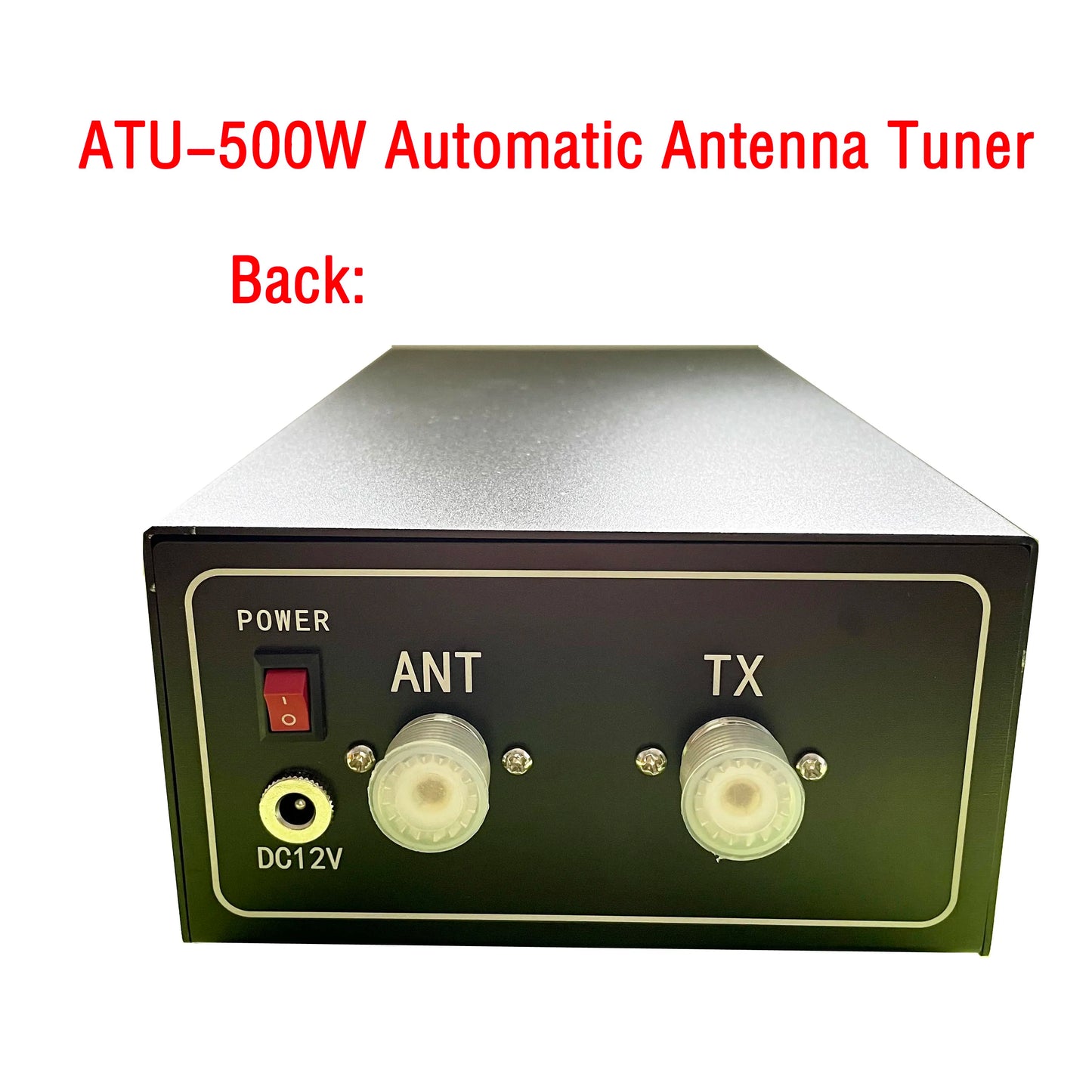

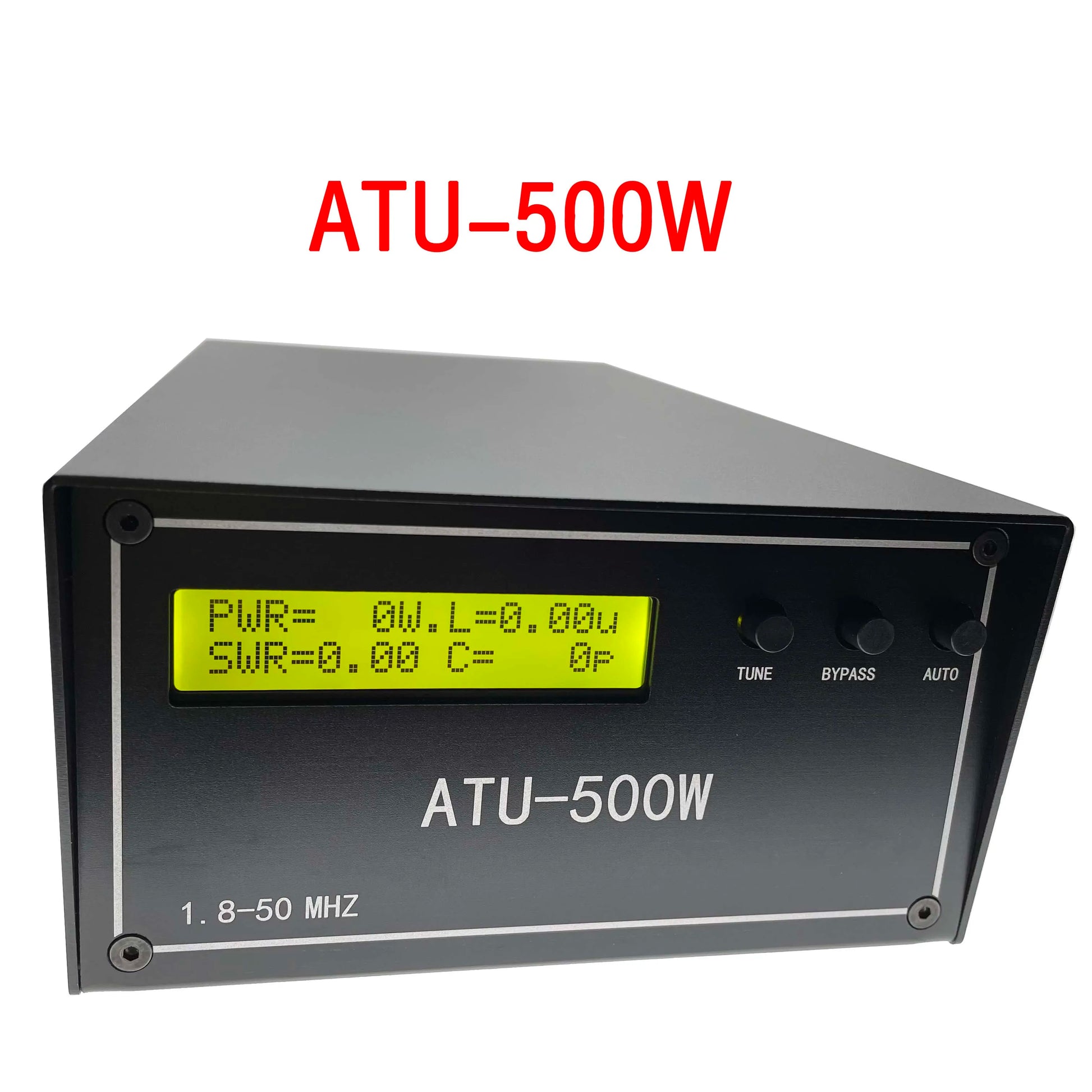

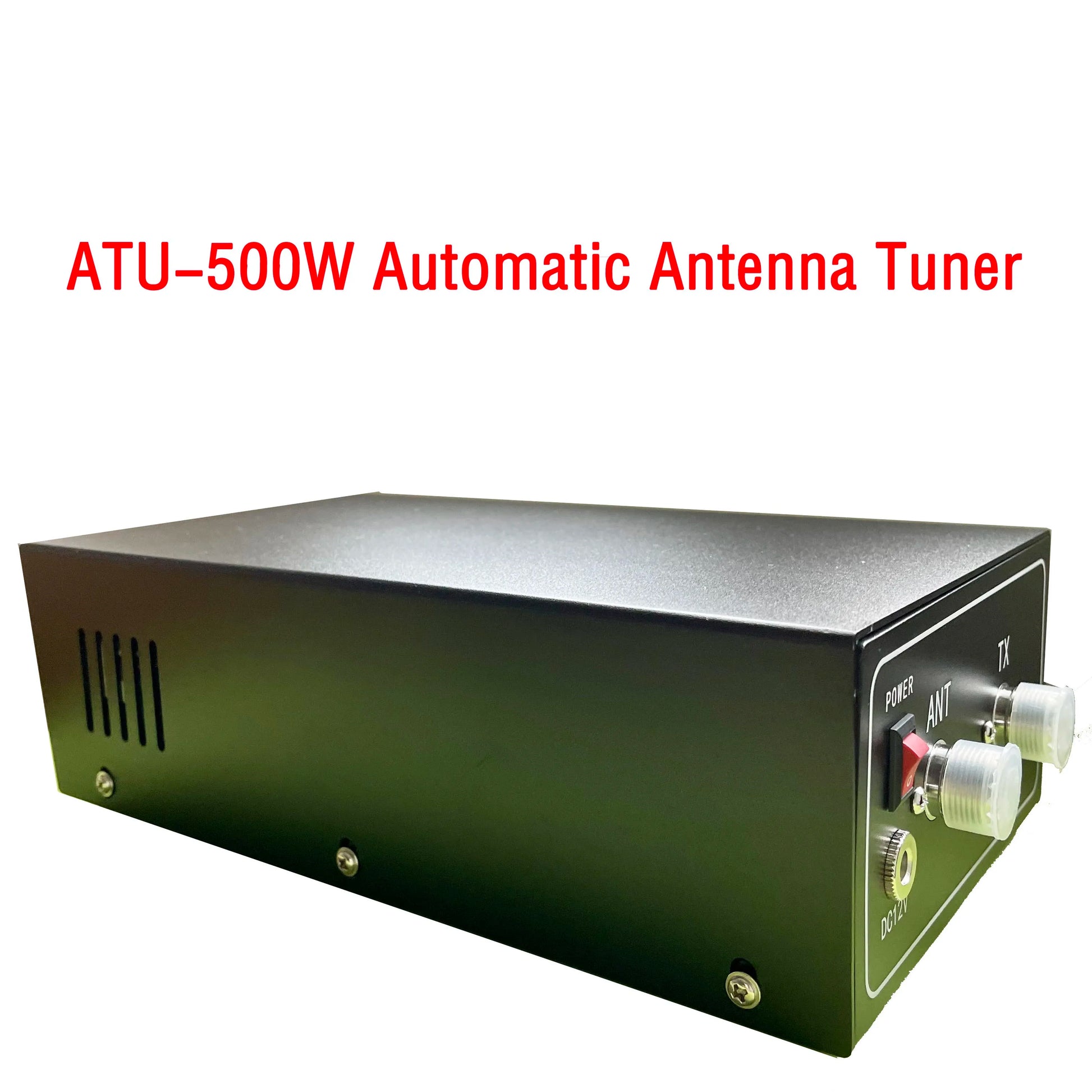

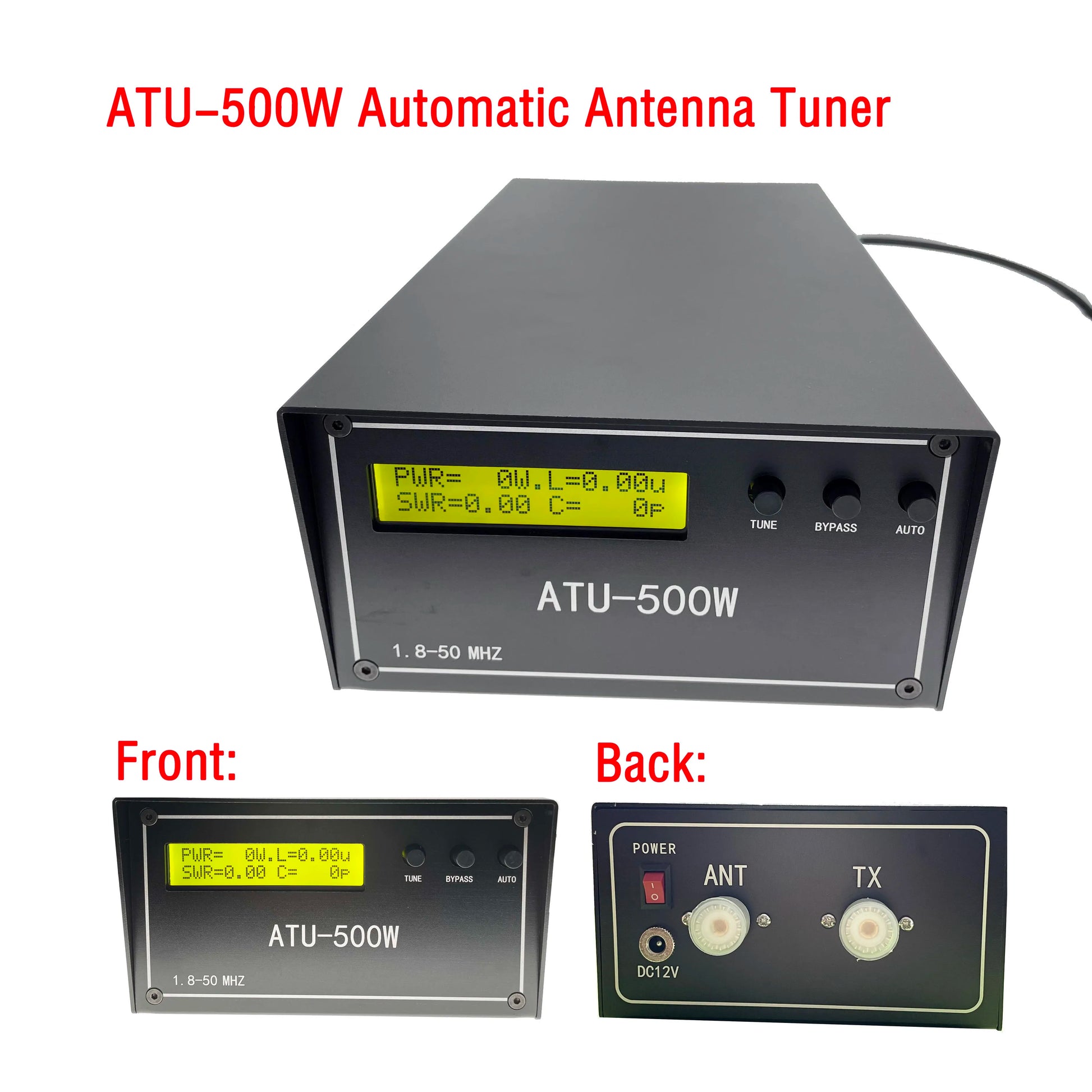

ATU-500W ATU500 Automatic Antenna Tuner

Latest program：3.2 version .

size:L*W*H:25*13.5*7.5 cm

Weight: 1.2kg

Package Included:

-1 x Assembled Automatic Antenna Tuner machine with Shell（No battery）

-DC5.5 x 2.1 power cord*1

List of raw materials:

The magnetic ring uses T130-2EW with low loss and low temperature rise, and its material uses German BASF6000 mesh 1-3 micron iron powder core. Performance is better than T130.

Parameter Description:

-Range: 1.8– 50MHz

-Power supply range: 10 - 15 VDC

Note:Recommended maximum power while tuning not above 30 watts, (after tuning can increase the wattage and work on this power，Otherwise it will burn easily).

-Max working power: 500 watts

-Minimum power for tuning start: 10 watt（1-10W may cause insufficient tuning）

-Minimum measured power: 10 watt

-Step for measurement on powers under 10 watts: 0.1 watt

-Step for measurement on powers above 10 watts : 1 watt

-Power measurement accuracy : 10%

-Maximum inductance set: 8.5 uH

-Minimal step for setting inductance: 0.1 uH

-Maximum installed capacity: 1870 pF

-Minimal step for setting capacity: 10 pF
