Autel PowerScan PS100 Auto Circuit Tester Diagnostic AVOmeter Test Tool Automotive OBD2 Scanner
Autel PowerScan PS100 Auto Circuit Tester Diagnostic AVOmeter Test Tool Automotive OBD2 Scanner
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ITCARDIAG
Certification: CE
External Testing Certification: ce
Hign-concerned Chemical: None
Is Batteries Included: Yes
Item Type: Engine Analyzer
Origin: Mainland China
Autel PowerScan PS100 Description:
Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:
1. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

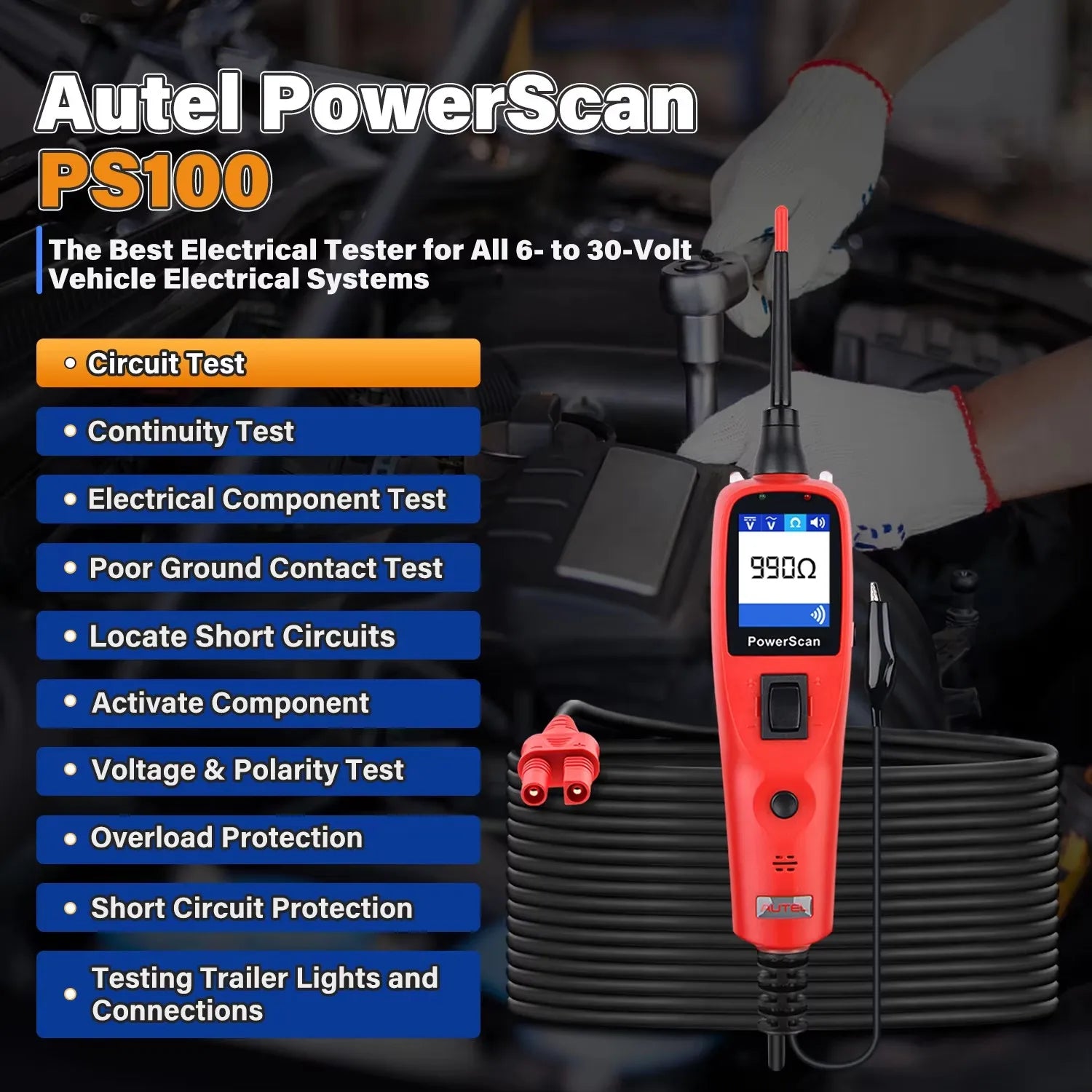

Autel PowerScan PS100 Features:
• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and component activation
• Easy to read AVOmeter allows you to read voltage, current, and resistance at the fingertip
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Simultaneously use the hot lead and the ground lead to activate components right in your hand
• Instantly identifies positive, negative, and open circuits
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• Instantly checks the continuity of switches, relays, and diodes
• Circuit breaker protected
• Built-in Flashlight enables you to work in the dark
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle
• Extremely easy to use and highly reliable

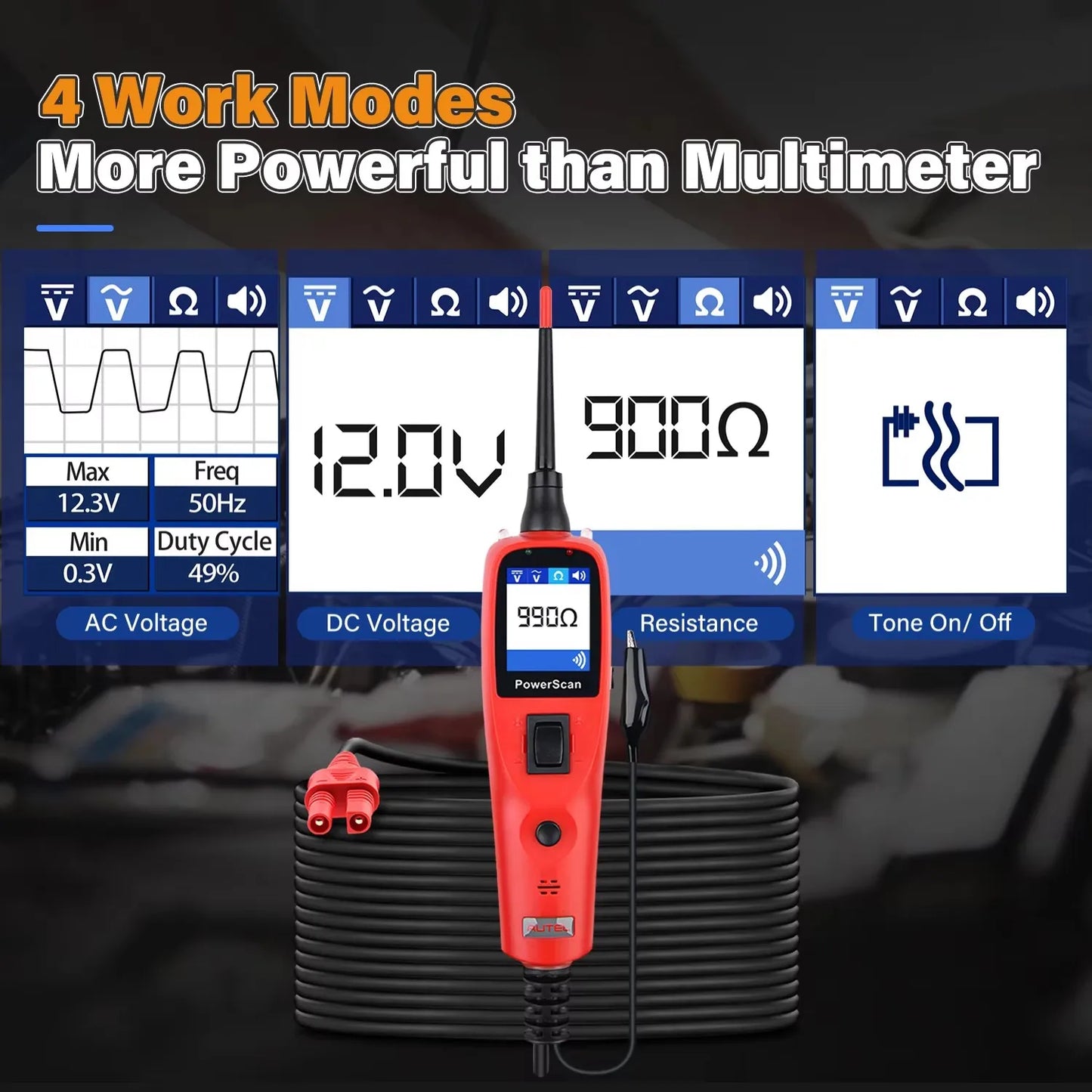

Autel PowerScan PS100 Work Mode:
There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.
DC Voltage
While the tool is in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volts.
AC Voltage
While the tool is in this mode, contact the probe tip to a circuit, and the LCD display will read the Max. voltage, the Min. voltage, frequency, and duty cycle.
Resistance
While the tool is in this mode, contact the probe tip to a circuit, and then the LCD display will read the resistance between the tip and auxiliary ground lead.
Tone On/Off
While the tool is in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.
This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.
Autel PowerScan PS100 Specifications:
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power is provided via the vehicle battery
Length\ Width\ Height: 126mm(4.96")\ 46.5mm(1.83")\ 35mm(1.38")
NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

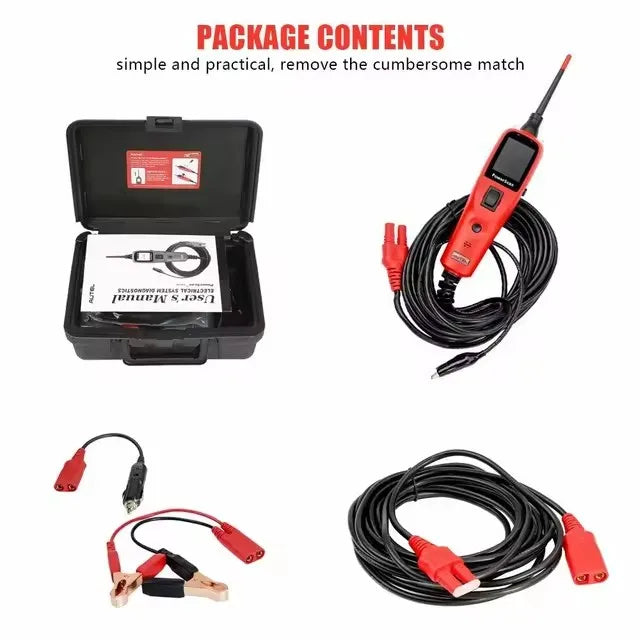

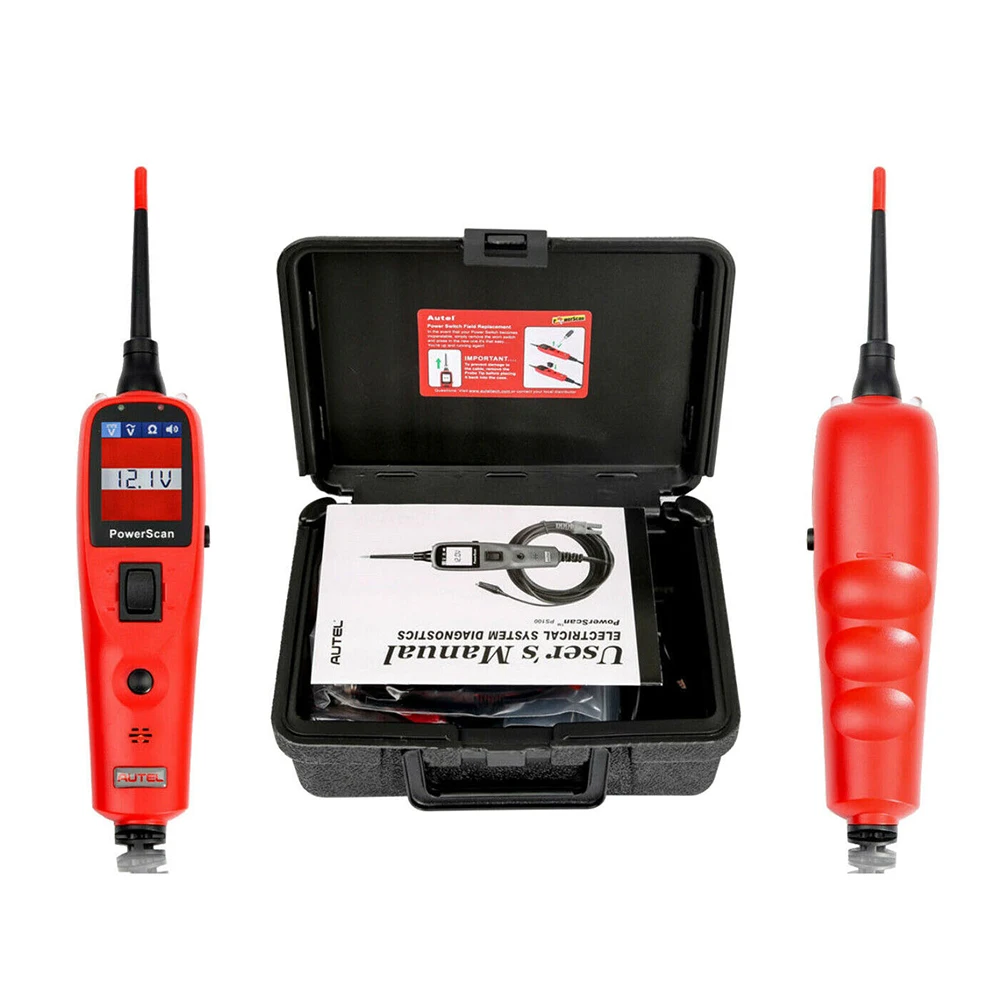

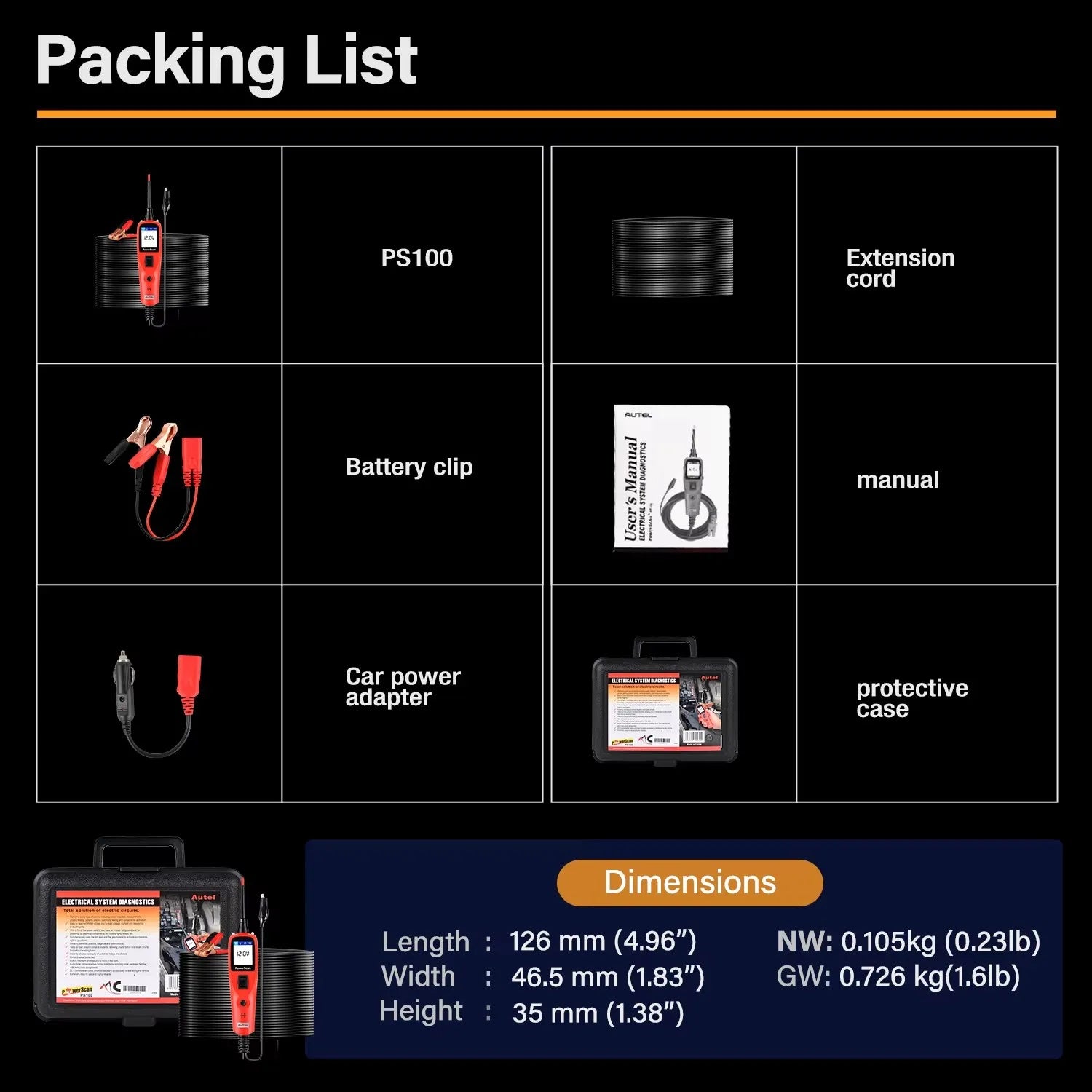

Autel PowerScan PS100 Package including:
1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
