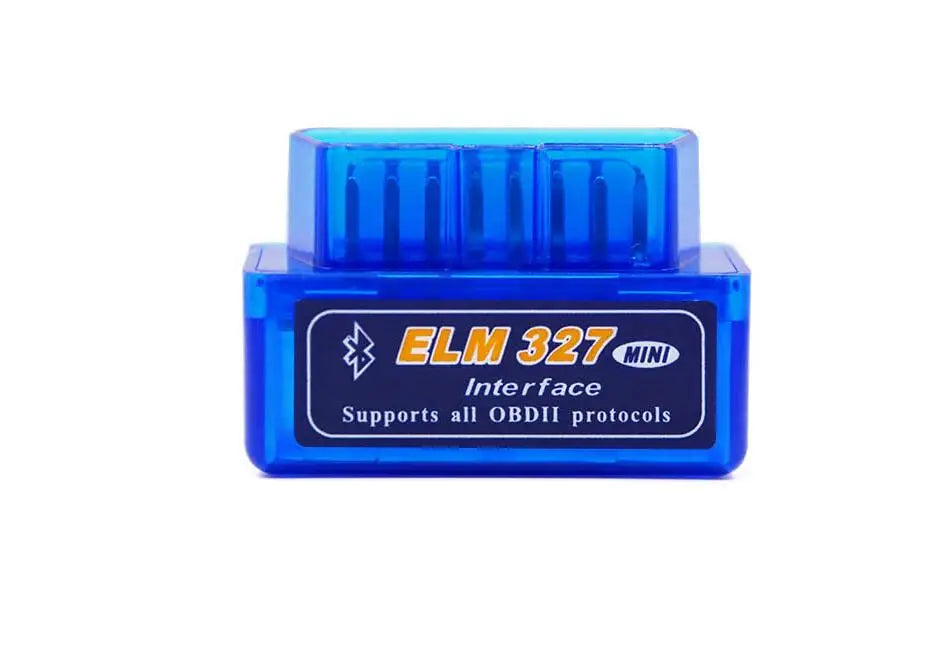

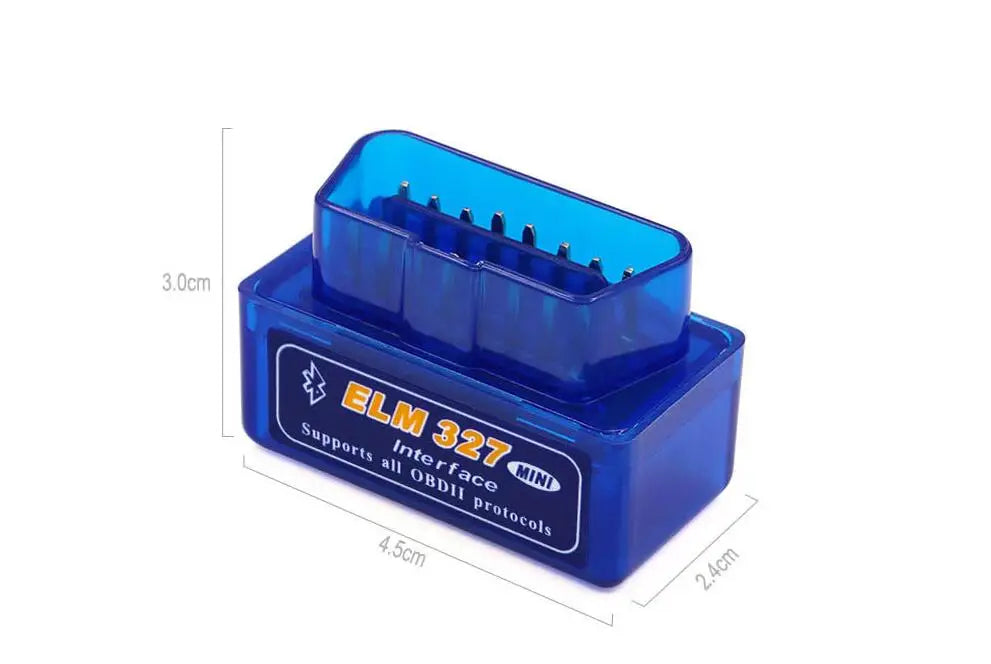

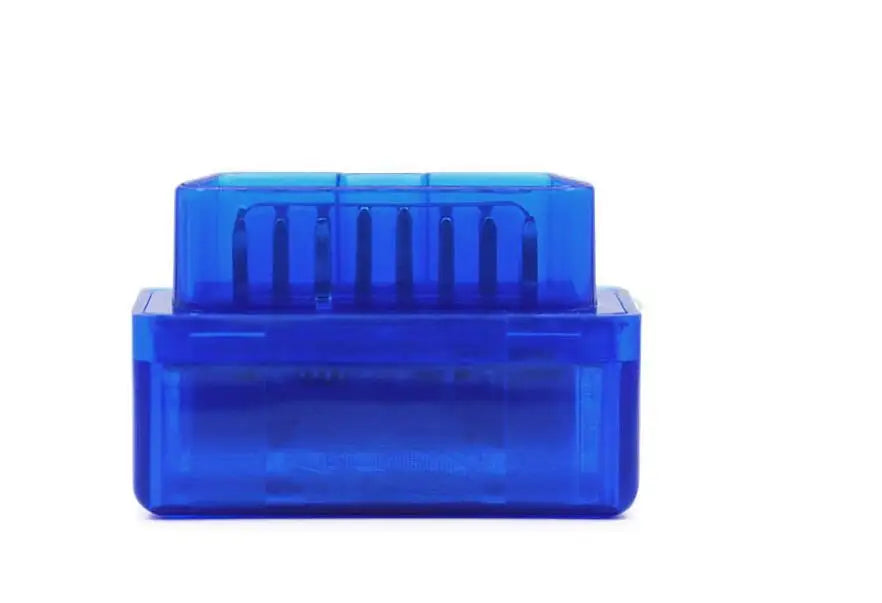

Car Diagnostic Tool ELM 327 Bluetooth for Citroen C4 C5 C3 Picasso Xsara Berlingo Saxo C2 C1 C4L DS3 Xantia DS4 C8

$9.00 USD

~~$18.00 USD~~ $9.00 USD

Sale Sold out

Default Title Default Title

SPECIFICATIONS

Brand Name: NoEnName_Null

ELM327 V1.5: 1PCB PIC18F25K80 Chip Support 9 Kinds of OBD2 Protocols

ELM327 V2.1: Support 7 Kinds of OBD2 Protocols

Features 1: Super MINI ELM 327 Bluetooth V2.1 / V1.5 for optional

Features 2: ELM327 V1.5 Support J1850 Protocol, ATAL and ATPPS

Hardware Version: V2.1 ELM327 / V1.5 ELM327

Language: Multi-Language 13 Kinds

Origin: Mainland China

Package: Standard Carton Box With Bubble

Place of Origin: Guangdong, China (Mainland)

Single PCB 25K80 V1.5 ELM327: Chip is 4MHZ. Bluetooth Module is 24MHZ

Software Version: V2.1 ELM 327

Warranty: 3 Years

Latest V1.5 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

V1.5 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol

Top 6 Reasons To Get Super MINI ELM327 Bluetooth

1. Software Version : V1.5

2. Hardware Version : V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

6. Supports ISO 9141, KWP2000, CAN bus

Supported protocols:

0.Automatic

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

*default settings (user adjustable)

MINI ELM327 Bluetooth Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

• Clear trouble codes and turn off the MIL ("Check Engine" light)

• Display current sensor data, including:

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short Term Fuel Trim

• Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature
