SPECIFICATIONS

Brand Name: KUNFINE

Display Size: 7"

Hign-concerned Chemical: None

Item Size: 7"

Item Type: Car Monitors

Item Weight: 782

Material: Plastic

Model Name: KF-V7009

Origin: Mainland China

Placement: In-Dash

Resolution: 480x234

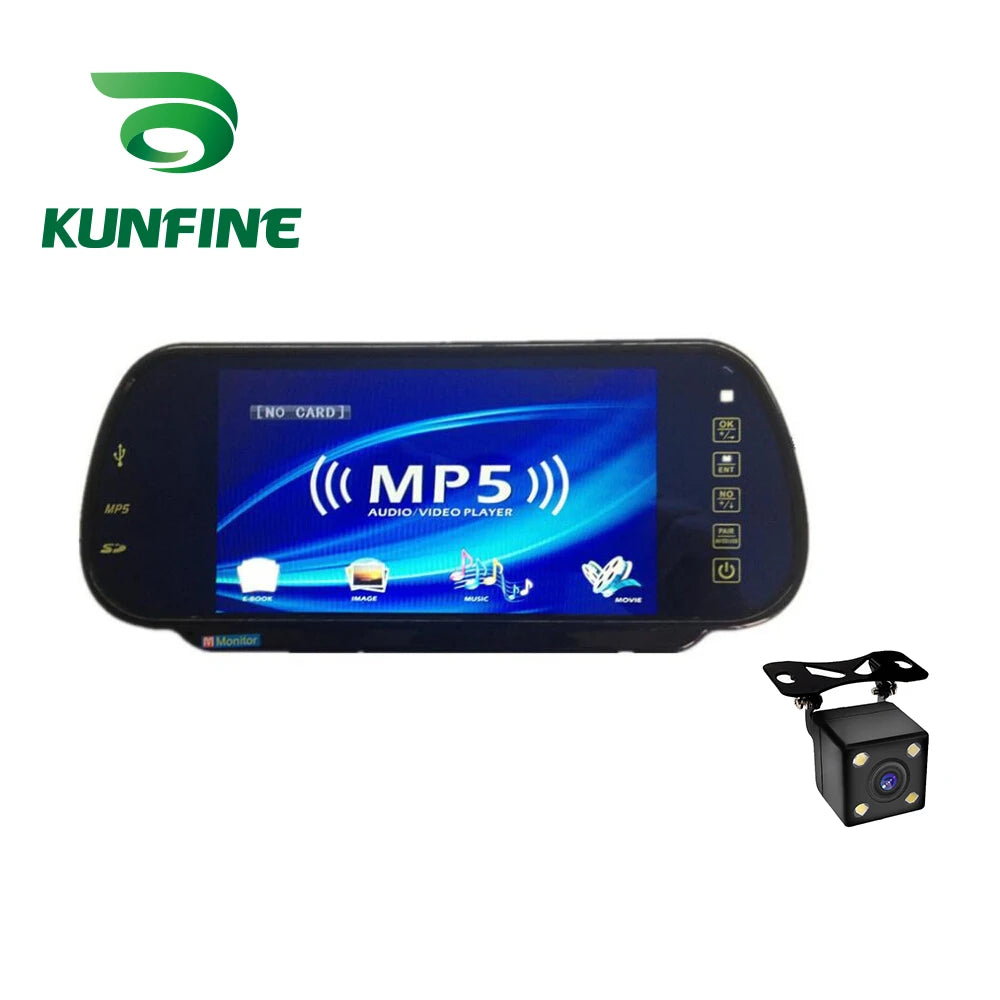

Car Styling 7 inch TFT LCD Screen Car Rear View Monitor Display with Wifi Car MP5 Player for Rearview Reverse Backup Camera Car TV Display







Production Description:

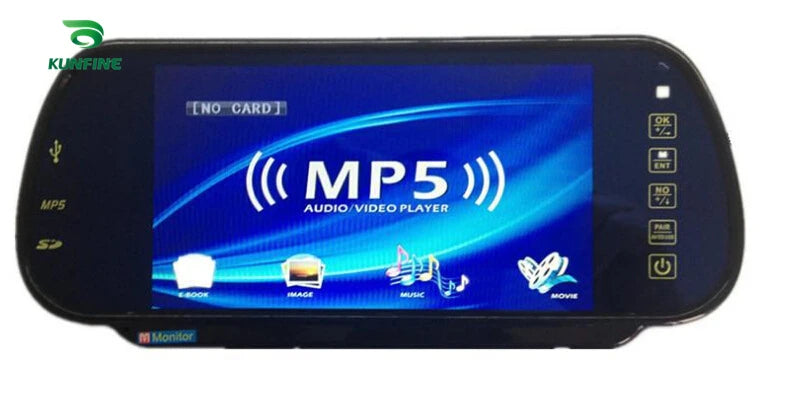

Screen Size : 7 inch rear view mirror with MP5

Display Mode:16:9

Video SystemF: PAL / NTSC dual system automatically switches

Pixel:480* 234

Working voltage: DC12V

Rated power: 6W

2 AV input reversing automatic display

Contrast:350:1

Working temperature: -20-+60

Storage temperature: -40-+85

Full functionremote control, button operation





Car Rear View Camera Description:



· Image Sensor: 1/3 "OV Color

· Effective Pixels: PAL 512 (H)x582 (V); NTSC 512 (H)x492 (V)

· Horizontal Resolution: 420 TVL

· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)

· Night Vision: 5-10meters

· Lens: 2.8mm

· Diagonal Viewing Angle: 120 degree optional

· Synchronization: Internal synchronization

· Signal to noise ratio: >48db

· Signal System: PAL/NTSC

· Electronic Shutter: Auto

· Video Output: RCA interface, 1.0Vp-p, 75Ohm

· White Balance: Auto

· Backlight Compensation: Auto

· Power: DC 12V

· Current Consumption: 50-60mA, Max 130mA with IR on

· Operating Temperature: -20C~ +60C, RH95% Max

· Storage Temperature: -30C ~ +80C, RH95% Max







Wireless Video Transmitter + Receiver  Specification:





100% brand new,high quality

Easy installation

Take one minute get your camera become a wireless camera

Wireless 2.4GHz transmitter+receiver set (12-Volt for vehicle installation)

Work range: up to about 50m(Hollowness)

Fit all RCA composite video connections

Power: DC 12V

Transmitter/Receiver cable length:1.5m







Package Contents:(Three kind for Choose: A B C)






Package Contents  A



1 x  7 Inch Monitor with MP5+  Video & Power Cable +   Remote Control  +  User Manual

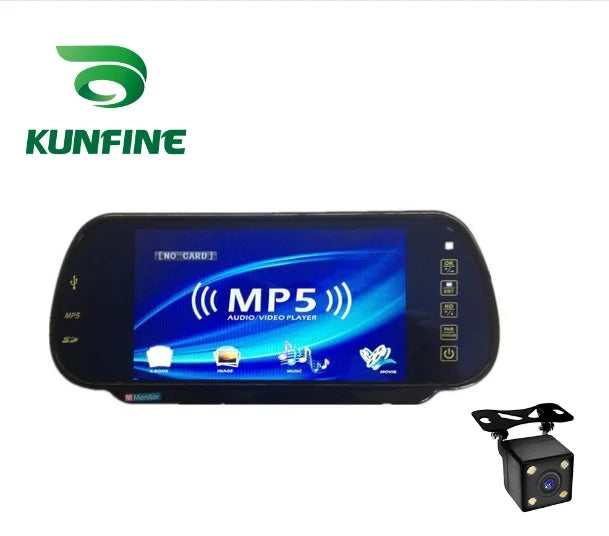

Package Contents  B





1 x  7 Inch Monitor with MP5+  Video & Power Cable +    Remote Control   +  User Manual

1 x  Car Rear View Camera + 6M Video & power cable

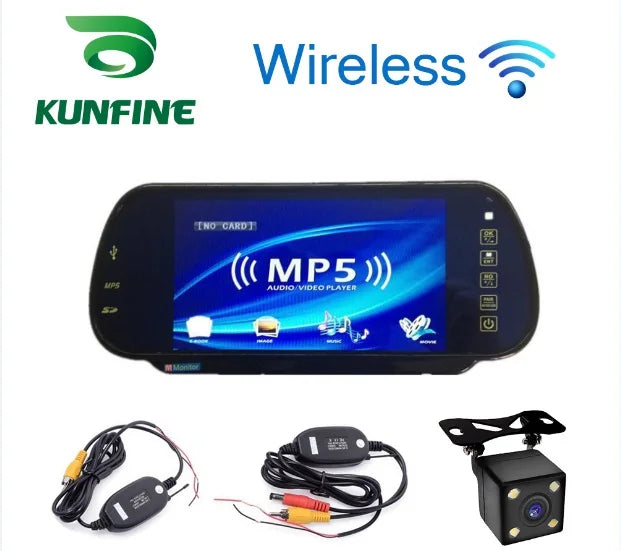

Package Contents  C





1 x  7 Inch Monitor with MP5+  Video & Power Cable +   Remote Control  +  User Manual in English

1 x   Car Rear View   Camera +   Wireless Video Transmitter & Receiver

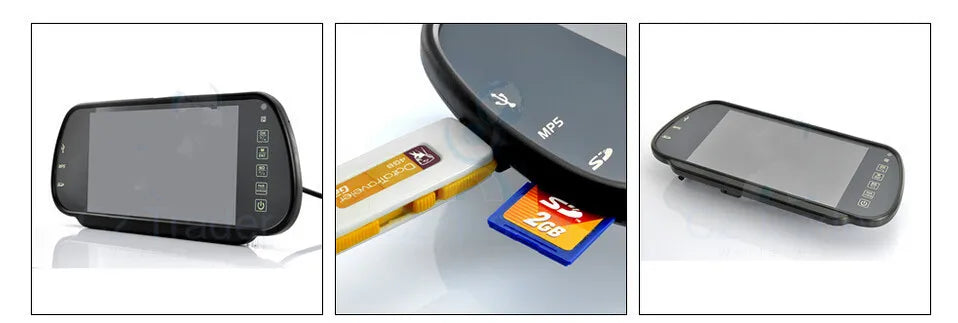

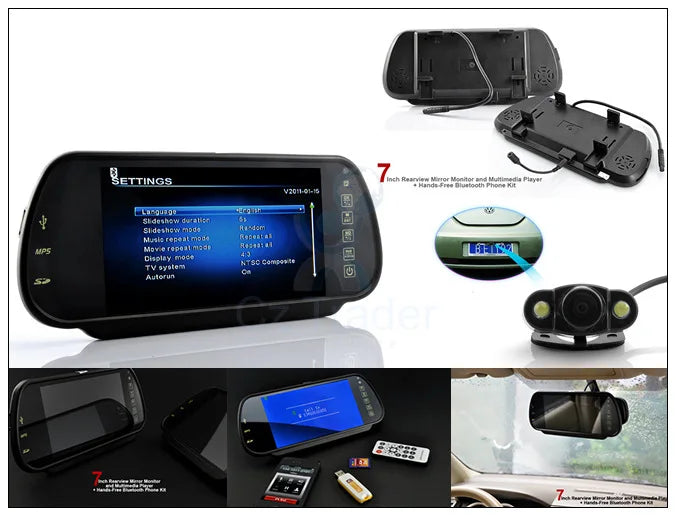

Detail Photos:
