SPECIFICATIONS

Brand Name: SUNFLYING

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: CUAV CAN PMU

Origin: Mainland China

Quantity: 1 pcs

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

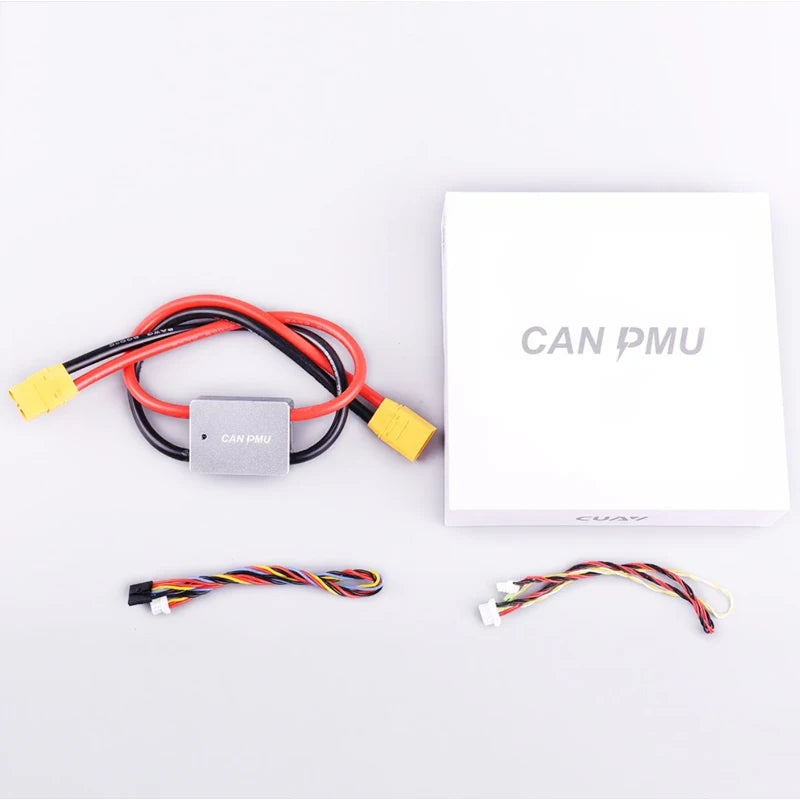

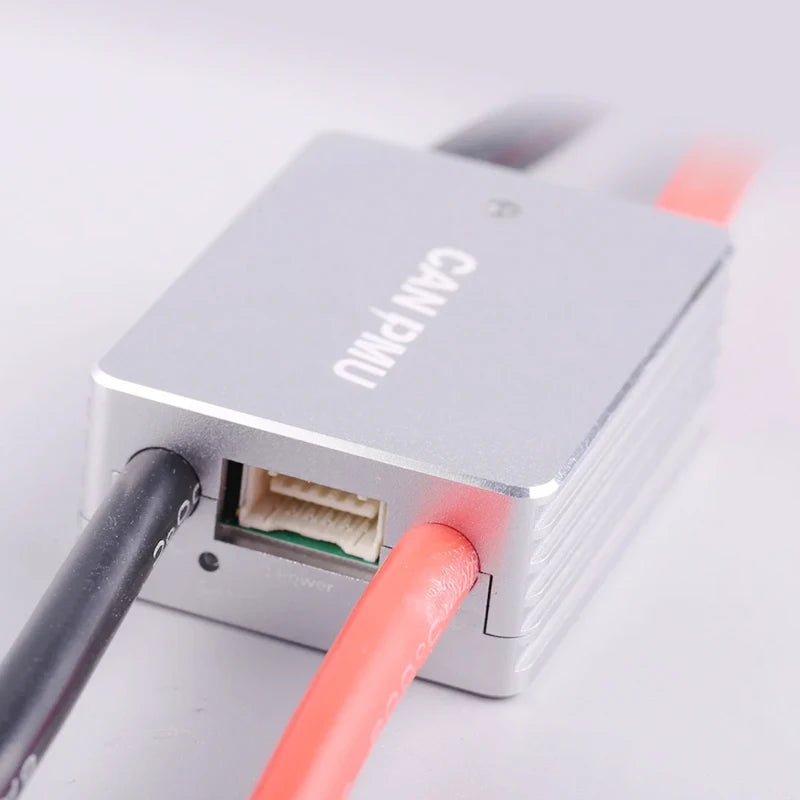

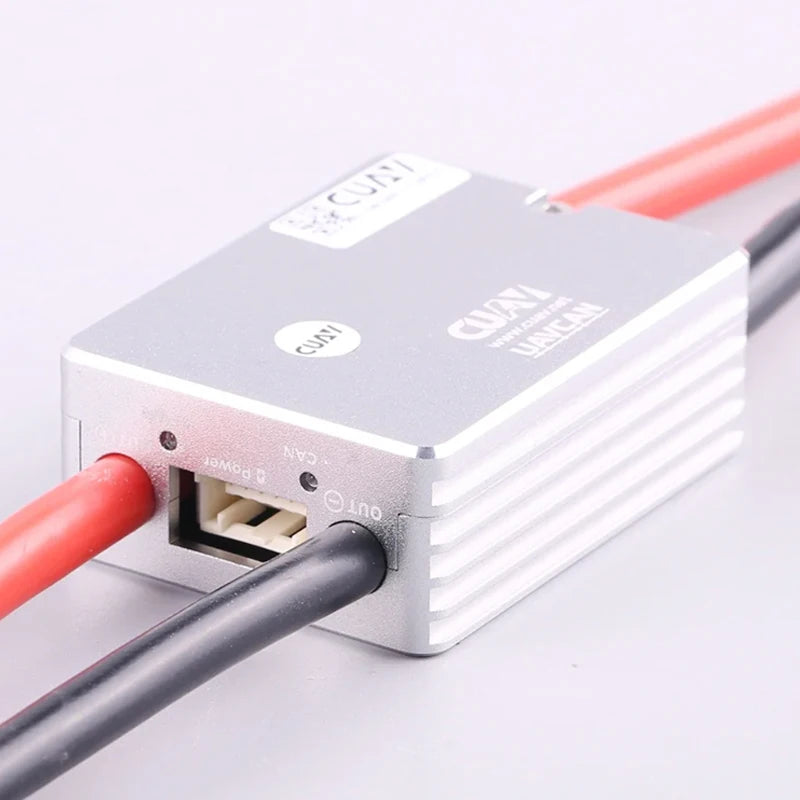

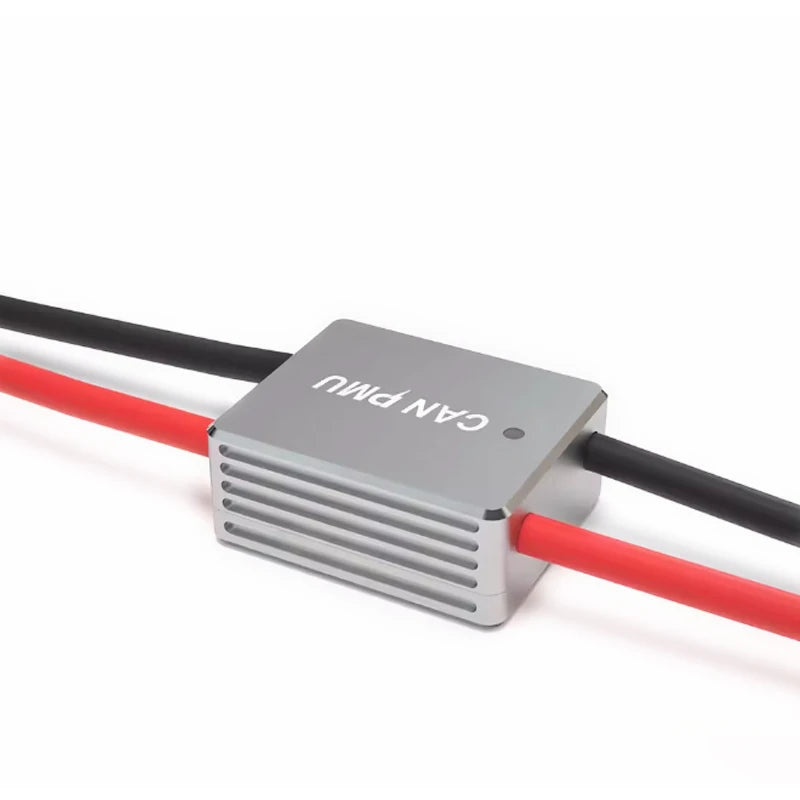

CUAV CAN PMU/UAVCAN Bus Digital High Precision Voltage And Current Detection APM/PX4 Open Source

Non-professional players please purchase and use with caution

CAN PMU power module V5/X7 version dedicated (other flight control needs to change the line)

CAN PMU Introduction

CAN PMU is a power management module, running self-developed ITT algorithm, can accurately measure UAV voltage, current, output in real time, the maximum support 6-62V voltage and 110A current, support output 5.4V/5A to the flight controller power supply, the use of CAN digital communication protocol, reduce data error

problems.

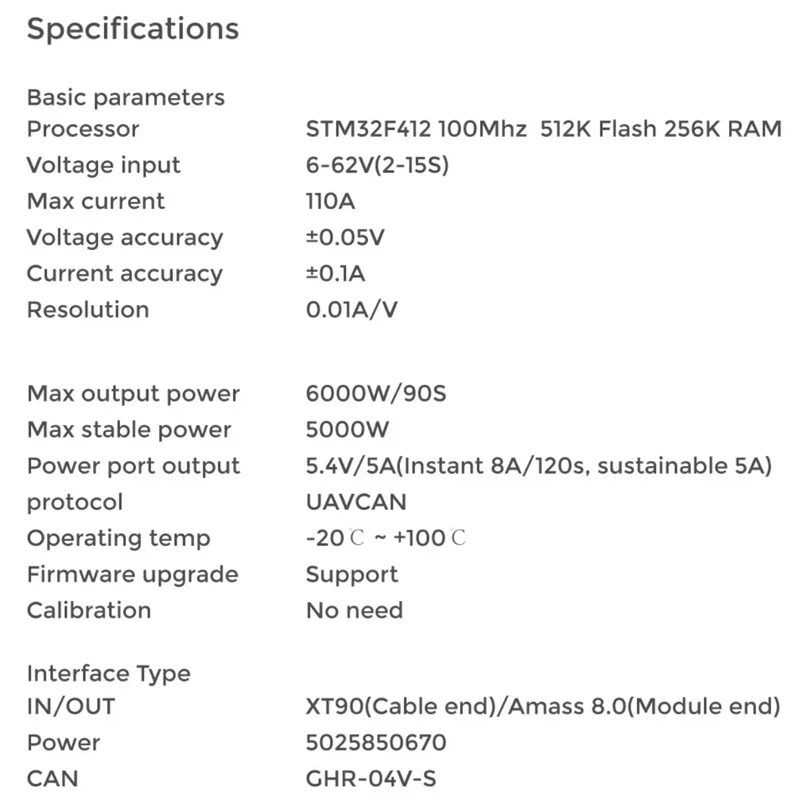

CAN PMU Features:

1：0.05V 0.1A accuracy

2：5V/5A regulated output

3：Maximum support 62V voltage input, 110A current measurement

4：Self-developed ITT algorithm
