SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

DIY Supplies: Paint & Decorating

Hign-concerned Chemical: None

Origin: Mainland China

Specification:

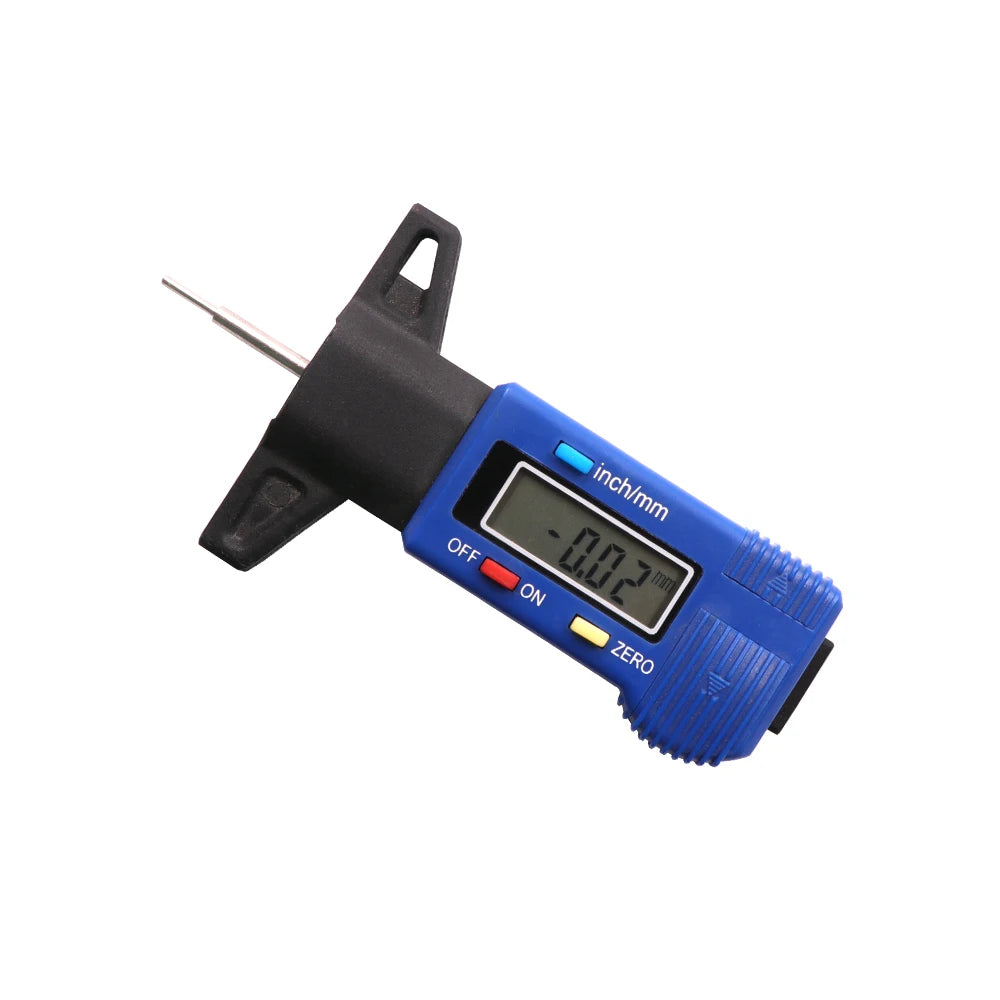

Name: Digital Tire Pattern Depth Gauge

Resolution: 0.01mm

Battery: LR44 type 1.5V button battery (NOT INCLUDED)

Tolerance: ± 0.1mm

Range: 0-25mm

Product Instruction:

1. Insert battery in, "+" pole upward

Switch on the tire depth gauge

Put base on flat surface and press the bar downward

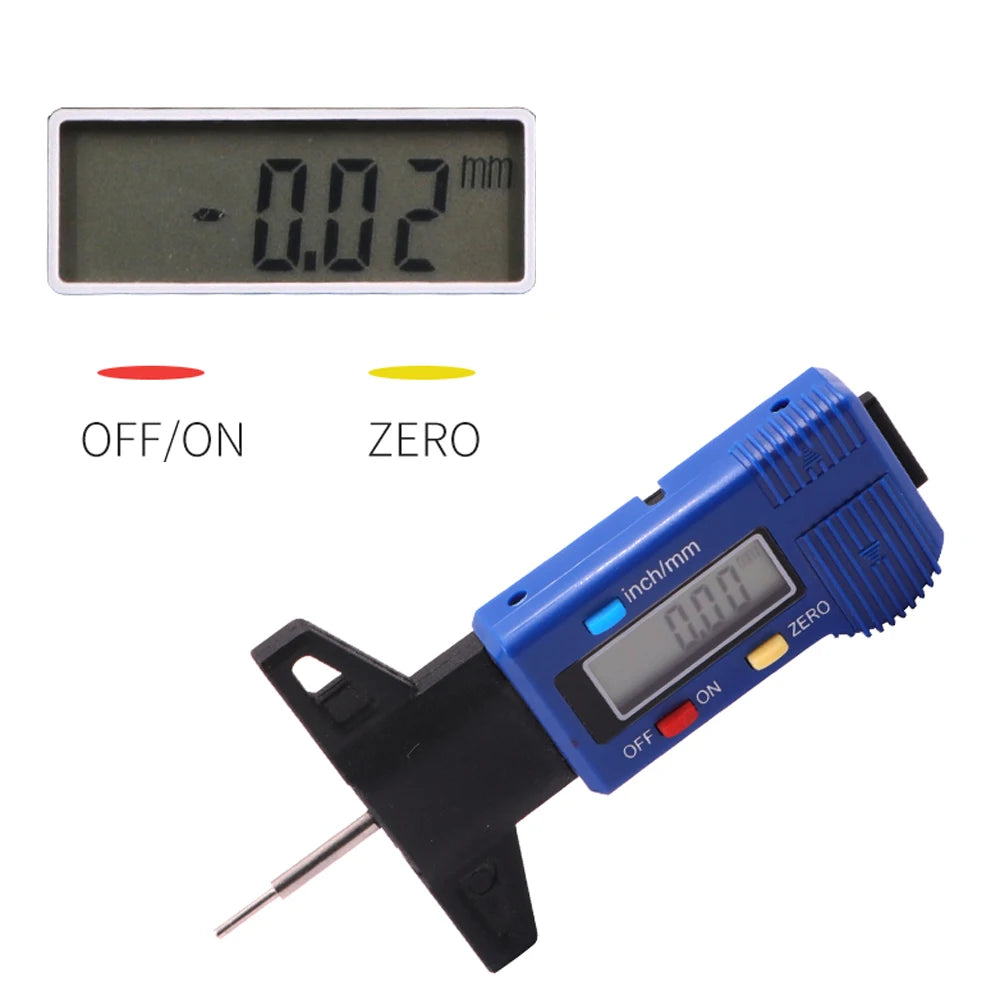

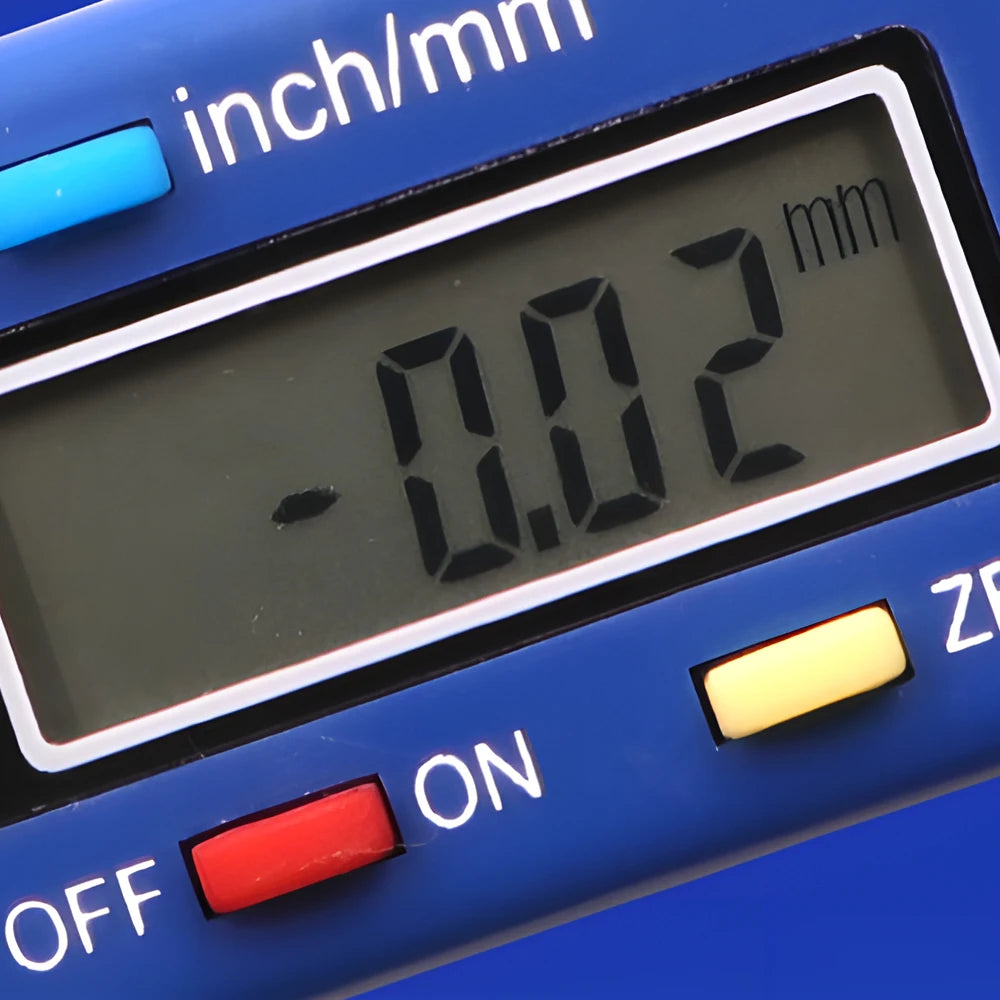

Press Zero Button, the LCD screen will display 0.00mm

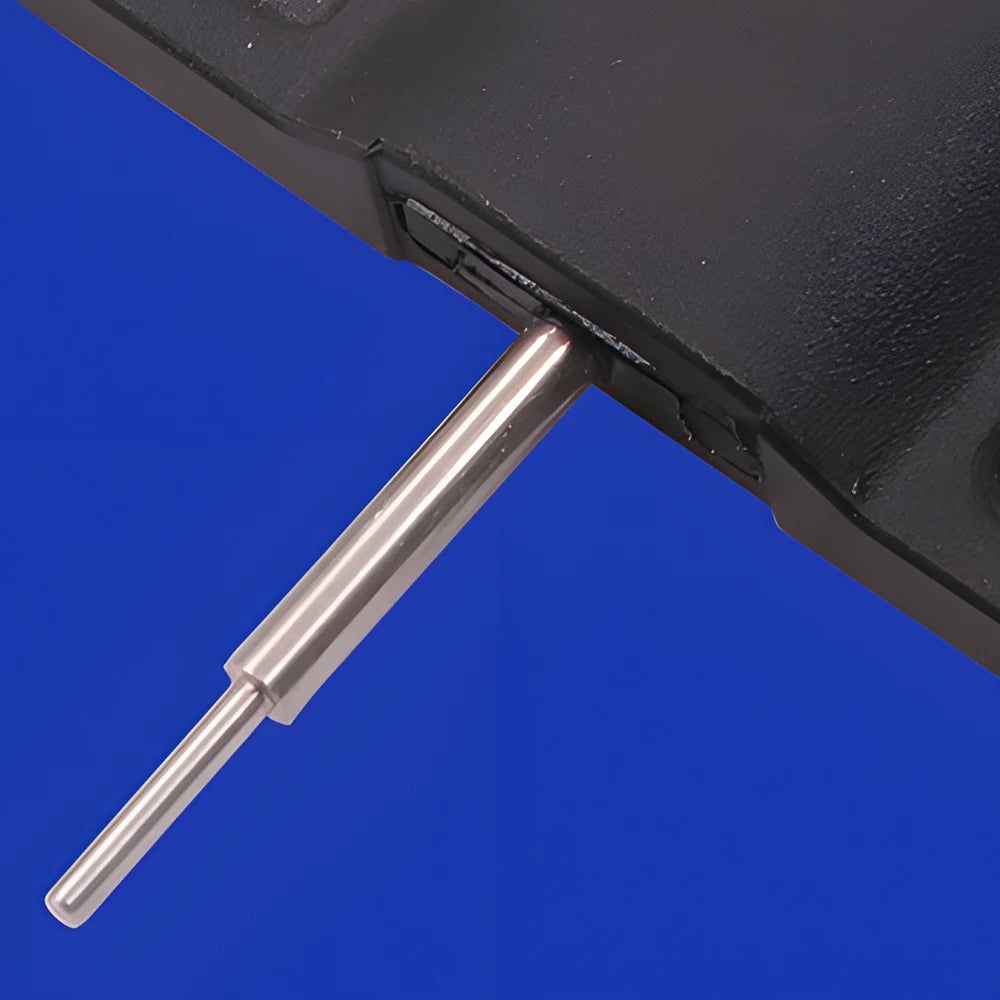

Put gauge on tire, hold stable and press bar tip into tyre profile

Read profile depth value value directly

For accurate measuring, test it for several times

Switch off the gauge, Please remove battery when you don't use it for long periods

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
