SPECIFICATIONS

Brand Name: NONE

Brushless Controller: YES

Maximum Current: 60A

Origin: Mainland China

Sine Wave Controller: YES

Type: Controller

Voltage: 36V-84V

36V-84V 2000W-3000W all can work sine wave brushless controller

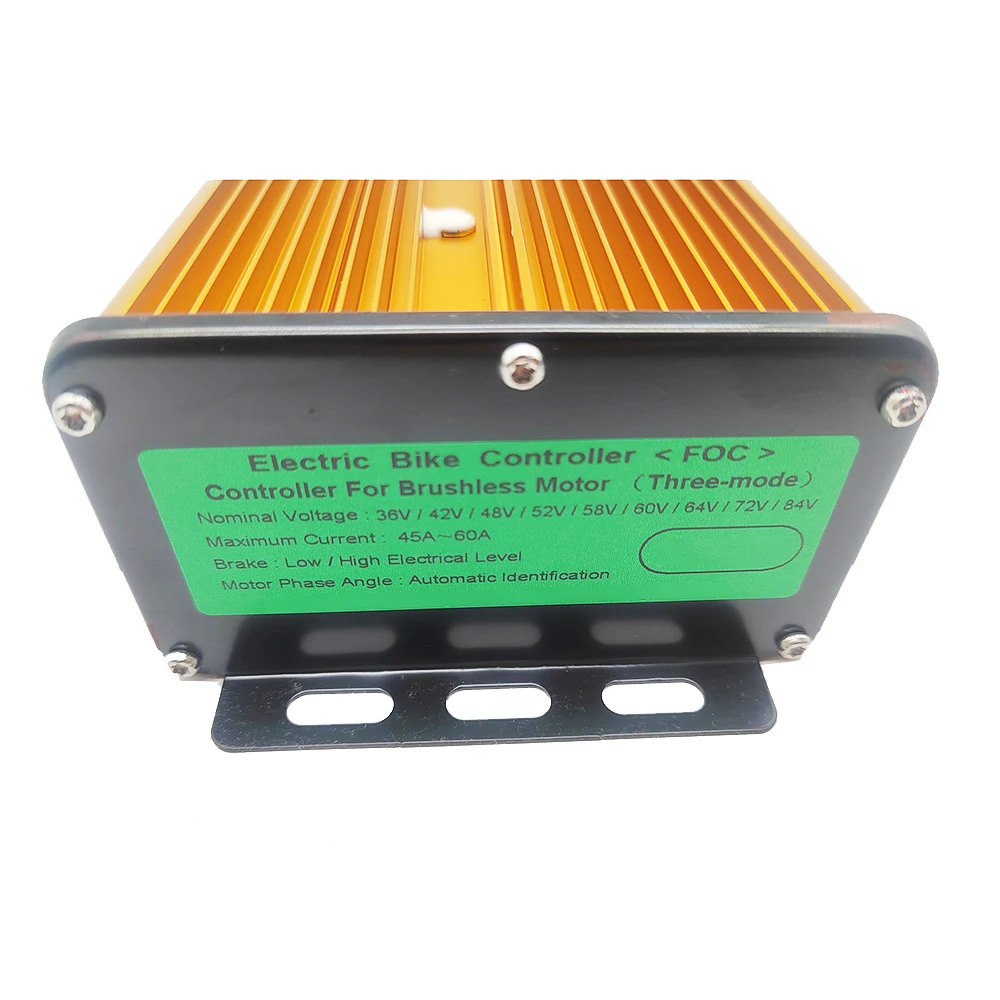

Name: Intelligent three-mode brushless controller

Rated Voltage: 36V-84V

Low Voltage : 32V

Rated Power: 2000W-3000W

Limit Current: 60A

Number of brushless controller tube：18

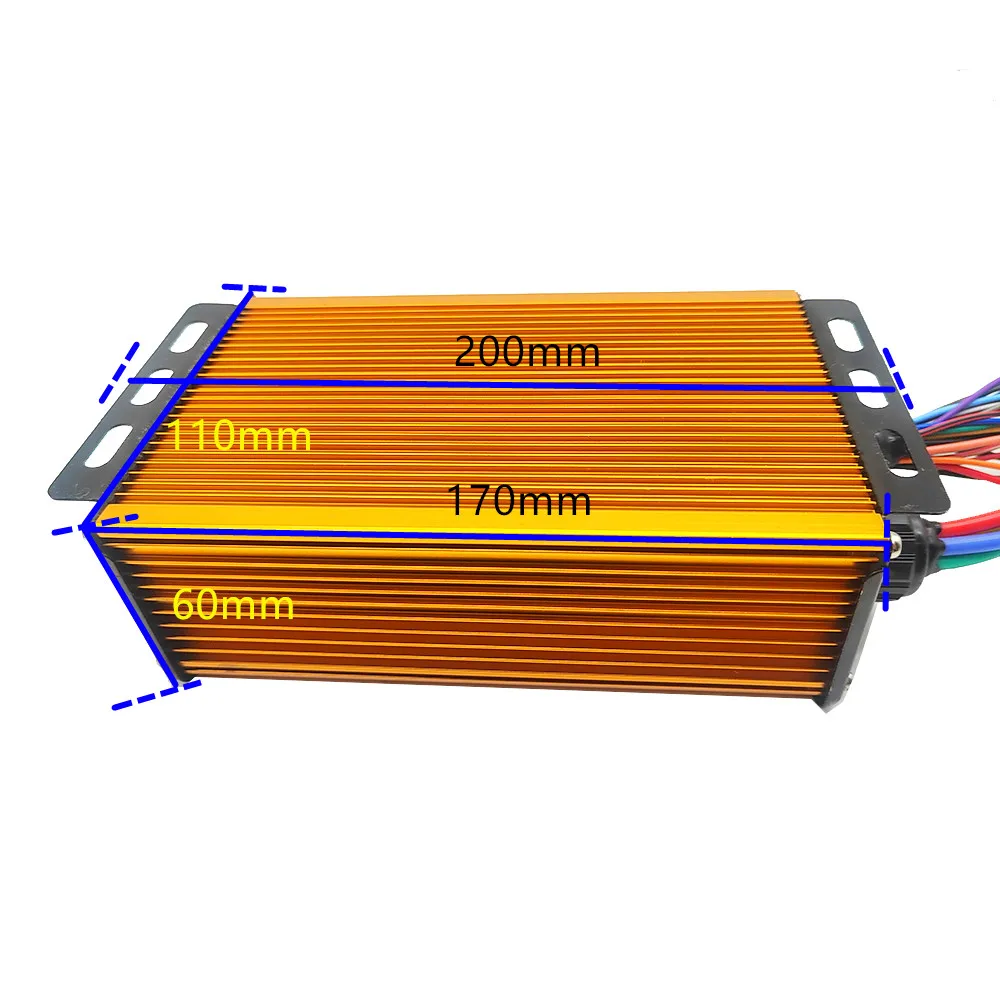

Weight：1000g

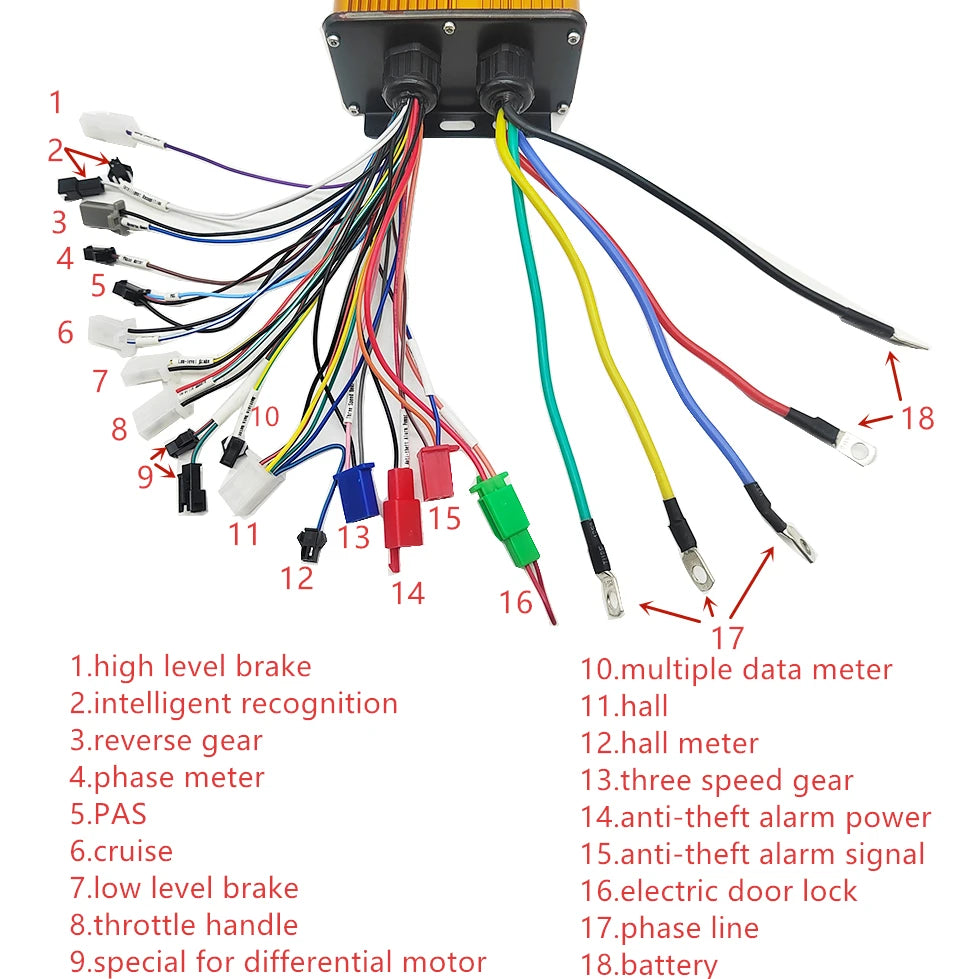

Brushless controller function：

1.high level brake

2.intelligent recognition（self-learnig line ）

3.reverse gear

4.phase meter

5.PAS

6.cruise

7.low level brake

8.throttle handle

9.special for differential motor

10.multiple data meter

11.hall

12.hall meter

13.three speed gear

14.anti-theft alarm power

15.anti-theft alarm signal

16.electric door lock

17.phase line

18.battery

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the battery line(red:battery+ , black:battery-)

3. connect the controller throttle to throttle and need color to color connect,

connect controller electric door lock to throttle electric door lock

（if throttle not have electric door lock, controller electric door lock docking,

so controller electric door must connect ）

4. connect the hall line(if motor without hall line, don't need connect)

5.docking the two intelligent recognition line, the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Docking the intelligent recognition line again

if wheel forward ,Separate the intelligent recognition line.)

6.other functions can be connected as needed.
