SPECIFICATIONS

Application: Electric vehicle ambient light

Brand Name: ReYeBu

Condition: New

Model Number: Symphony LED Controller

Origin: Mainland China

Package: SMD

Supply Voltage: DC12V

Type: Module

is_customized: Yes

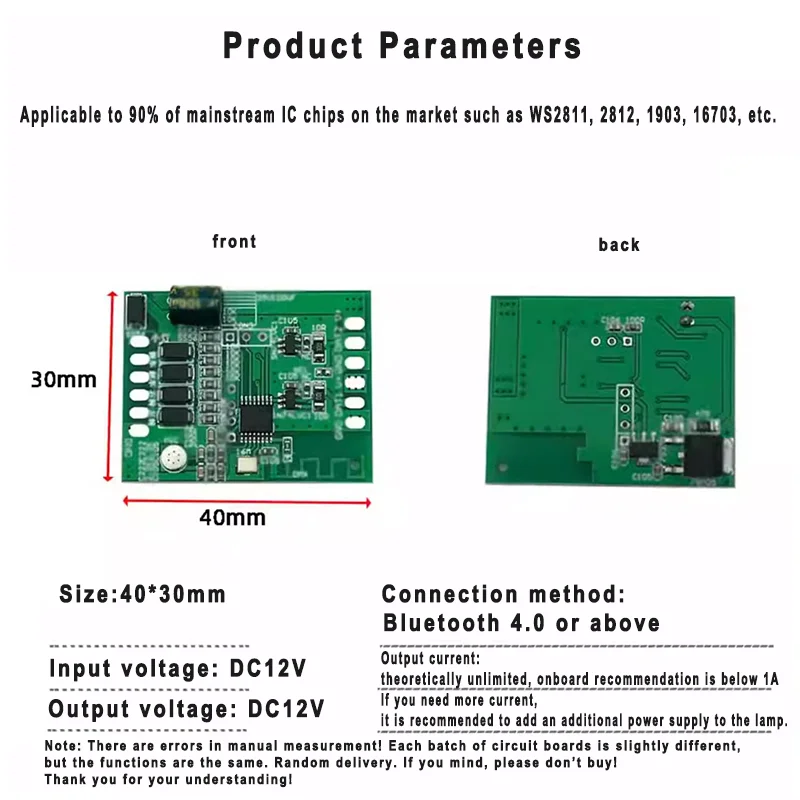

size: 40x30MM

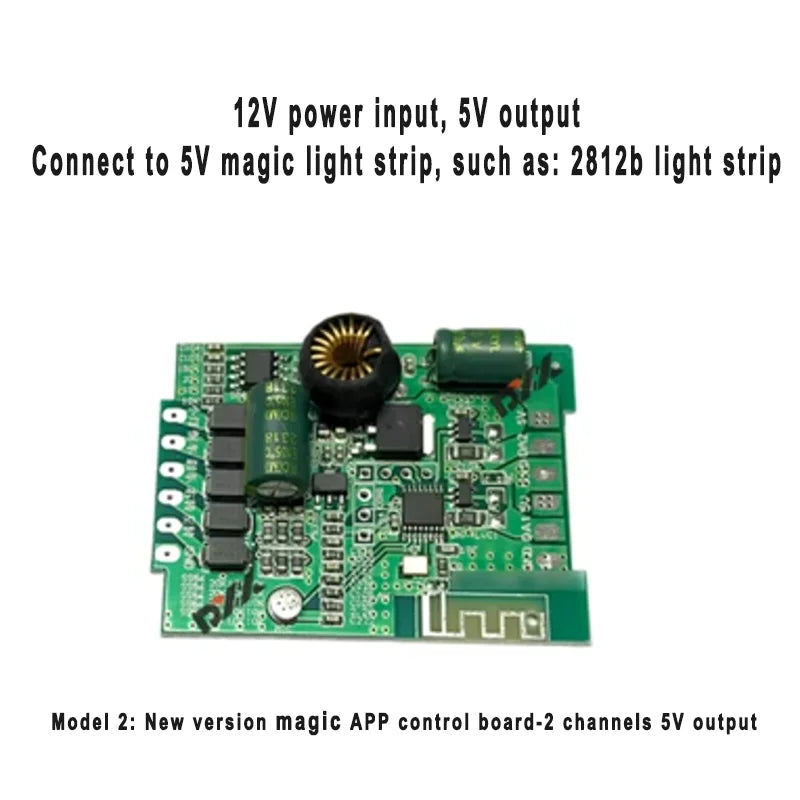

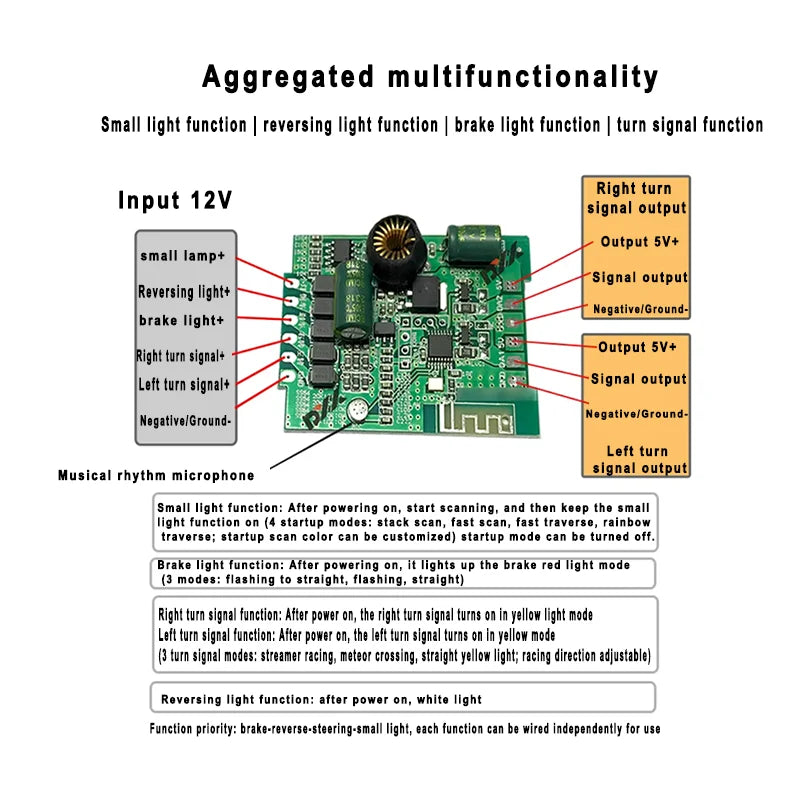

Electric Vehicle Ambient Light Illusion Controller Start Scanning Streamer Horse Racing Turn Signal Brake 5V 2-way with APP, BT

Note:

1.This product is a semi-PCBA product. It only has a circuit board and no soldering wires. There are some minor differences in different product batches. The functions remain unchanged and are shipped randomly.

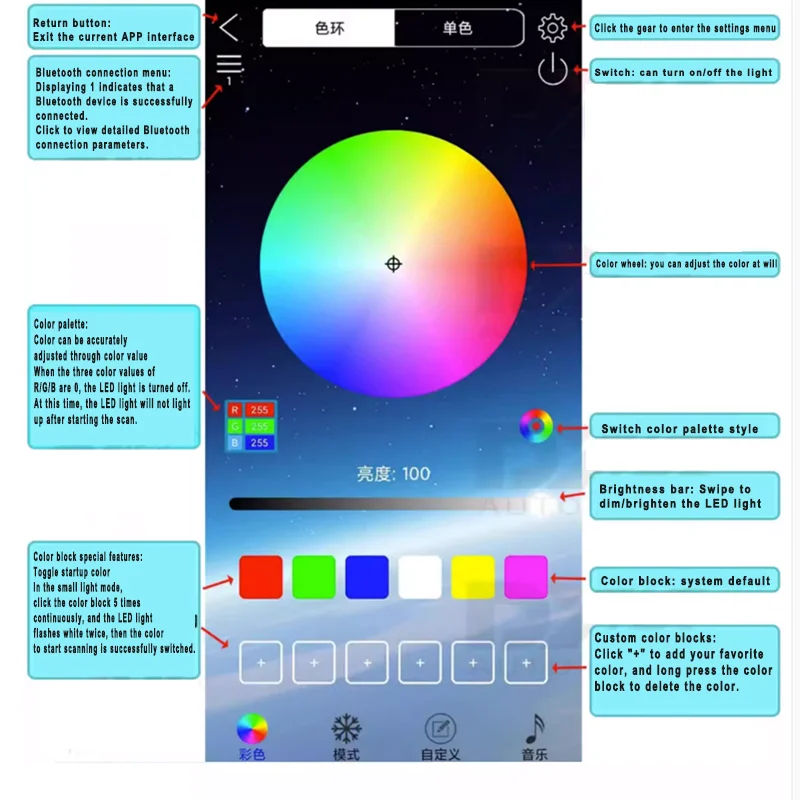

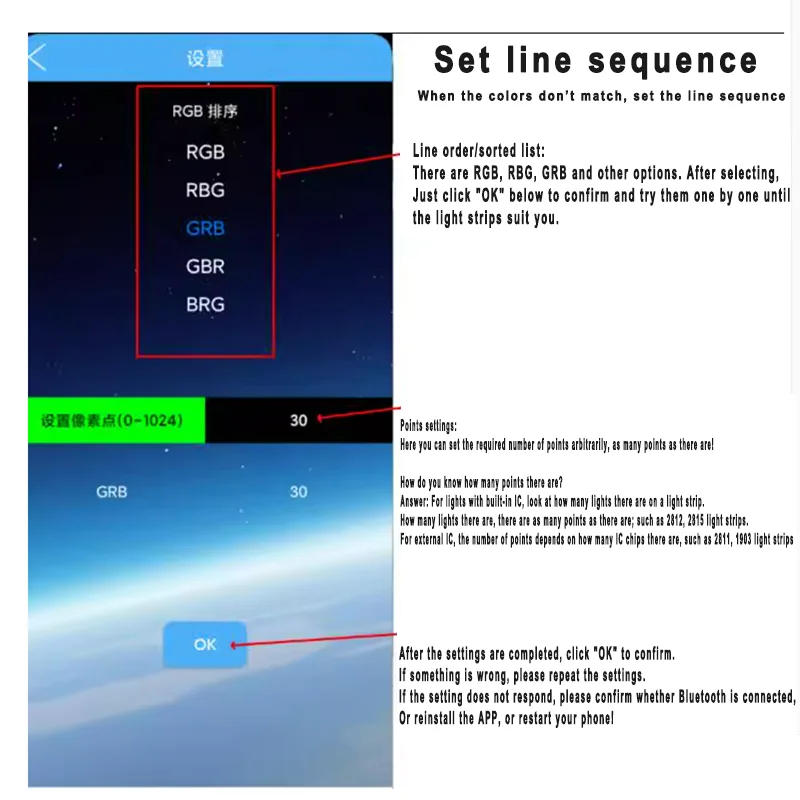

2.Please contact customer service after placing an order to obtain the product APP.

New version upgrade:

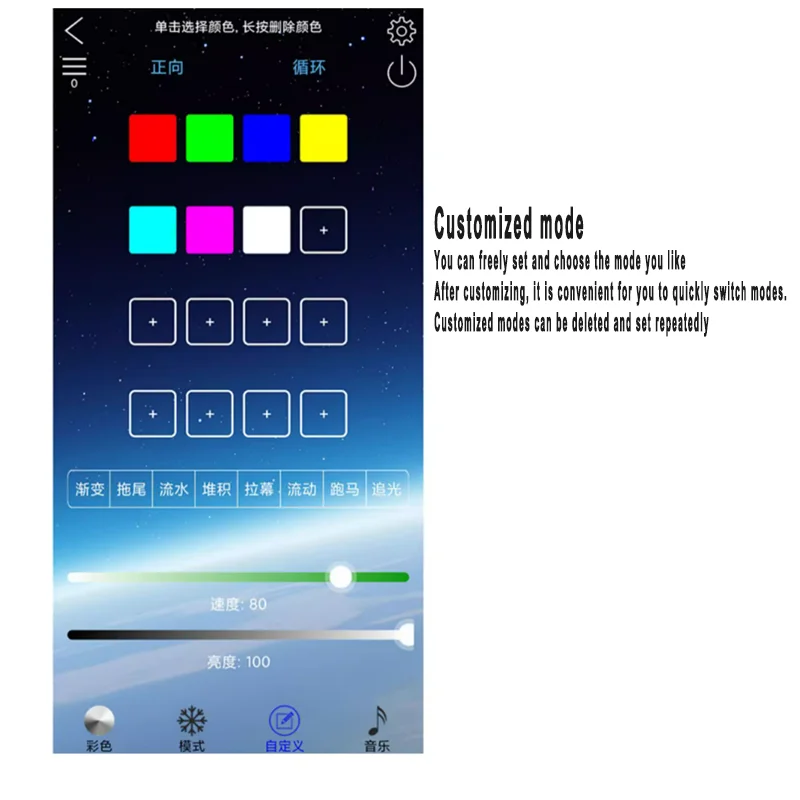

1. Support starting scanning color customization, you can define the color you want!

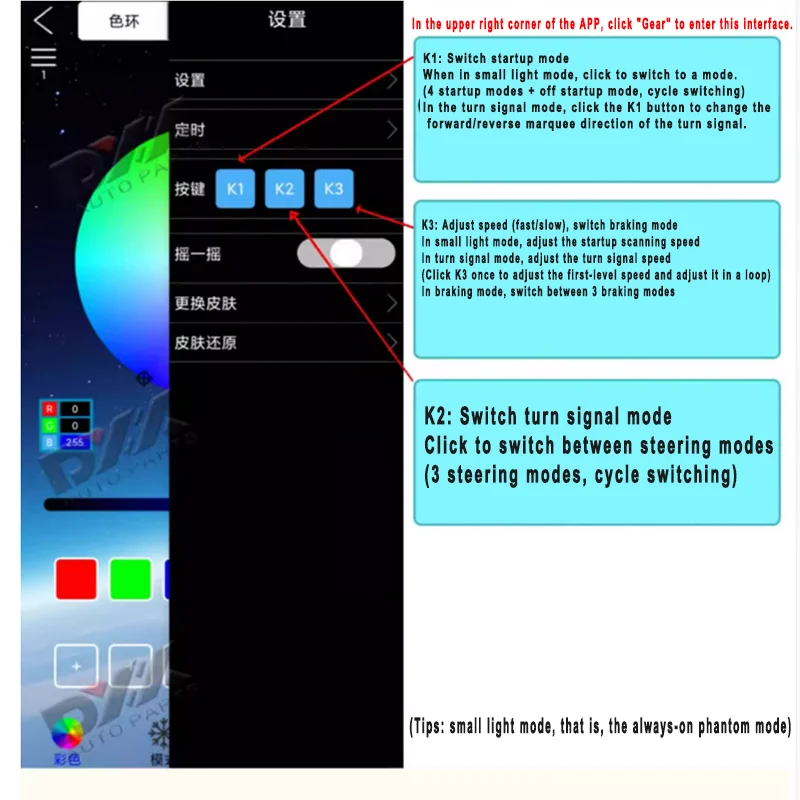

2. You can set the direction of the turn signal's marquee by yourself, so you no longer have to worry about which end the lead is at!

3. Add single color breathing flash mode, the color can be freely selected, more romantic!

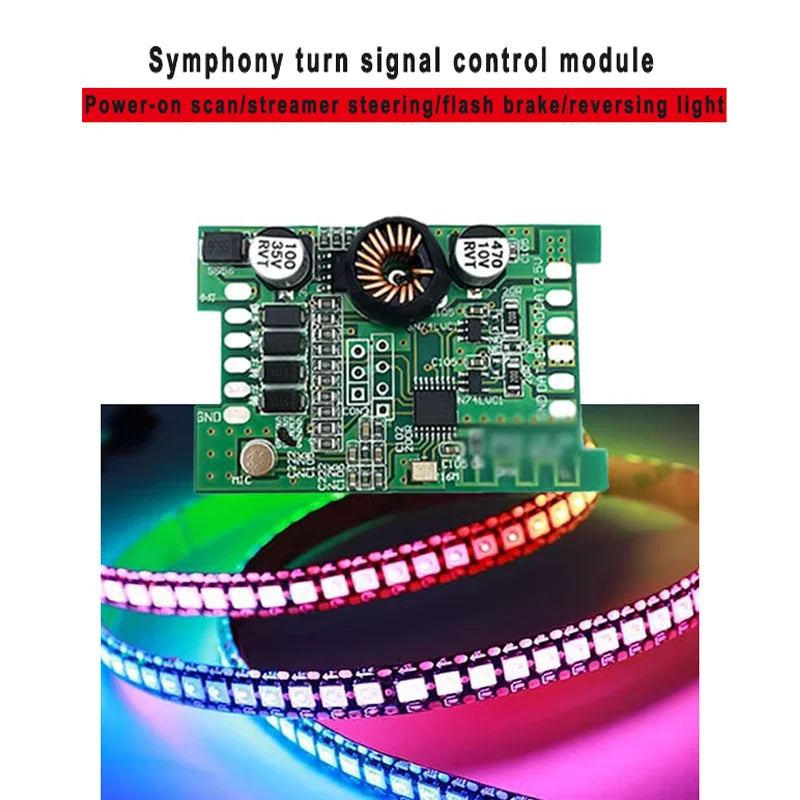

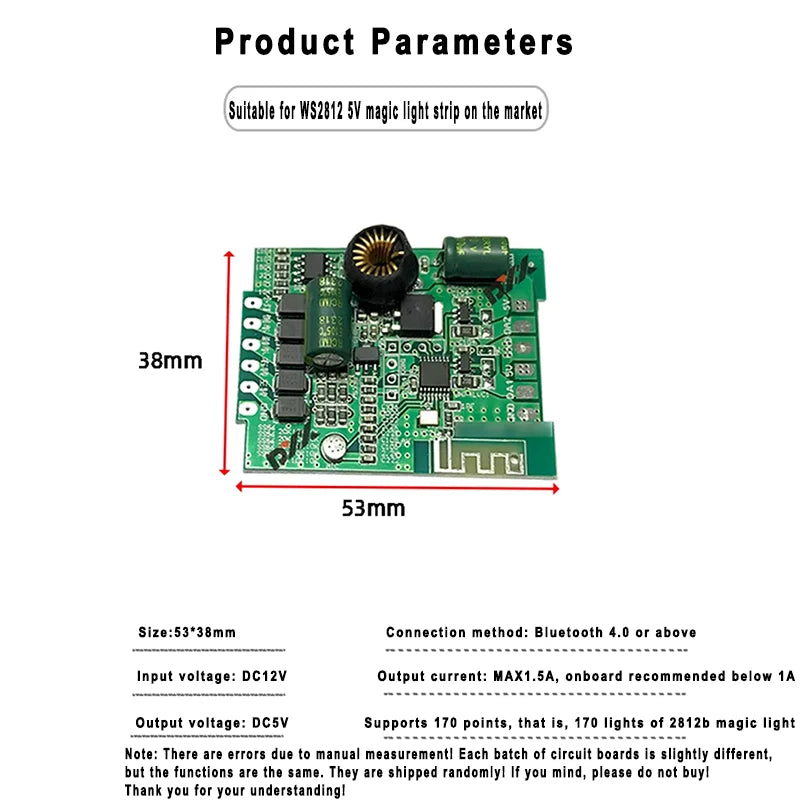

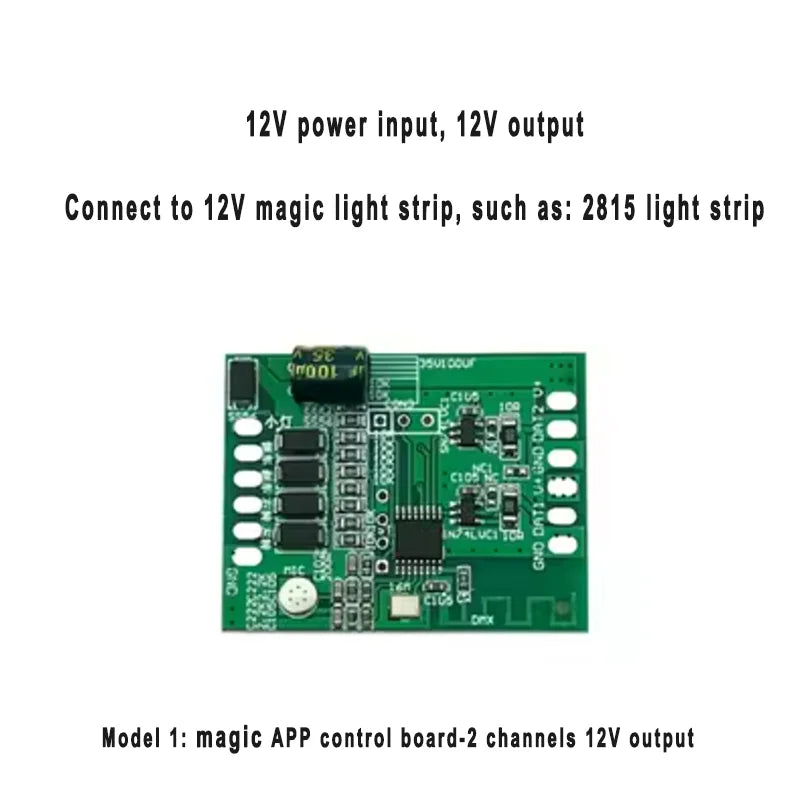

Symphony LED controller：

Input voltage: DC12V

Output voltage: DC12V

Connection method: Bluetooth 4.0 or above

Language: Support Chinese/English (depends on mobile phone system)

Support mobile phones: Apple, Android or Hongmeng

Color: 256 color adjustment

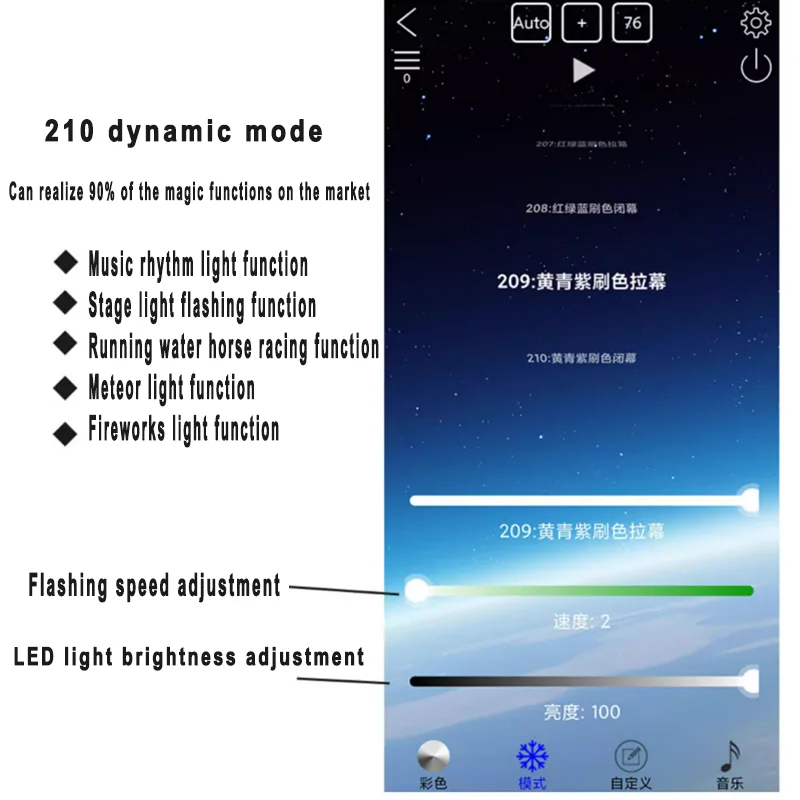

Mode: 210 dynamic flashing modes

Special instructions:

Since the brightness function is open and the brightness is no longer self-protected, you must abide by the following terms:

The maximum output current is 1.5A;

Supports 170 points and can be used with a current of less than 1.5A!

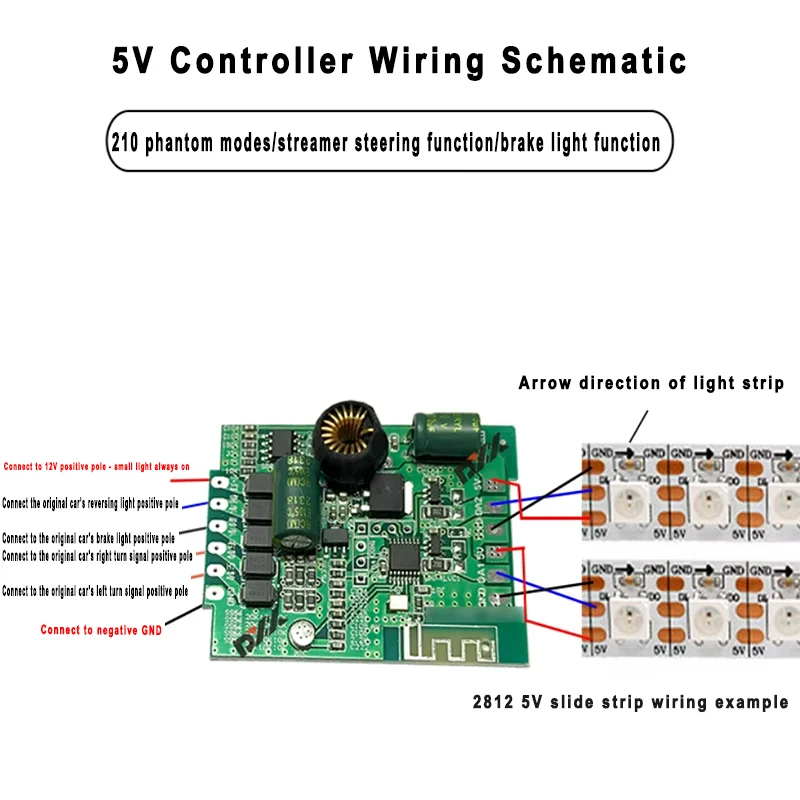

For normal use, it is recommended to use less than 50 points per strip (i.e. 50 lights for 2812/2815 strips)!

If it exceeds 50 points, please lower the brightness and ensure that the total lamp current is used below 1.5A!

If the current exceeds 50 points and 1.5A, it will cause abnormal functions. This is a normal phenomenon and is not a quality problem. If you mind, don’t buy it! If you buy it, you agree to these terms and conditions!
