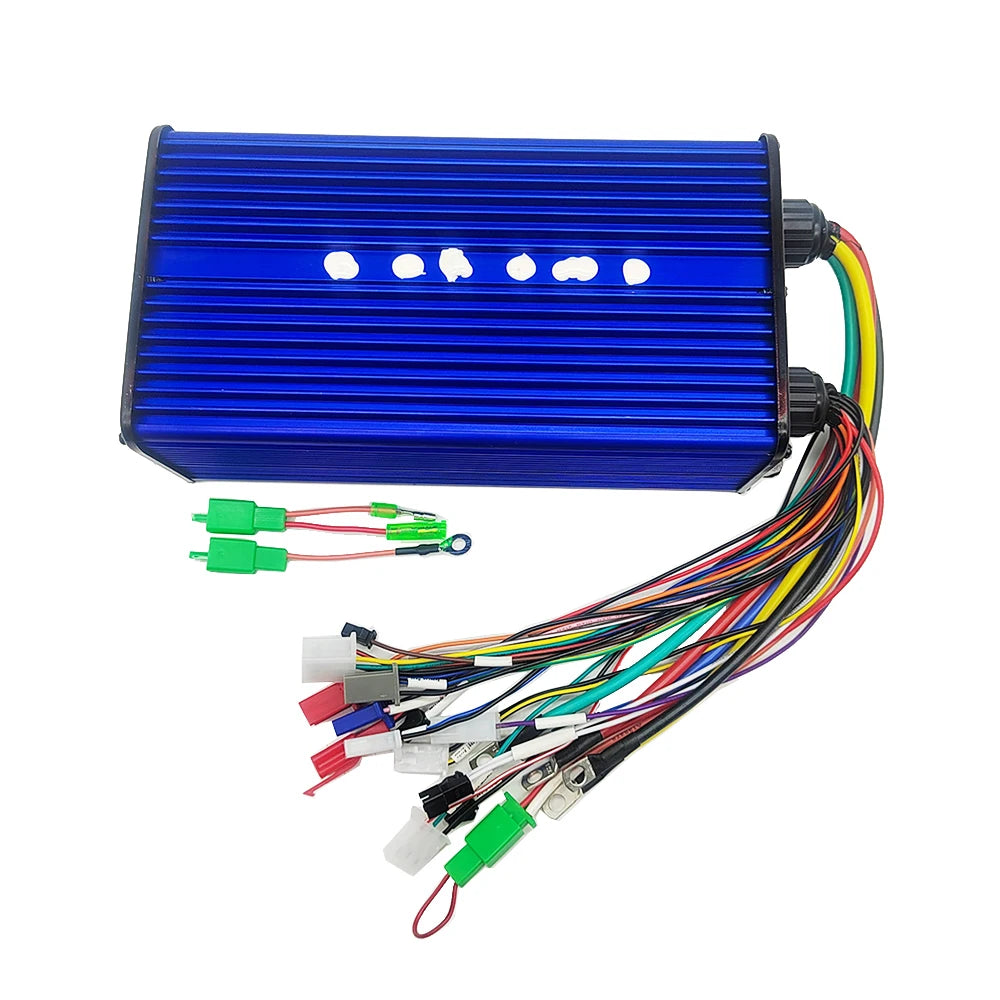

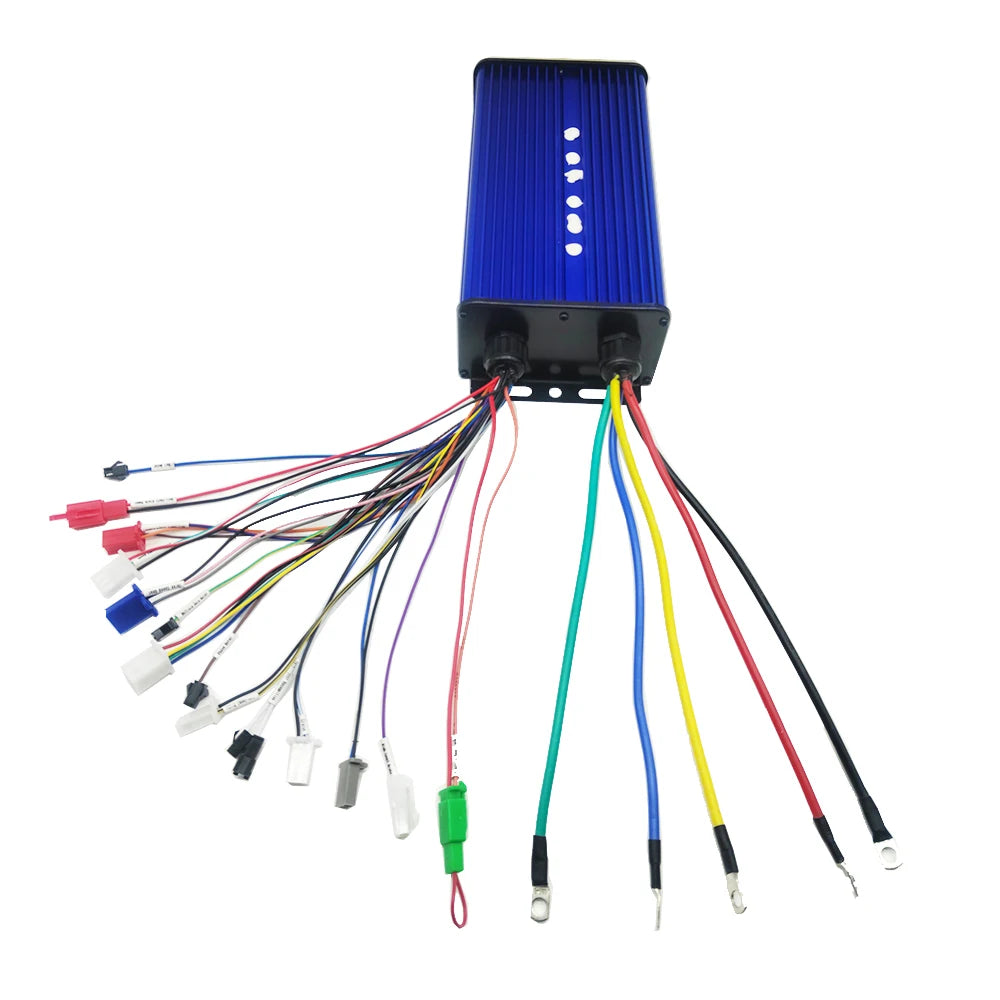

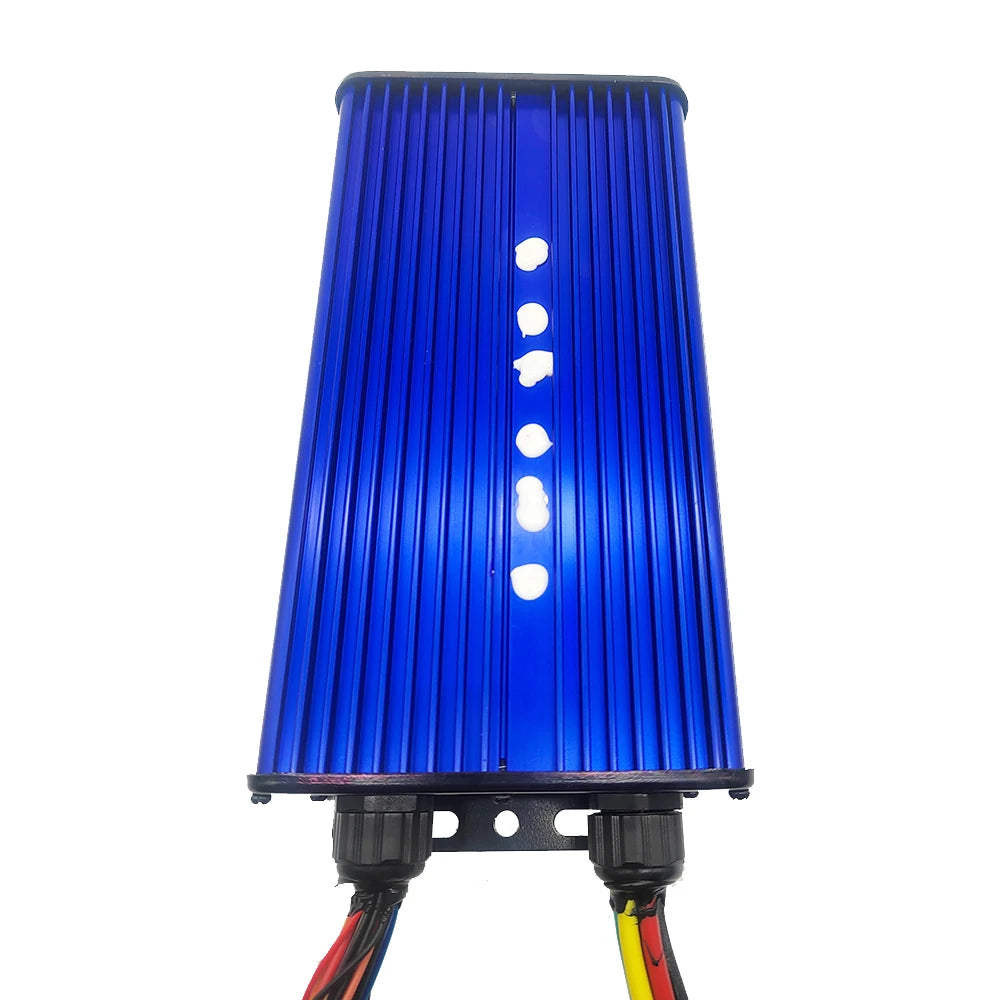

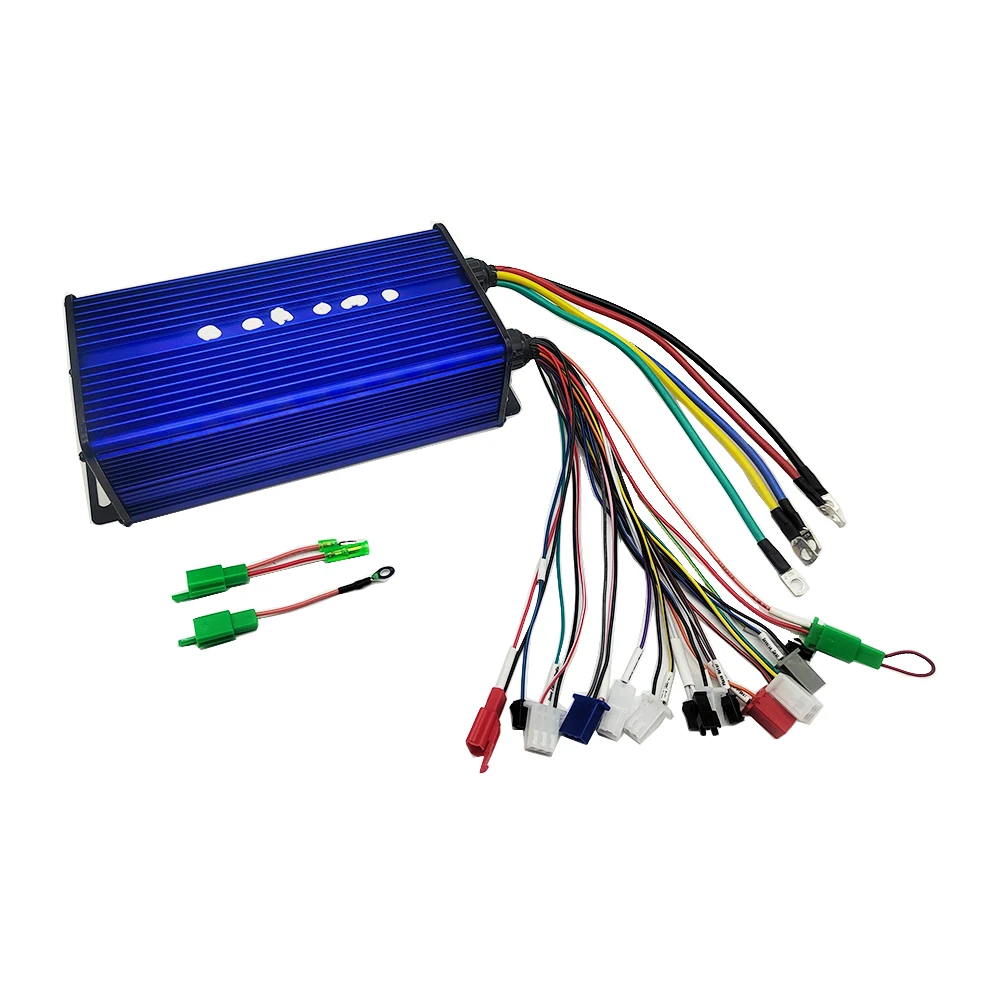

Electric Vehicle Brushless Motor Controller 3000W-5000W 48V 60V 64V 72V 84V 100A For E-Bike Motor Motorcycles Spare Accessories
Electric Vehicle Brushless Motor Controller 3000W-5000W 48V 60V 64V 72V 84V 100A For E-Bike Motor Motorcycles Spare Accessories
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
Type: Controller
brushless controller: Dual-mode 24 tubes
maximum current: 100A
power: 3000W-5000W
use: electric bike/tricycle/scooter/brushless motor
voltage: 48V/52V/60V/72V/84V
48V-84V 3000W-5000W 60A-100A brushless controller work with hall sensor/not have hall sensor

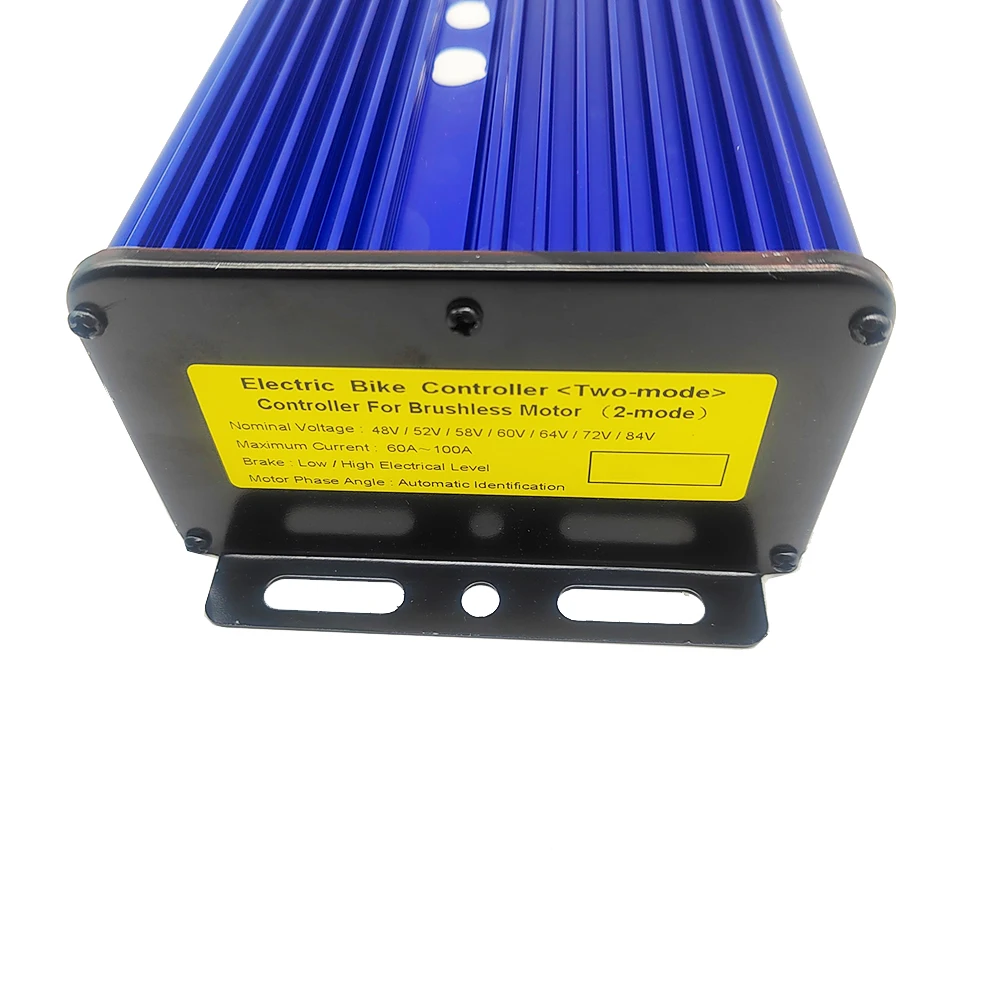

Name: Intelligent dual-mode brushless controller
Power: 3000W-5000W
Voltage: 48V-84V
Current limit: 60A-100A
Undervoltage: automatic identification
MOS tube: 24mos
Phase: automatic identification (60 ° / 120 ° all can fit)
Brakes: low brake / high brake

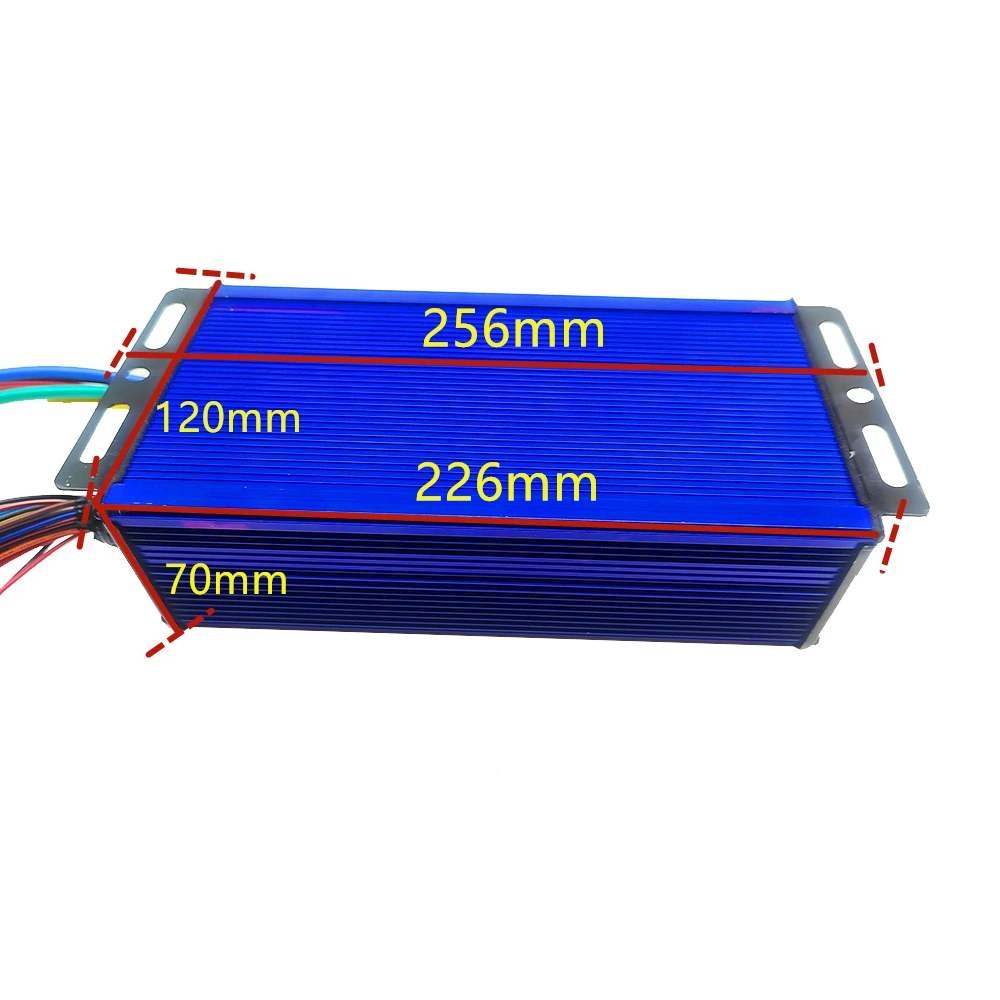

Size: 225 * 118 * 68 mm

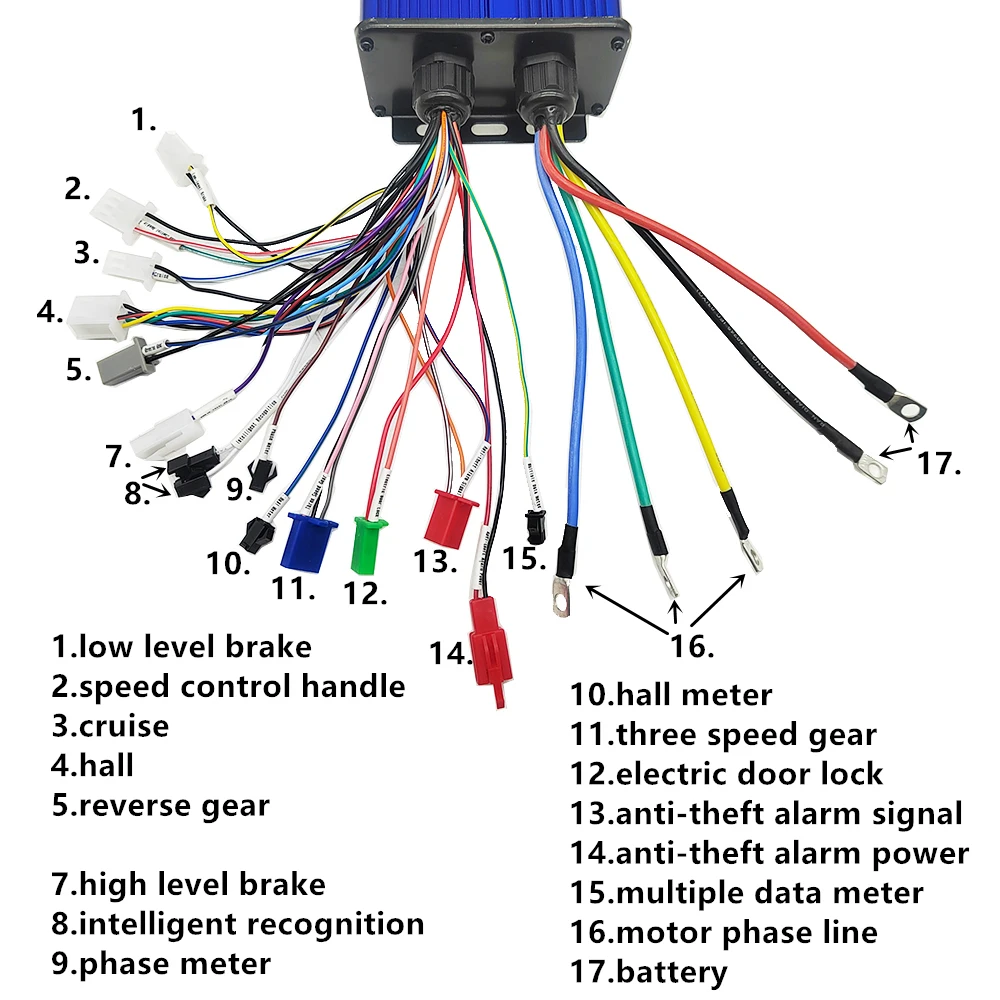

Brushless controller function：
1.low level brake
2.speed control handle（throttle）
3.cruise
4.hall
5.reverse gear
7.high level brake
8.intelligent recognition（self-learning）
9.phase meter
10.hall meter
11.three speed gear
12.electric door lock（must connect）
13.anti-theft alarm signal（is connect to alarm，if not have alarm，not need connect）
14.anti-theft alarm power（is connect to alarm，if not have alarm，not need connect）
15.multiple data meter
16.motor phase line
17.battery
How to connect controller？
1.connect the motor phase line(color to color）
2. connect the battery line(red:battery+ , black:battery-)
3. connect the controller throttle to throttle and need color to color connect,
connect controller electric door lock to throttle electric door lock
（if throttle not have electric door lock, controller electric door lock docking,
so controller electric door must connect ）
4. connect the hall line(if motor without hall line, don't need connect)
5.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.
(1.if wheel forward ,Separate the intelligent recognition line.
2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)
This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.
NOTE:when use throttle control speed,two intelligent recognition line must separate.
6.other functions can be connected as needed.
