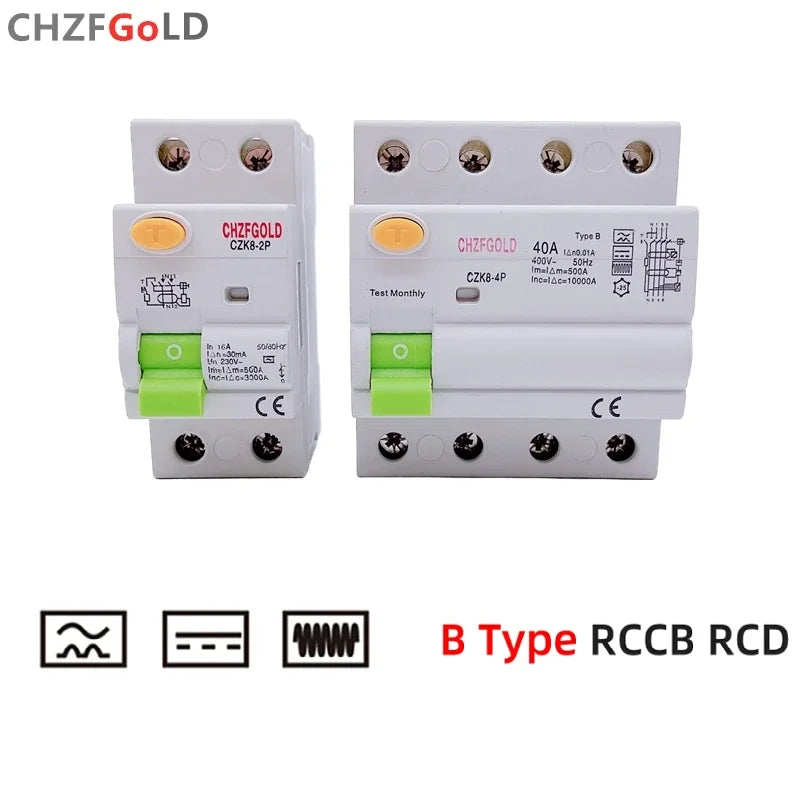

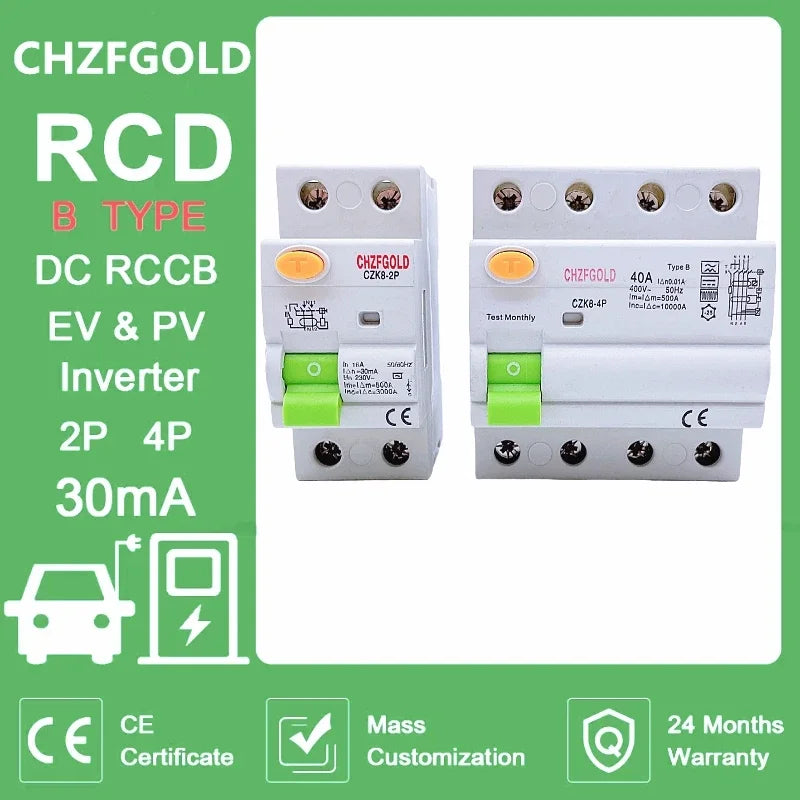

Electric Vehicle EV Charging Pile Residual Current breaker DC RCCB RCD 2P/4P 63A 30mA Type B 6KA CHZFGOLD Din Rail Earth Leakage
Electric Vehicle EV Charging Pile Residual Current breaker DC RCCB RCD 2P/4P 63A 30mA Type B 6KA CHZFGOLD Din Rail Earth Leakage
SPECIFICATIONS
Brand Name: NONE,CHZFGOLD
Breaking capacity: 6 KA
Certification: CE,CE,CB
Electro-mechanical endurance: More than 15000 cycles
High-concerned chemical: None
Is Smart Device: No
Model: Type
Model Number: CZK16,CZK6
Origin: Mainland China,Mainland China
Rated Voltage: 220V
Rated frequency: 50/60Hz
Rated residual operating current: 30 mA
Rated voltage: 230V/400V
Residual Current characteristic: B type
Type: Earth Leakage,Circuit breaker,Earth Leakage
is customized: Yes
is_customized: Yes
-
General

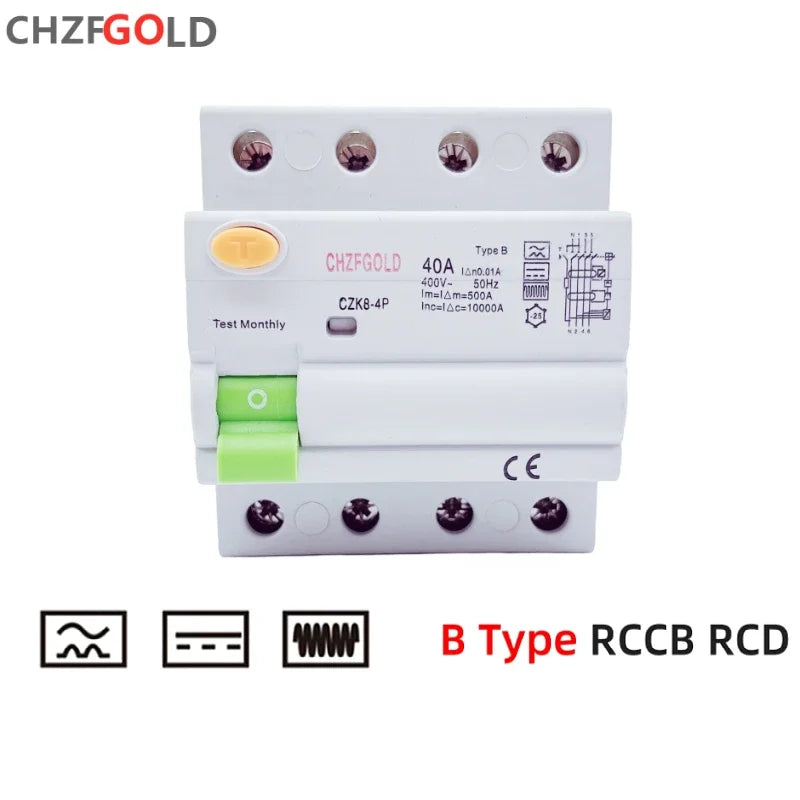

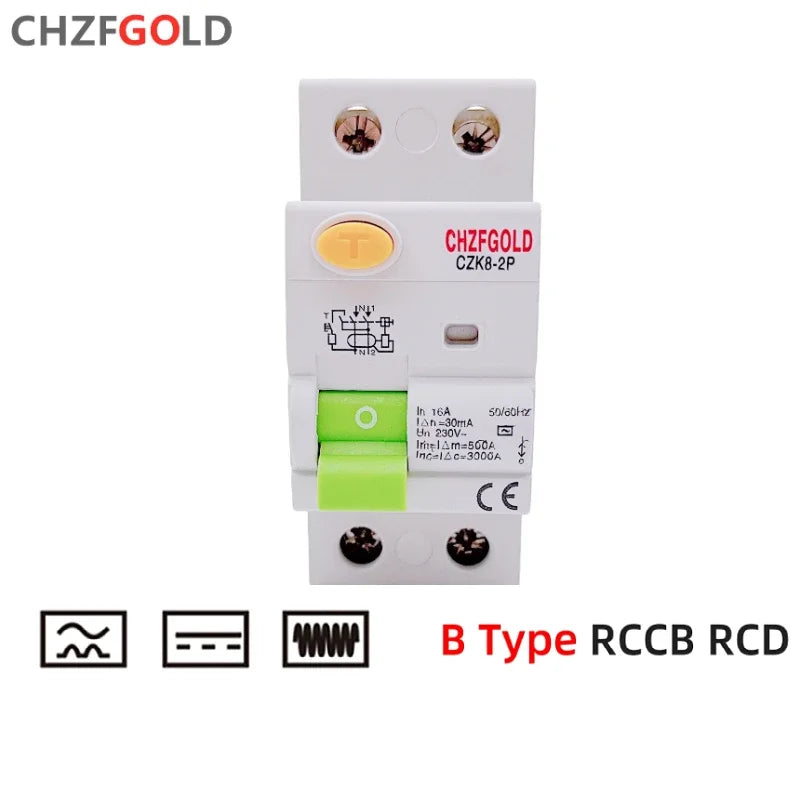

This is B Type Residual Current Circuit Breaker
-
Tip: Please noted the input MUST from TOP side, or will damage the product.
Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.
View 'B' Type
-
EV & PV installationsFrequency convertersUPS installationsHigh-frequency power convertersBuilding site power supply cabinets1.1 Function
-
Control electric circuits.Protect people against indirect contacts and additionalprotection against direct contacts.Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing, tertiarysector and industry
-

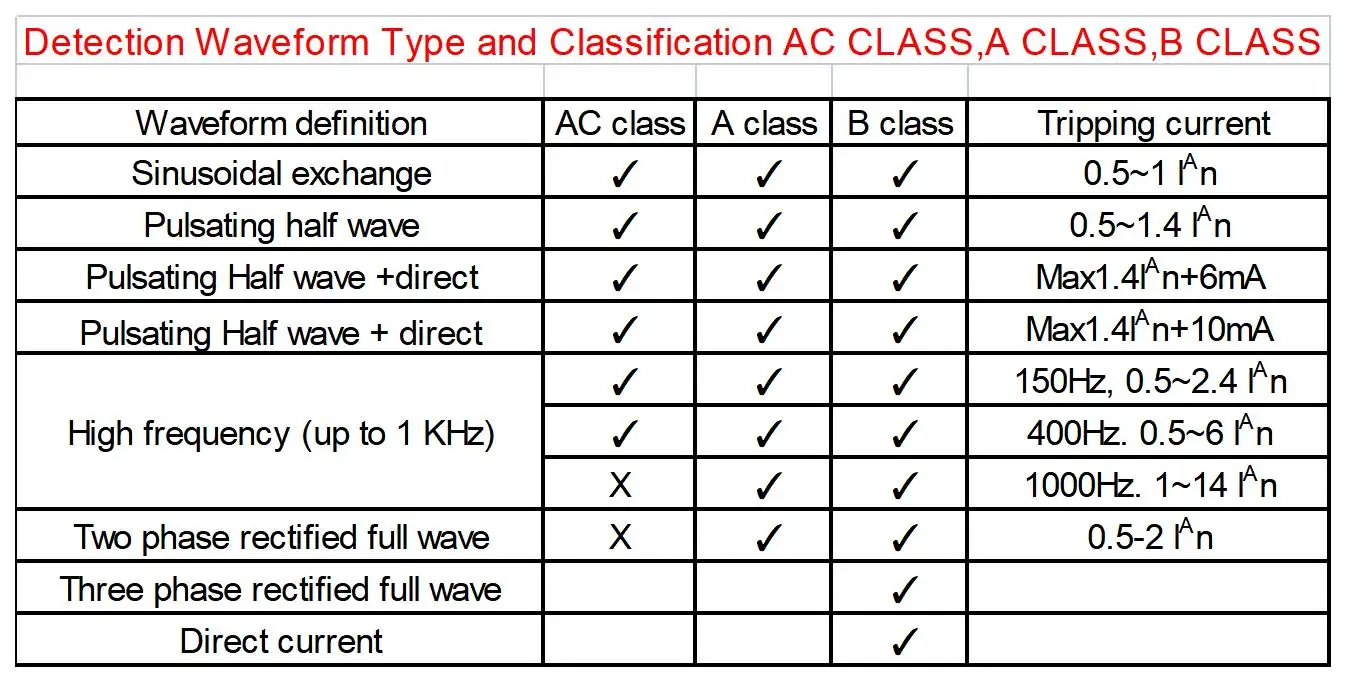

1.2 SelectionDetectable wave formB classTripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents,alternatingresidual sinusoidal currents up to1000Hz, pulsating direct residualcurrents and for smooth directresidual currents, whether applied suddenly or increasing slowly.Tripping sensitivity30mA -additional protection against direct contact.Tripping timeInstantaneous
It ensures instantaneous tripping (without time- delay).
-

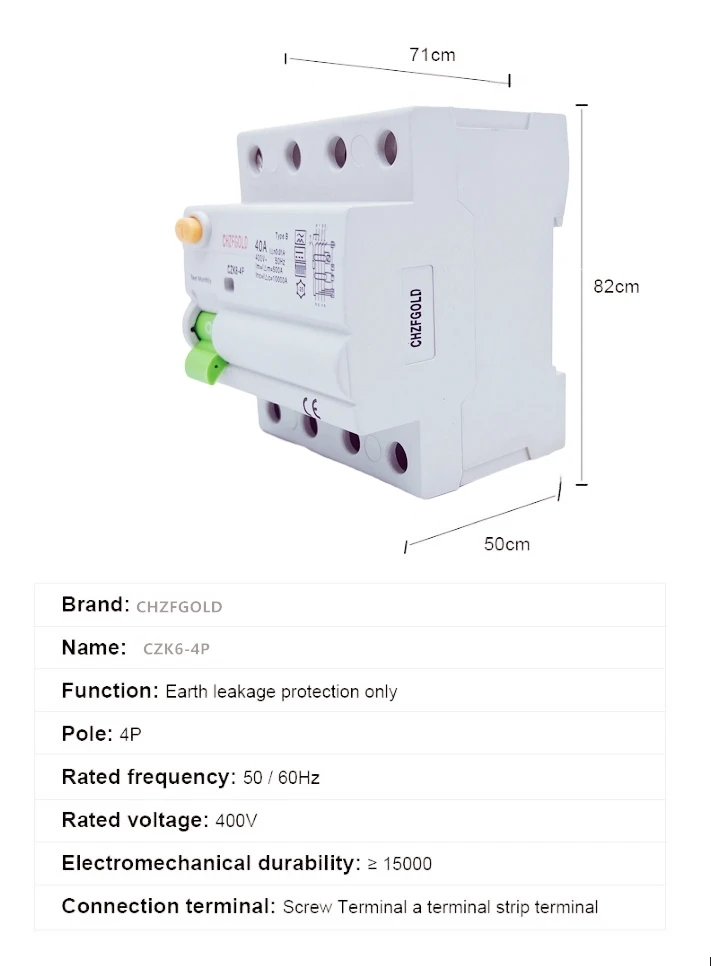

Model Name
CHZFGOLD
Model
Electromagnetic Type
Residual Current characteristic:
B type
Pole No:
2P /4P
Rated making and breaking capacity
630A
Rated current(A)
63A
Rated voltage
230V/400V
Rated frequency
50/60Hz
Rated residual operating current |△(A):
0.03
Rated residual non operating current |△ no:
0.5|△ n
Rated conditional short-circuit current inc:
6kA
Rated conditional residual short-circuit current |△c:
6kA
Tripping duration:
Instantaneous tripping ≤0.1s
Residual tripping current range:
0.5||△n~|△n
Electro-mechanical endurance
≥20000 cycles
Connection capacity:
Rigid conductor 25mm⊃2;
Connection terminal
Screw terminal
Pillar terminal with clampFastening torque
3.5 Nm
Installation
On symmetrical DIN rail 35mm
Panel mounting

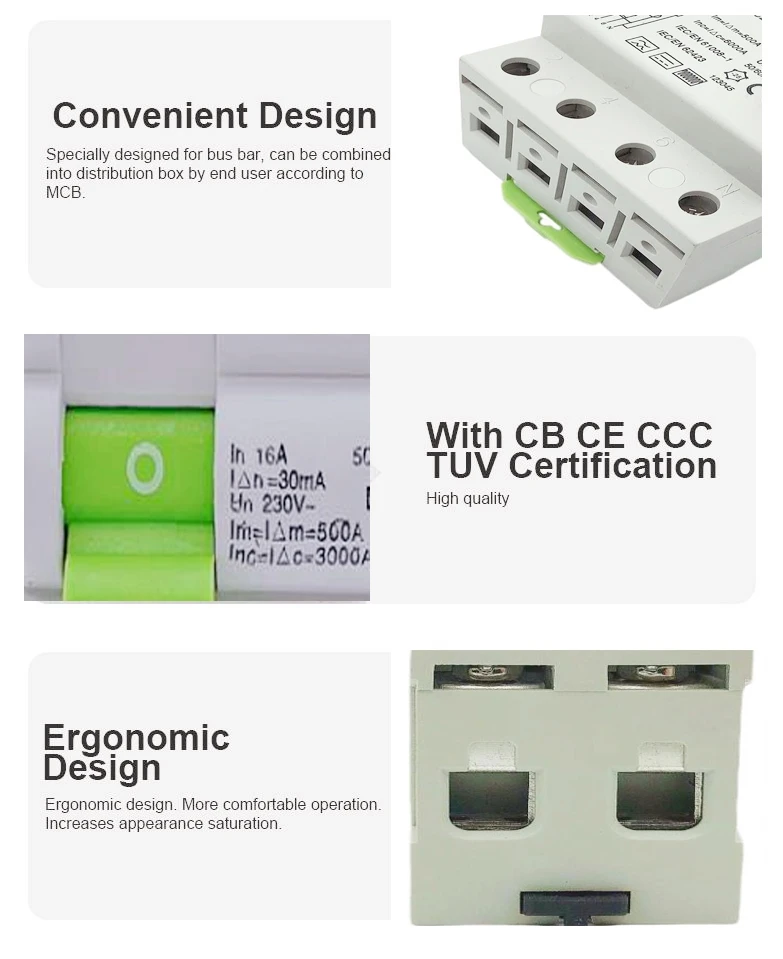

Quality And Safety
CE Certification/FLame Retardant Enclosure/Clip Design
Comfortable Handle/PrecisionManufacturing/Durable
Are You Worried?
About These Problems
1.Electric Shock.
2.Charging Pile Cannot Be Matched AC Tpye.

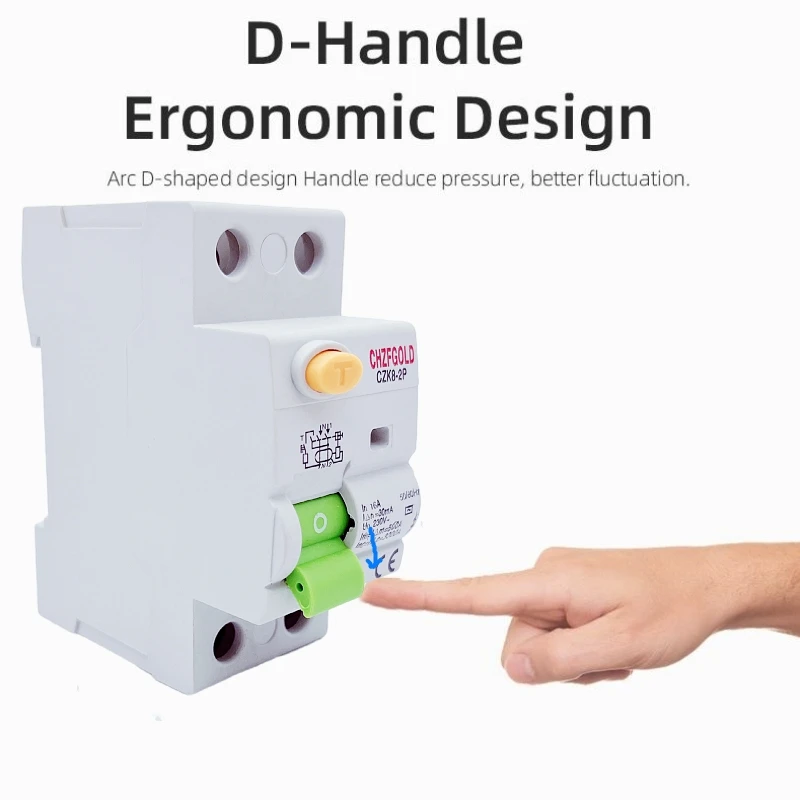

Ergonomic design handle
Curved D-shaped handle reduces pressure and has better volatility. fluctuation
Ambient Temperature
Strong Adaptability
Meet the application requirements in various occasions.
+85℃ High temperature environment
-40℃ Low temperature environment
Residual Current Circuit Breaker
Keep Your Electricity Safety At All Times
Easy control
Low voltage distribution.
Electrical life is more than 10000 times Easily control the line setting on the market.
MECHANICAL LIFE 30000+
ELECTRICAL LIFE 18000+

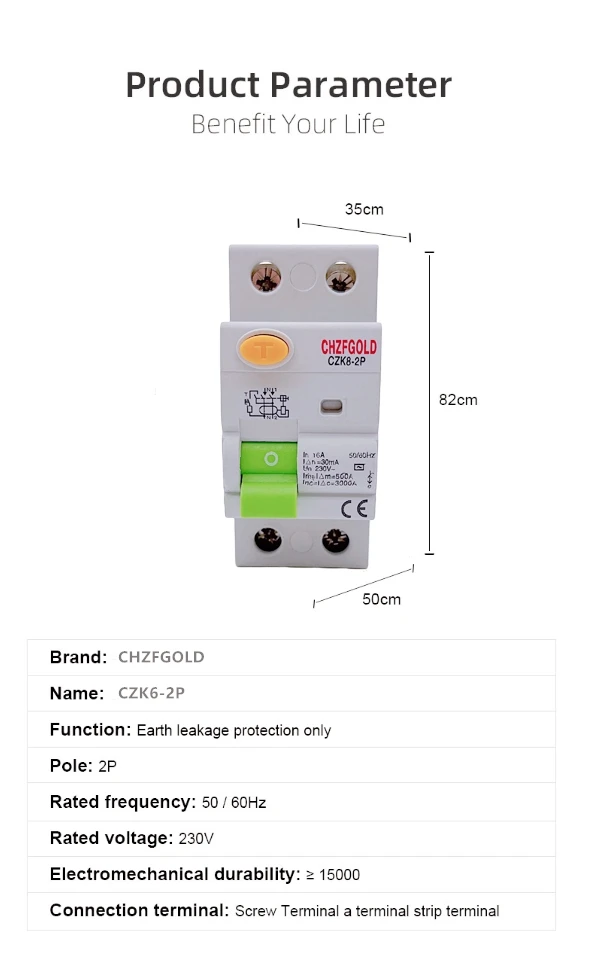

Product Parameter
Benefit Your Life

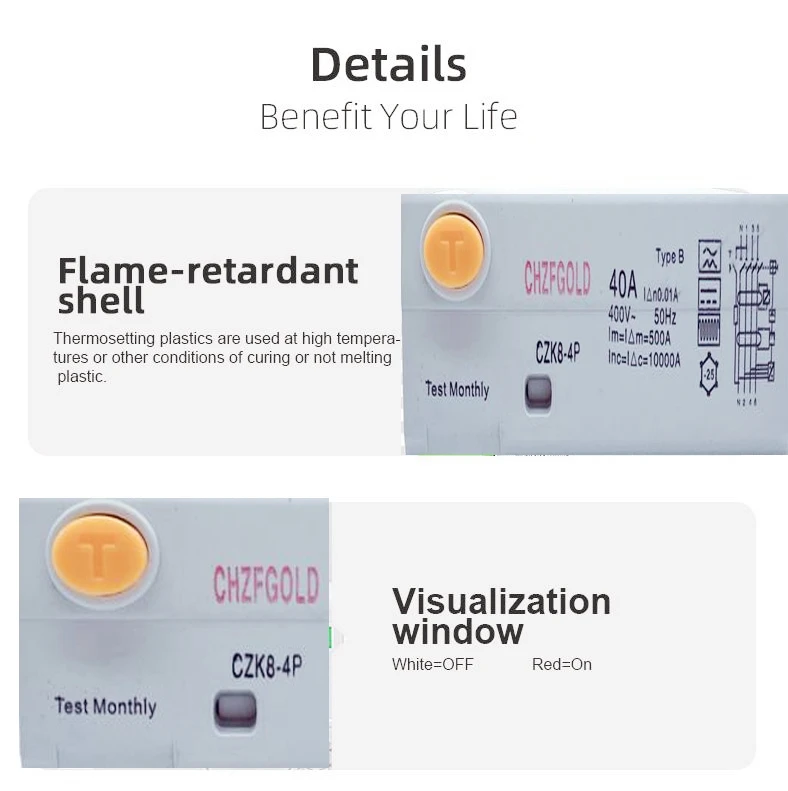

Details
