note :Please do not place the order ，if your controller that supports one-line communication and RS485 protocol.

This display only supports phase-line speed display ，is not compatible with any protocol, including RS485, CAN, UART protocols, .

Feature:

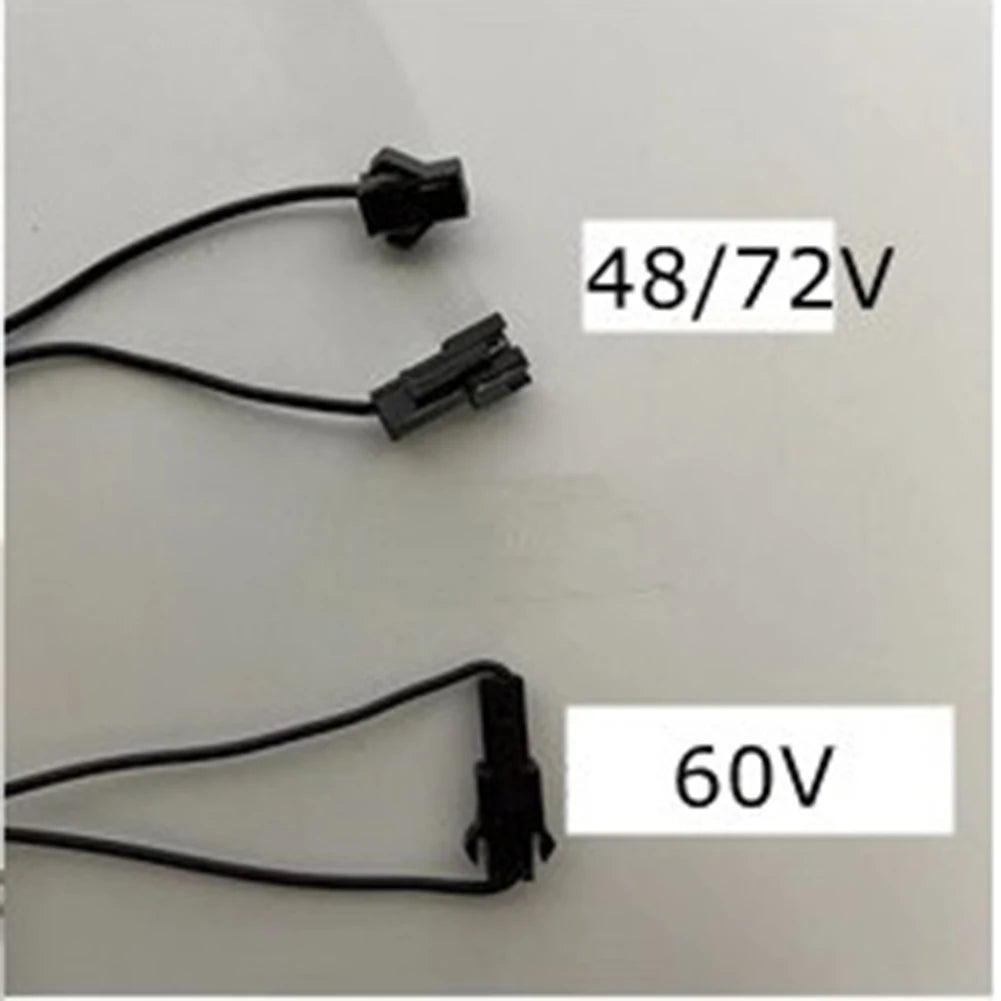

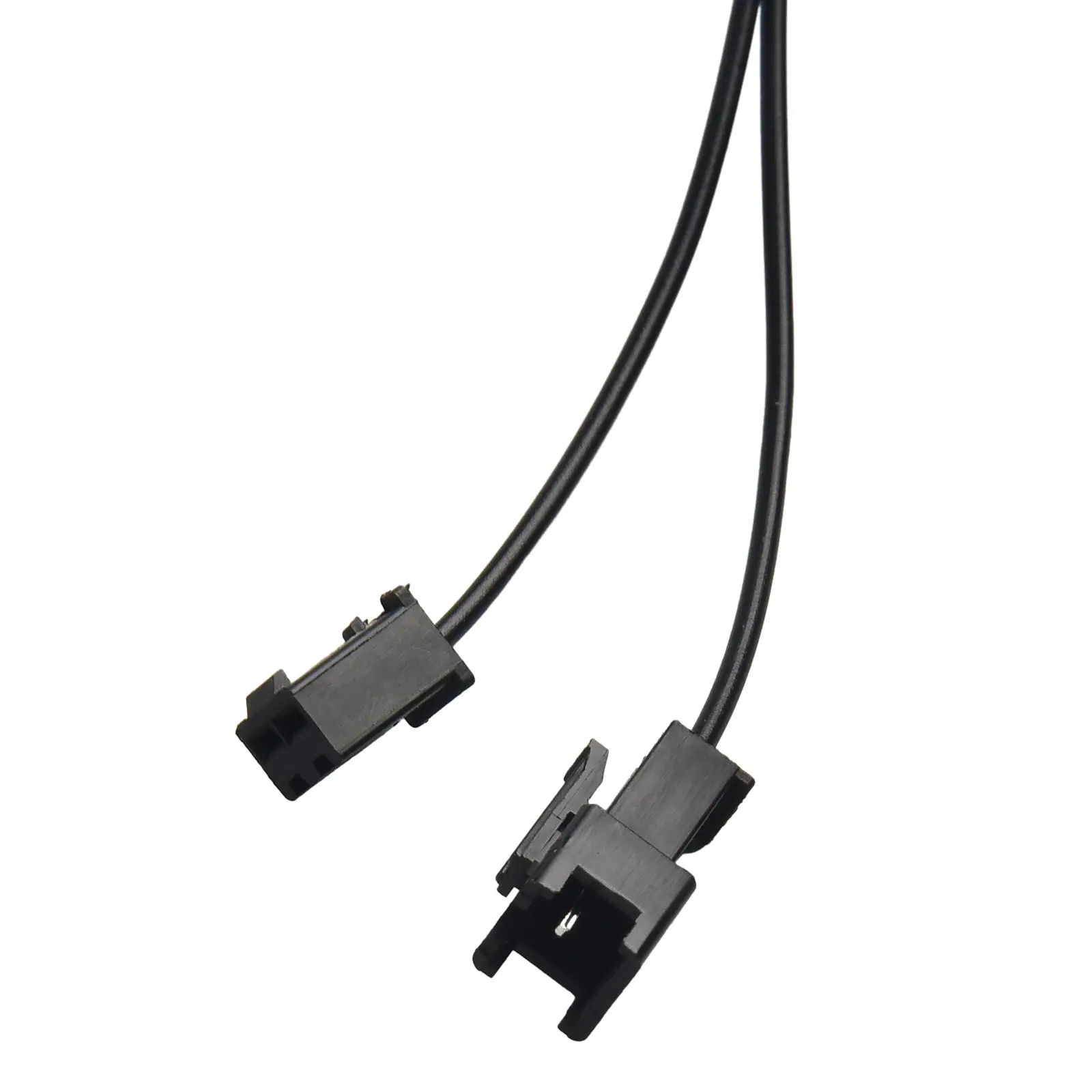

*Used to replace electric  tricycle bike part，for 48V-72V ,can be Switch with the black cable

* only supports phase-line speed display,do not support rs485 can uart

*design for ebikes ,scooters  ，Electric tricycle electric vehicle digital meter tram LED assembly repair

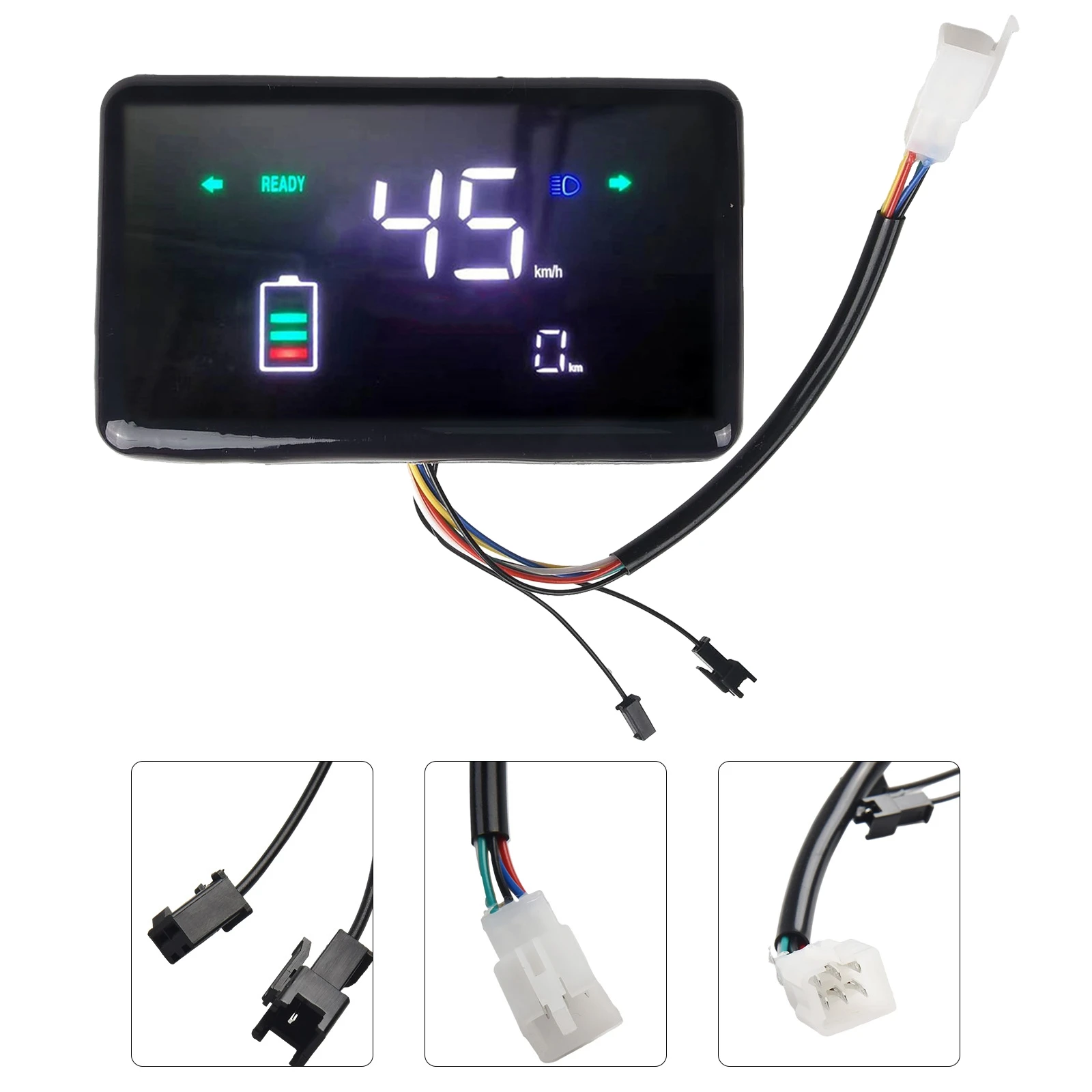

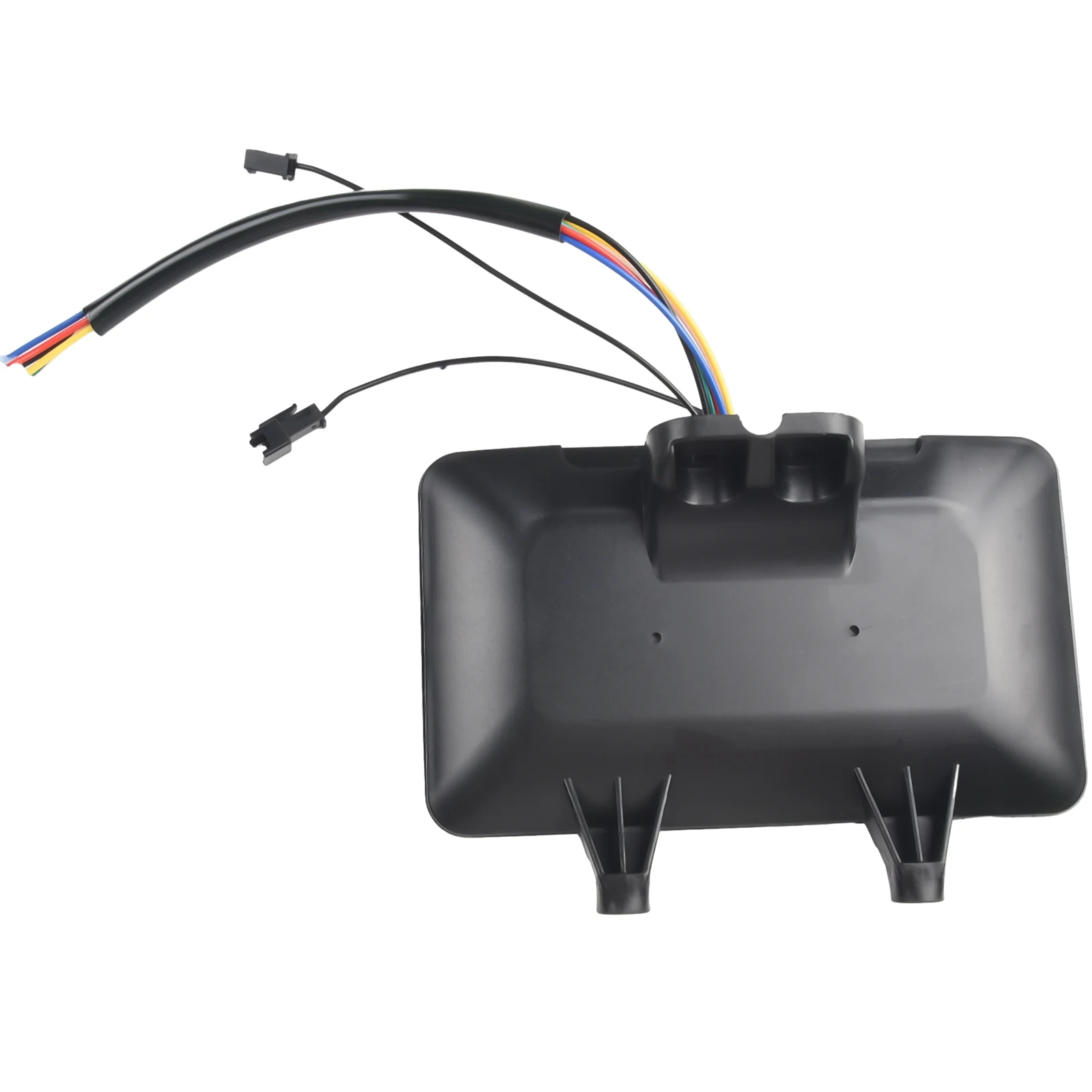

*easy to use and install,6PIN interface，include Blue line left turn，Green line turn right，Red positive electrode，Black negative，Yellow velocity，White headlight，good compatibility

Specifications:

product name: ebike display

Color: black

Material: abs

size:approx 16cm x9cm

MAX speed display:99KM /H

interface:6pin

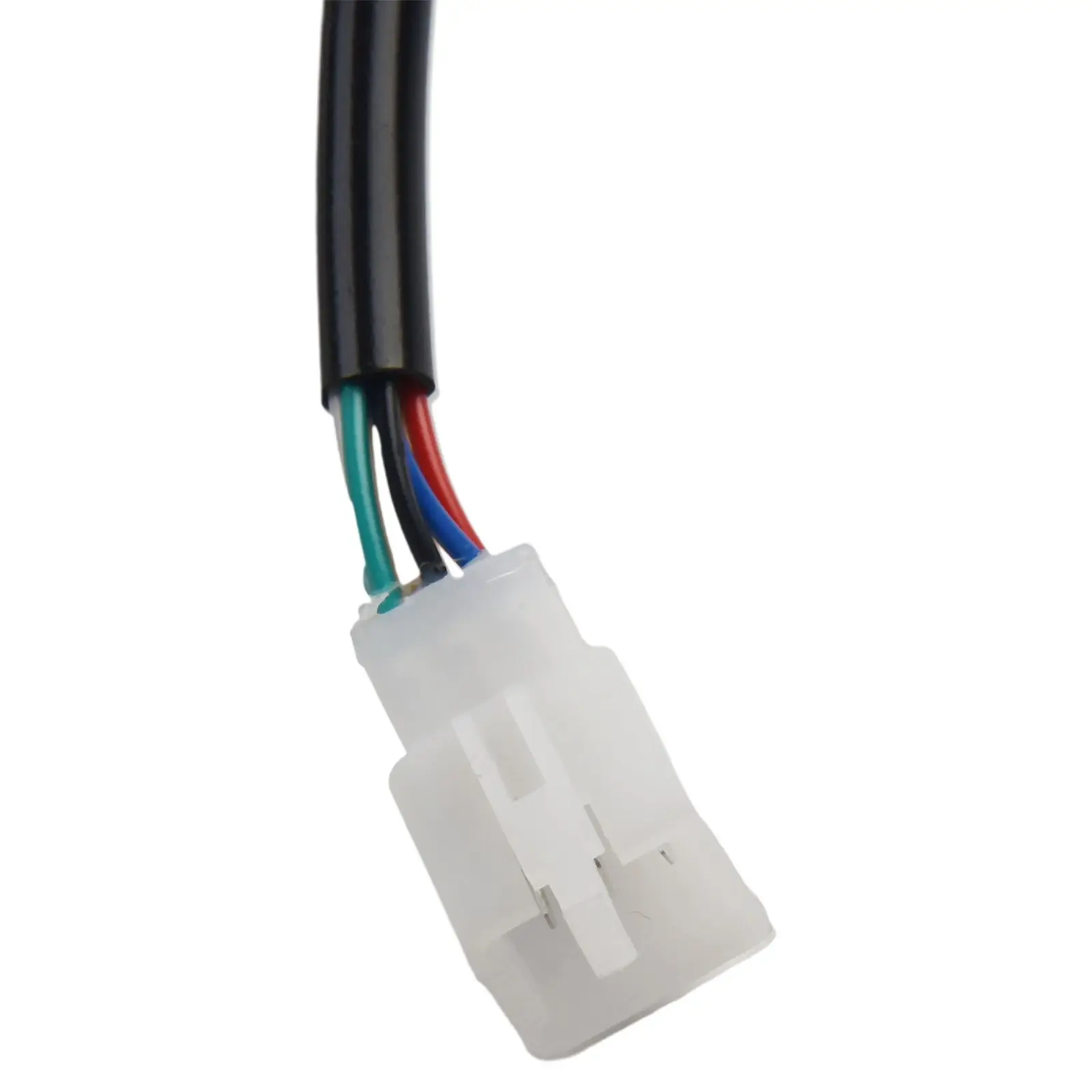

Interface definition ：

Blue line ：left turn
Green line ：turn right
Red ：positive electrode
Black： negative
Yellow： velocity
White： headlight

line length： approx 26Cm

Working voltage:48-72v

Temperature range:-20-150C

Specification of wind deflector screws:M5x15MM

Package content:

1x display

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
