SPECIFICATIONS

Brand Name: OLOEY

CPSI: 200

Material: Silicon carbide

Medol: DPF

Origin: Mainland China

PCS: 1

Packaging Details: Neutral packaging

Product name: DPF catalytic converter

Quality: High

Size: 144*152mm

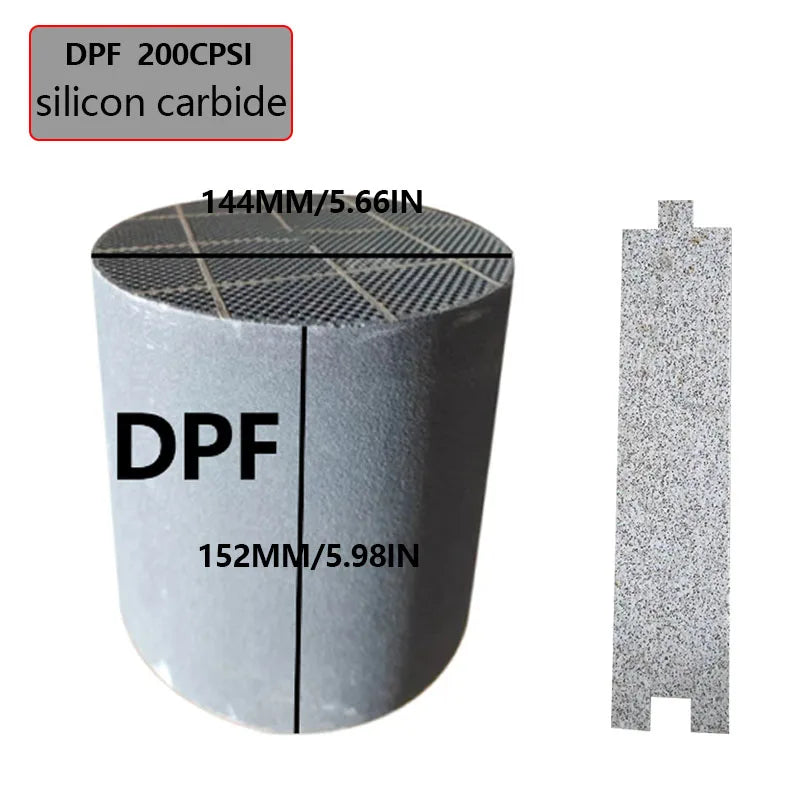

Universal SiC DPF Silicon Carbide Catalyst Diesel Particulate Filter

Product Description

Product name :  DPF  catalytic converter

Material : Silicon Carbide DPF

Size:

Diameter : 144MM

Height : 152MM

CPSI : 200CPSI

Note : Since there are many product sizes and many models, please allow us to have +-1mm error, I hope buyers can understand

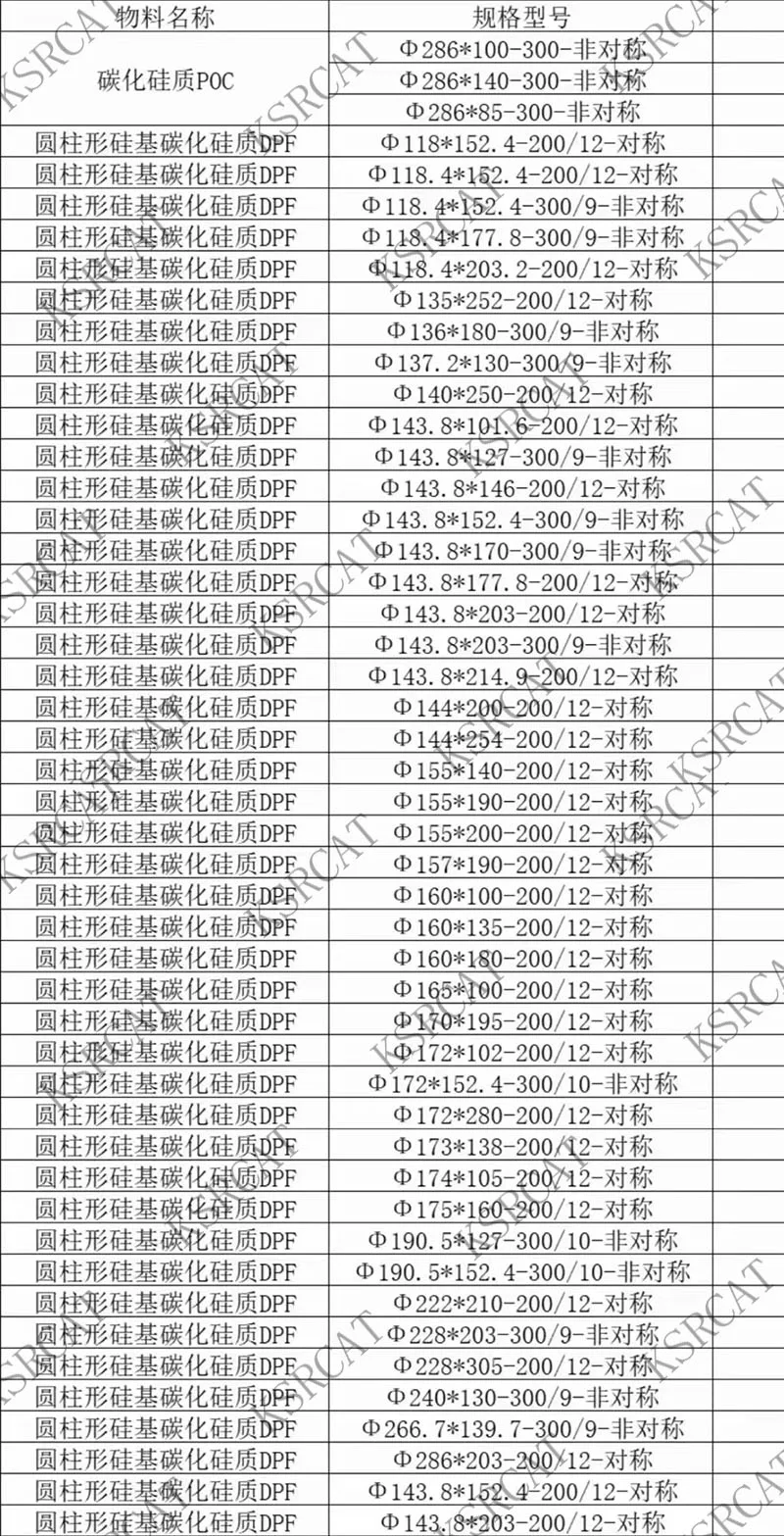

About our warehouse stock list

About the product :

Diesel particulate filter (DPF) is also called wall flow filter, whose materials are cordierite or silicon carbide. It adopt opening and blocking up passages in both ends and the exhaust gas flow through the porous beehive wall to filter particles, can effectively remove particulate matter(PM) and soot from diesel engine exhaust emission, its efficiency for carbon particulates filtration is more than 90%.

Diesel particulate filter can be widely used in different industrial fields such as transportation, generating units, engineering machinery and metallurgy etc. The system installed diesel particulate filter been examined for urban bus, forklift, truck & mining constructing equipment.

Advantage of diesel particulate filter:

1. Low pressure drop.

2. Low coefficient of thermal expansion.

3. Good thermal shock resistance.

4. High temperature resistance, good resistance to chemical corrosion.

5. High porosity, pore size distribution uniform, high filter specific surface area.

6. Long-term durability performance.

7. High particulate trapping efficiency, suitable for all kinds of regeneration.

If you want know more things about the DPF, please contact us directly, I will do my best to service for you.

Cordierite DPF:

The most common filter is made of cordierite. Cordierite filters provide excellent filtration efficiency, are relatively inexpensive (comparison with Sic wall flow filter). The major drawback is that cordierite has a relatively low melting point.

Physical & Chemical Properties of Cordierite Diesel Particulate Filter:

Silicon Carbide DPF:

Silicon carbide diesel particulate filters (Sic wall flow filters) have a higher melting point and filtration efficiency (can be up to 95%) than cordierite, they are usually more expensive than cordierite wall flow filters.

Technical data of Sic Diesel Particulate Filter:
