Micro 10mm*12mm N20 Motor DC 3V 3.7V 6V 9V 12V High Speed Single/ Dual-shaft Large Torque DIY N-scale Toy Car Electric Engine
Micro 10mm*12mm N20 Motor DC 3V 3.7V 6V 9V 12V High Speed Single/ Dual-shaft Large Torque DIY N-scale Toy Car Electric Engine
SPECIFICATIONS
Brand Name: NONE
Certification: None
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Country/Region of Manufacture: China
Efficiency: IE 1
High-concerned chemical: None
Model: High Speed Mini DC Motor
Model Number: N20
Origin: Mainland China
Protect Feature: N
Type: Five Pole Rotor Motor,Micro Motor
semi_Choice: yes

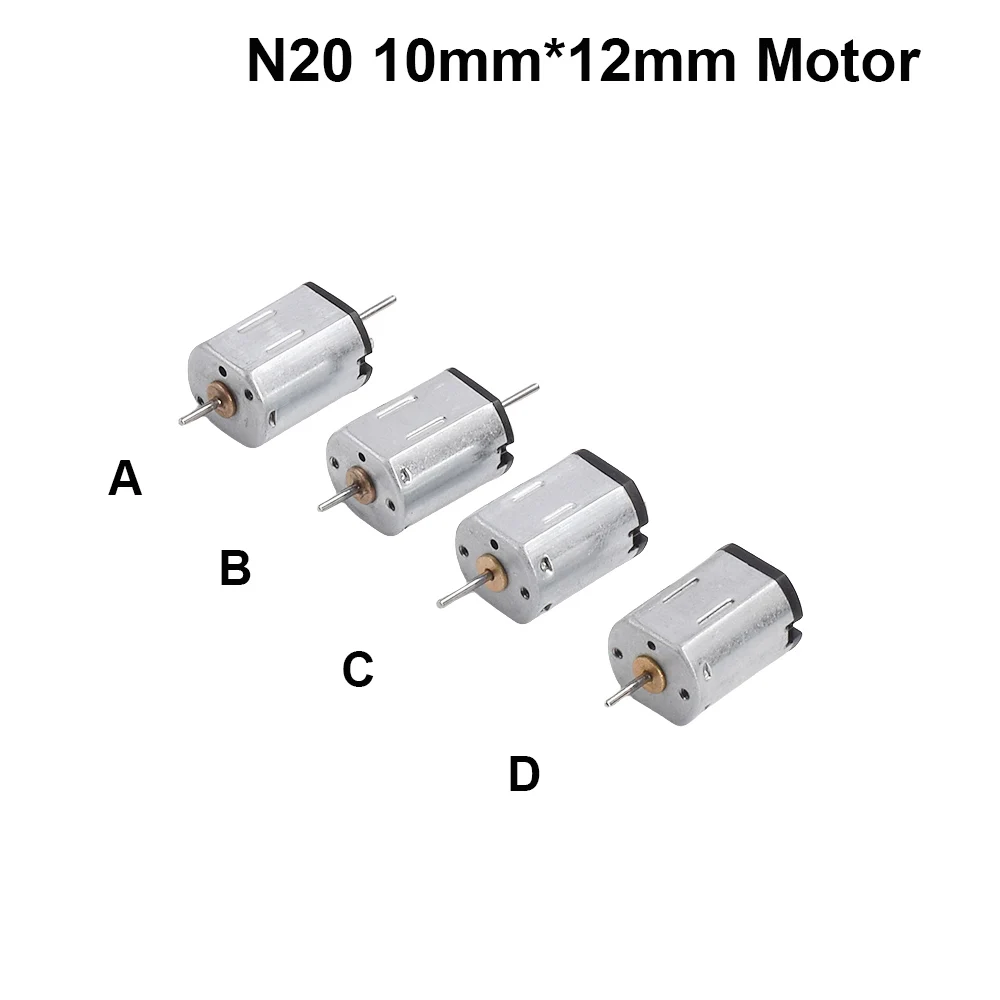

Specification:
Model A/ Model B ( Metal Brush Motor ) dual shaft. DC 6V-12V
Model C/ Model D ( Carbon Brush Motor ) single shaft. DC 3V-6V

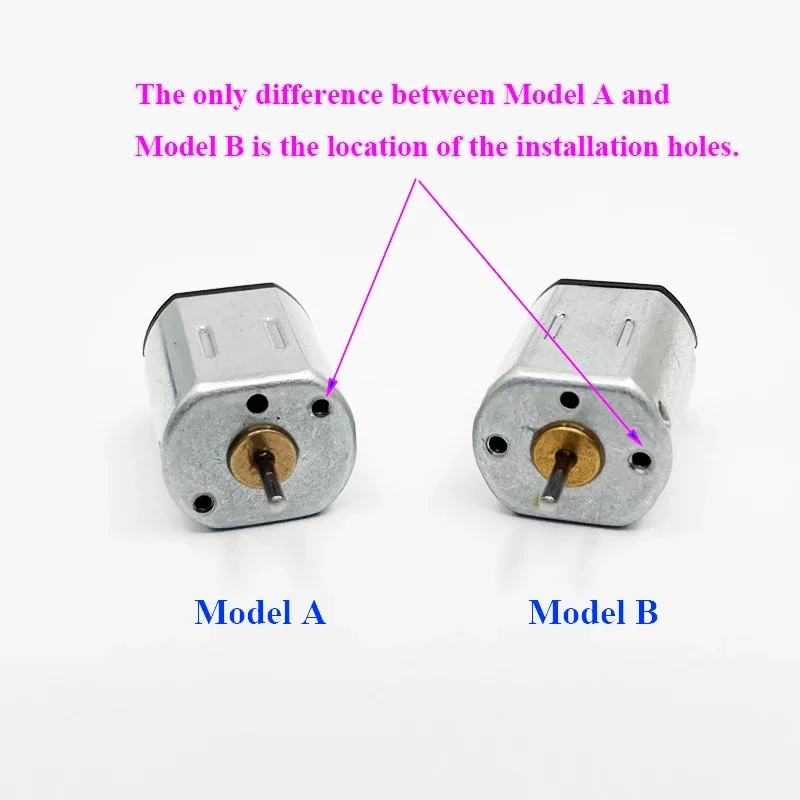

Notes: The Model A and Model B difference is only the location of the installation holes.

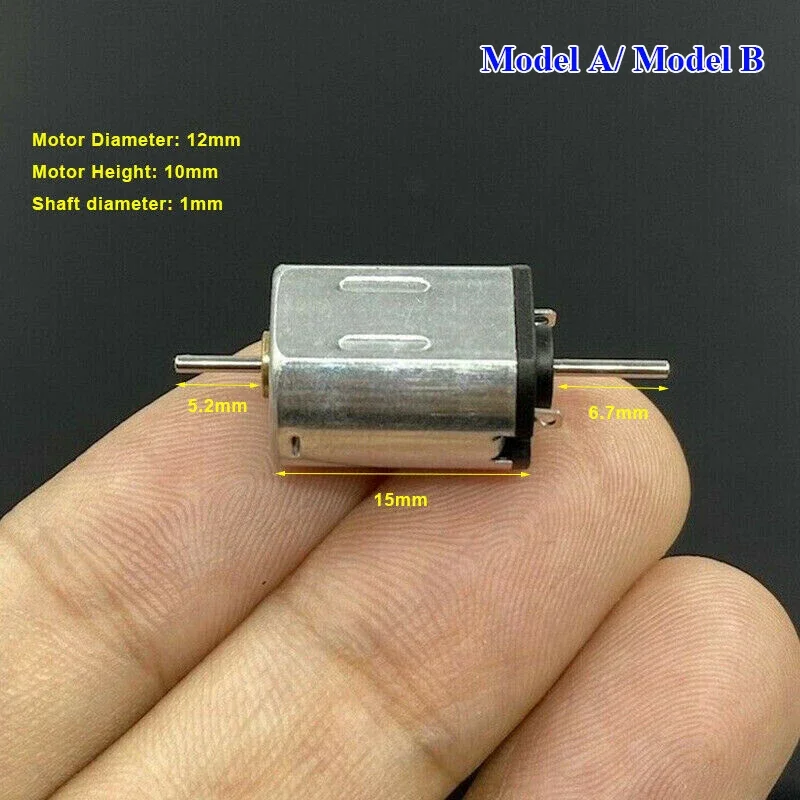

Model: N20 motor
Body length: 15MM
Body diameter: 12MM
Motor height: 10mm
Shaft diameter: 1MM
Shaft length: front 5.2mm, back 6.7mm back shaft
[Voltage]: 3.0V-12V
Voltage Speed (no load) Current
3.0V 4600rpm 15 ma
6V 10000 rpm 20ma
9V 15000rpm 25ma
12V 20000rpm 30ma

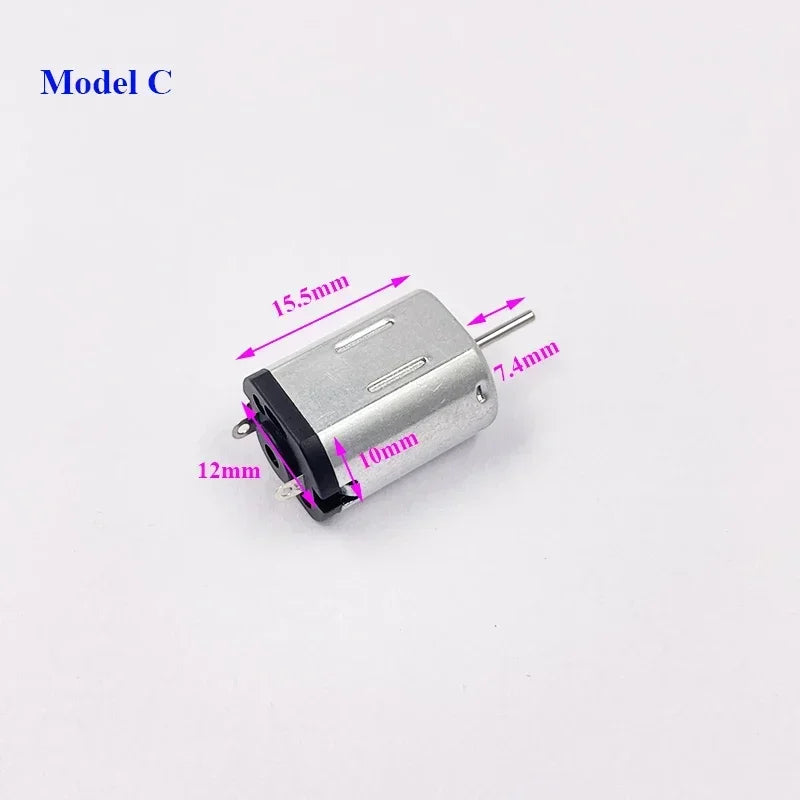

Model C ( Carbon Brush Motor )
Model: FK-N20
Motor size: 15.5mm*12mm*10mm
Output shaft diameter: 1.0mm
Output shaft length: 7.4mm
Weight: 6g
Voltage range: DC 3V-5V
Test data:
Voltage:3.0V No-load speed:23000RPM Current:230mA
Voltage:5.0V No-load speed:38000RPM Current:340mA
Model D ( Carbon Brush Motor )
Model: FK-N20
Motor size: 15.5mm*12mm*10mm
Output shaft diameter: 1.0mm
Output shaft length: 6.5mm
Weight: 6g
Voltage range: DC 3V-6V
Test data:
Voltage:3.0V No-load speed:20000RPM Current:150mA
Voltage:3.7V No-load speed:25200RPM Current:170mA
Voltage:5.0V No-load speed:34000RPM Current:180mA
Voltage:6.0V No-load speed:40800RPM Current:200mA
Package:
Motor x 1
