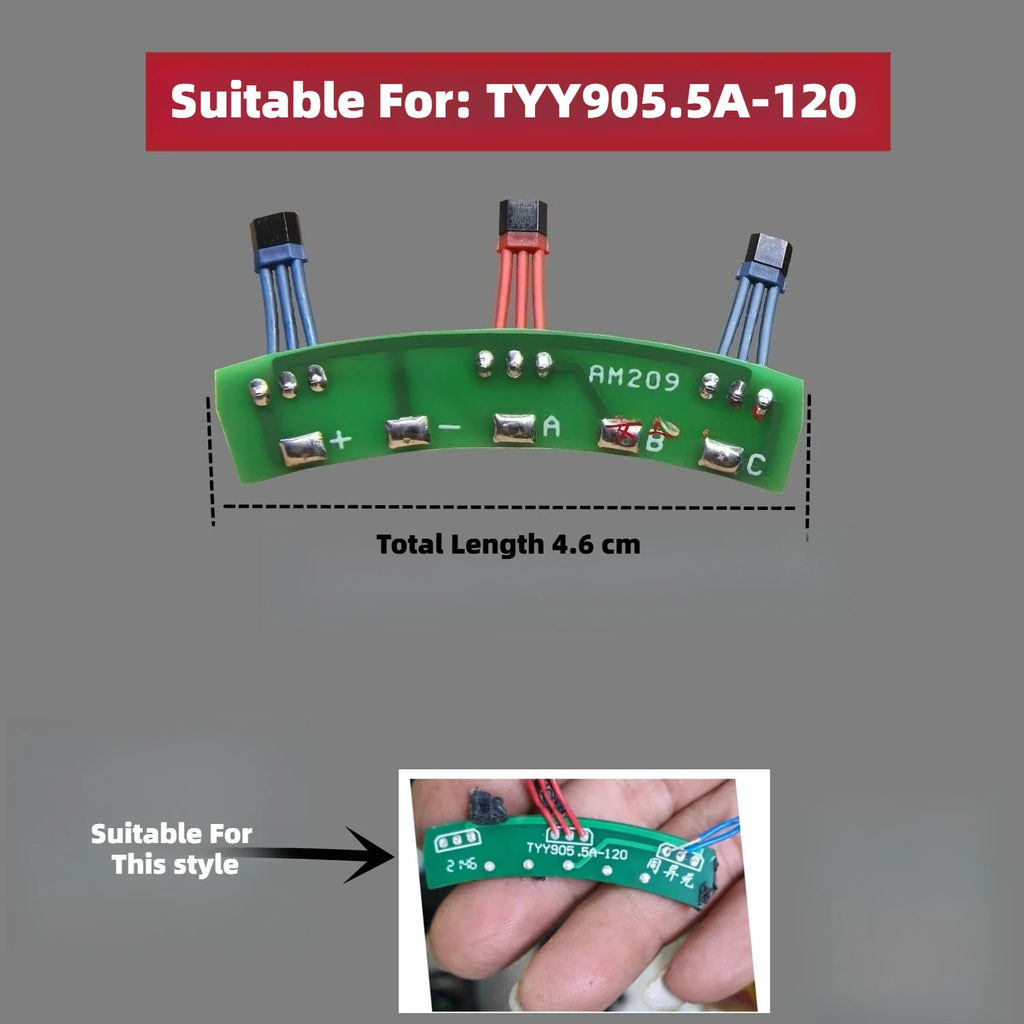

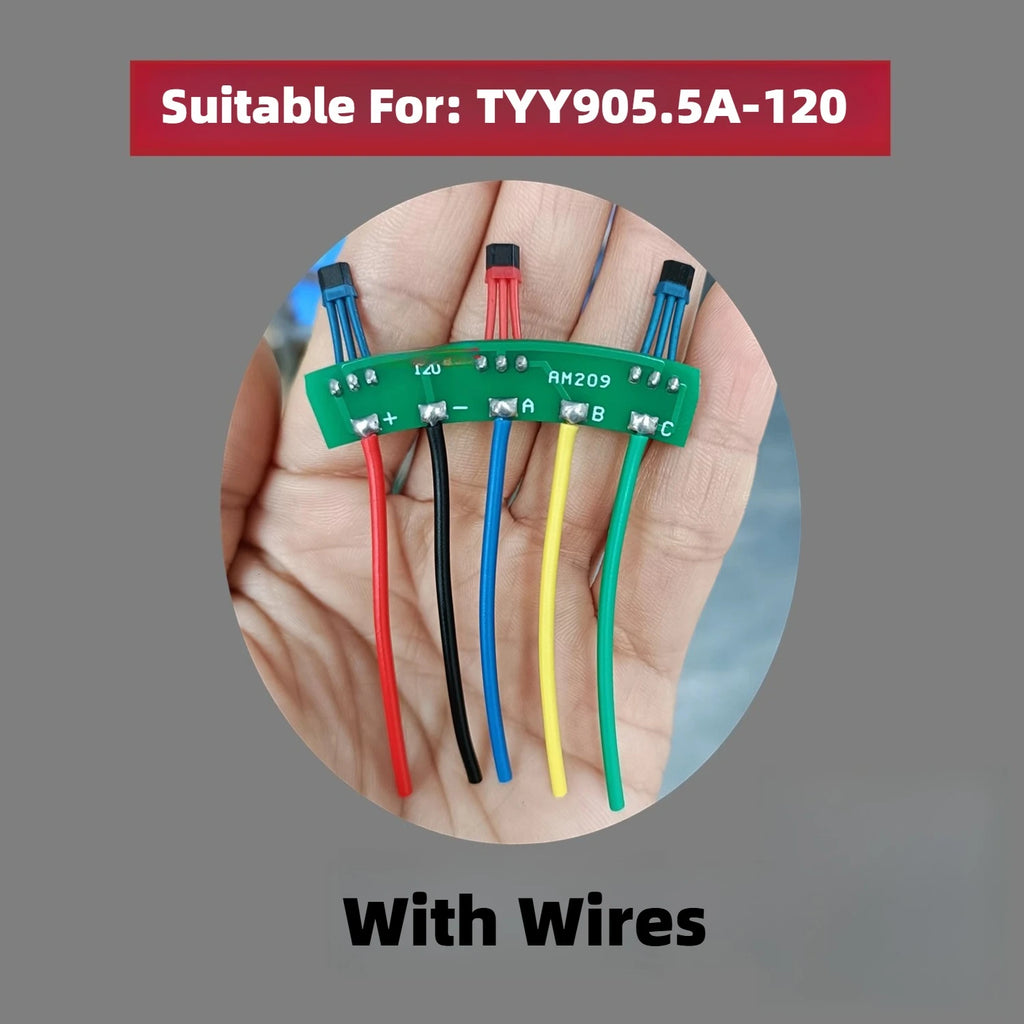

Motor Hall, New National Standard Electric Vehicle Huameng TYY905.5A-120 Identical Element Motor Hall AM209
Motor Hall, New National Standard Electric Vehicle Huameng TYY905.5A-120 Identical Element Motor Hall AM209
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
adapt: TYY905.5-120
Please Note Before Purchase:
Random Sleeve Color: The color of the sleeve on the sensor is shipped randomly.
Sleeve Purpose: The sleeve is solely a plastic bracket used for insulating and protecting the Hall element. The color does not affect performance.
Installation Recommendation: To avoid potential damage caused by improper installation, we strongly recommend having the sensor installed by a professional technician.
-
This product is a component intended exclusively for use by qualified repair technicians. Please note that Hall-effect sensors, unlike many other electronic components, cannot be resold once installed.
If you are not a professional technician or lack specific experience in installing such components, please reconsider your purchase.
Before Installation:
Inspect for defects: Please thoroughly check for any quality issues upon receipt. Contact us immediately if you find any problems so we can assist you.
Test functionality: It is crucial to test the component to ensure it is working properly before proceeding with installation.
Please be advised: Once this component is installed, we cannot accept any returns or exchanges. By installing the unit, you acknowledge that it has been tested and is functional, voiding any return eligibility
⚠️ Crucial: Measurements MUST be taken BEFORE installation!

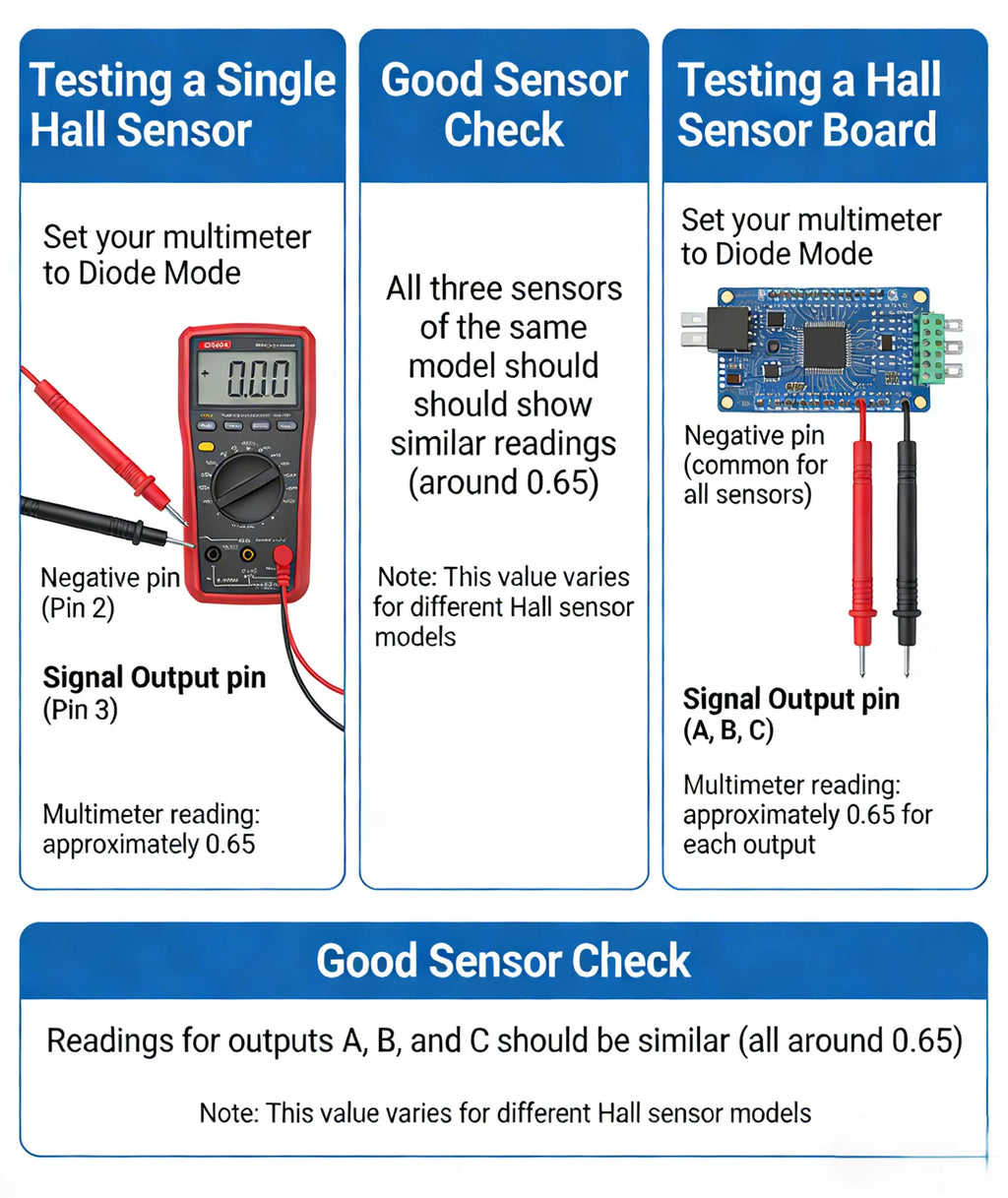

Correct Method to Measure Hall Sensor Functionality:
-
Testing a Single Hall Sensor:
Set your multimeter to Diode Mode.
Place the RED probe on the sensor's Negative pin (Pin 2).
Place the BLACK probe on the Signal Output pin (Pin 3).
The multimeter should display a reading of approximately 0.65.
Good Sensor Check: All three sensors of the same model should show similar readings (around 0.65). Note: This value varies for different Hall sensor models.
-
Testing a Hall Sensor Board:
Set your multimeter to Diode Mode.
Place the RED probe on the board's Negative pin (common for all sensors).
Place the BLACK probe sequentially on each Signal Output pin (A, B, C).
The multimeter should display a reading of approximately 0.65 for each output.
Good Sensor Check: Readings for outputs A, B, and C should be similar (all around 0.65). Note: This value varies for different Hall sensor models.
